When the Intelligent Obstacle Avoidance feature is enabled, the HORIZON 20 series will automatically scale the projected image to avoid obstacles in the projection area.
To enable Intelligent Obstacle Avoidance:

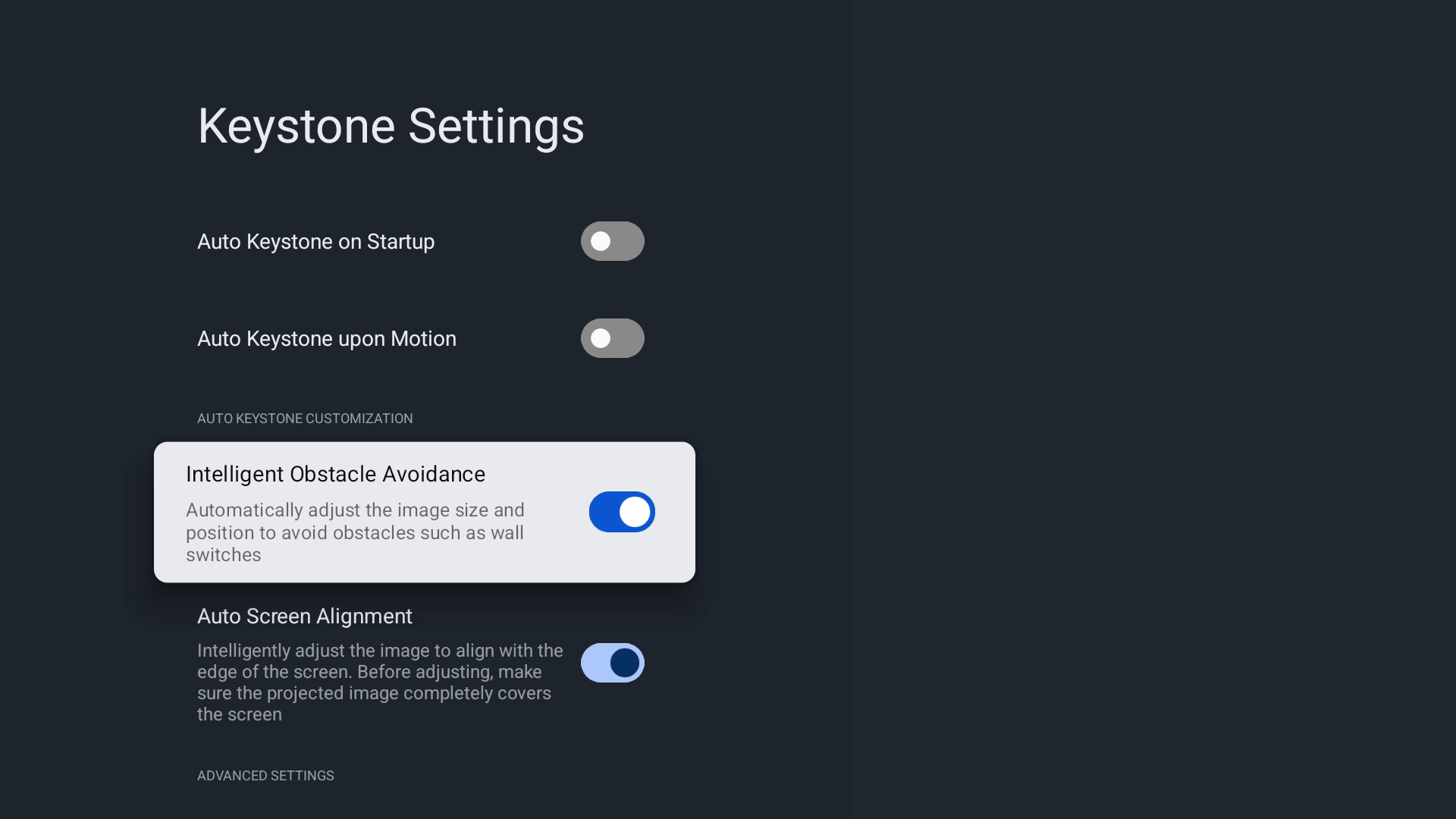

1. Press the “Settings” button on the XGIMI remote, go to "All Settings" -- "Projector" -- "Image Correction" -- "Keystone Settings", and enable "Intelligent Obstacle Avoidance".
2. If "Auto Keystone upon Motion" is also enabled, rotate the projector toward the target area. The system will automatically detect obstacles and adjust the image accordingly.
3. If "Auto Keystone upon Motion" is turned off, rotate the projector to the desired area, then press the “Settings” button, go to "All Settings" -- "Projector" -- "Image Correction", and select "Auto Keystone Correction" to trigger Intelligent Obstacle Avoidance.
4. For any further fine-tuning of the image after obstacle avoidance, select "Manual Keystone Correction" to adjust the four corners and the frame size.
Tips:
① Only obstacles within the coverage of the default image can be avoided.
② The target projection area must have sufficient space for keystone correction.
③ Do not use Intelligent Obstacle Avoidance on striped or patterned wallpapers.
④ Keep the majority of the projected image on the same wall surface.
⑤ Intelligent Obstacle Avoidance is not supported after Lens Shift.
