Image Rotation allows fine digital adjustment of image tilt.
---
Steps

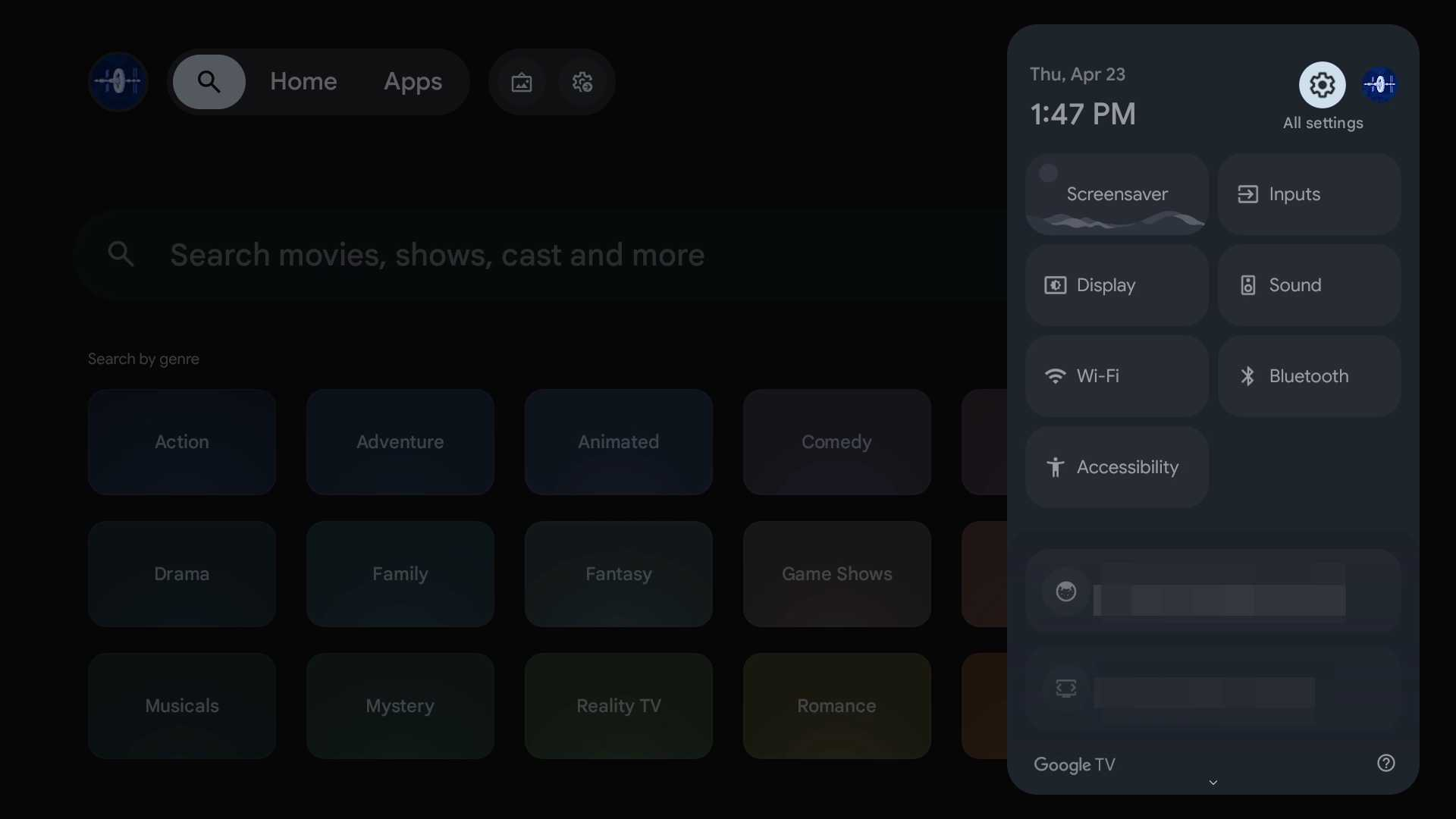

1. Press Settings to open Quick Settings. Select All Settings.

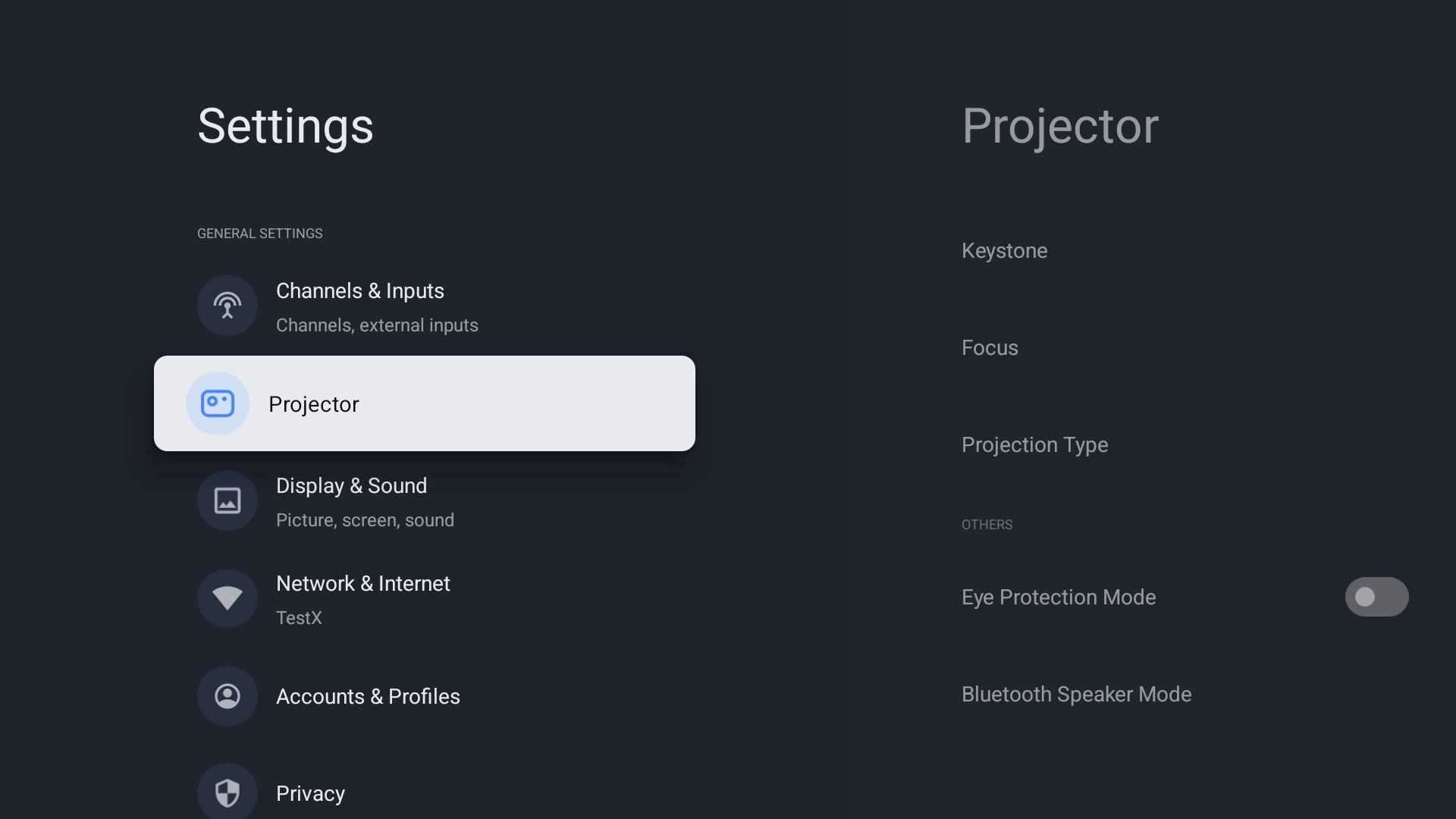

2. Navigate to: Projector > Keystone

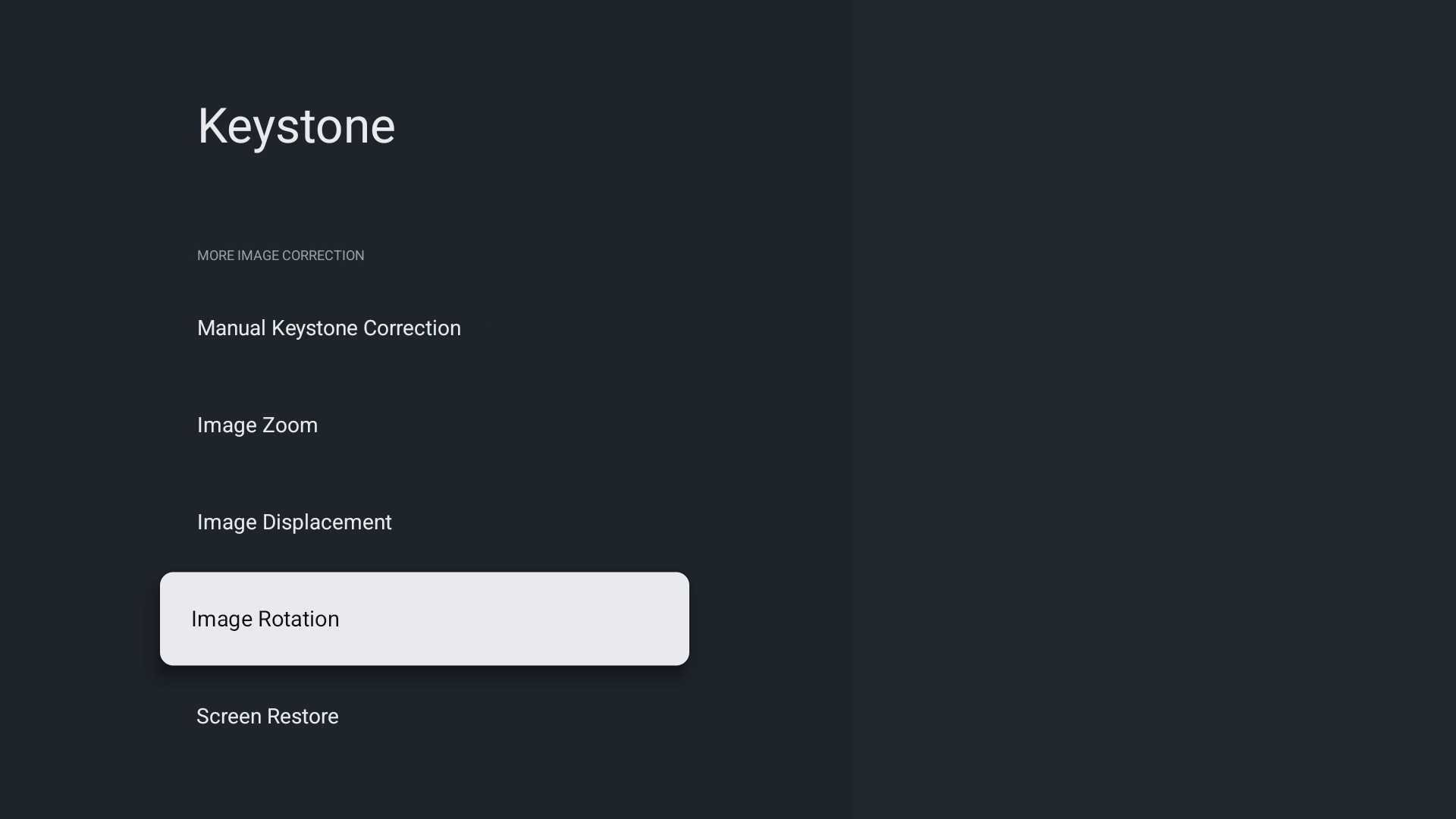

3. Select Image Rotation

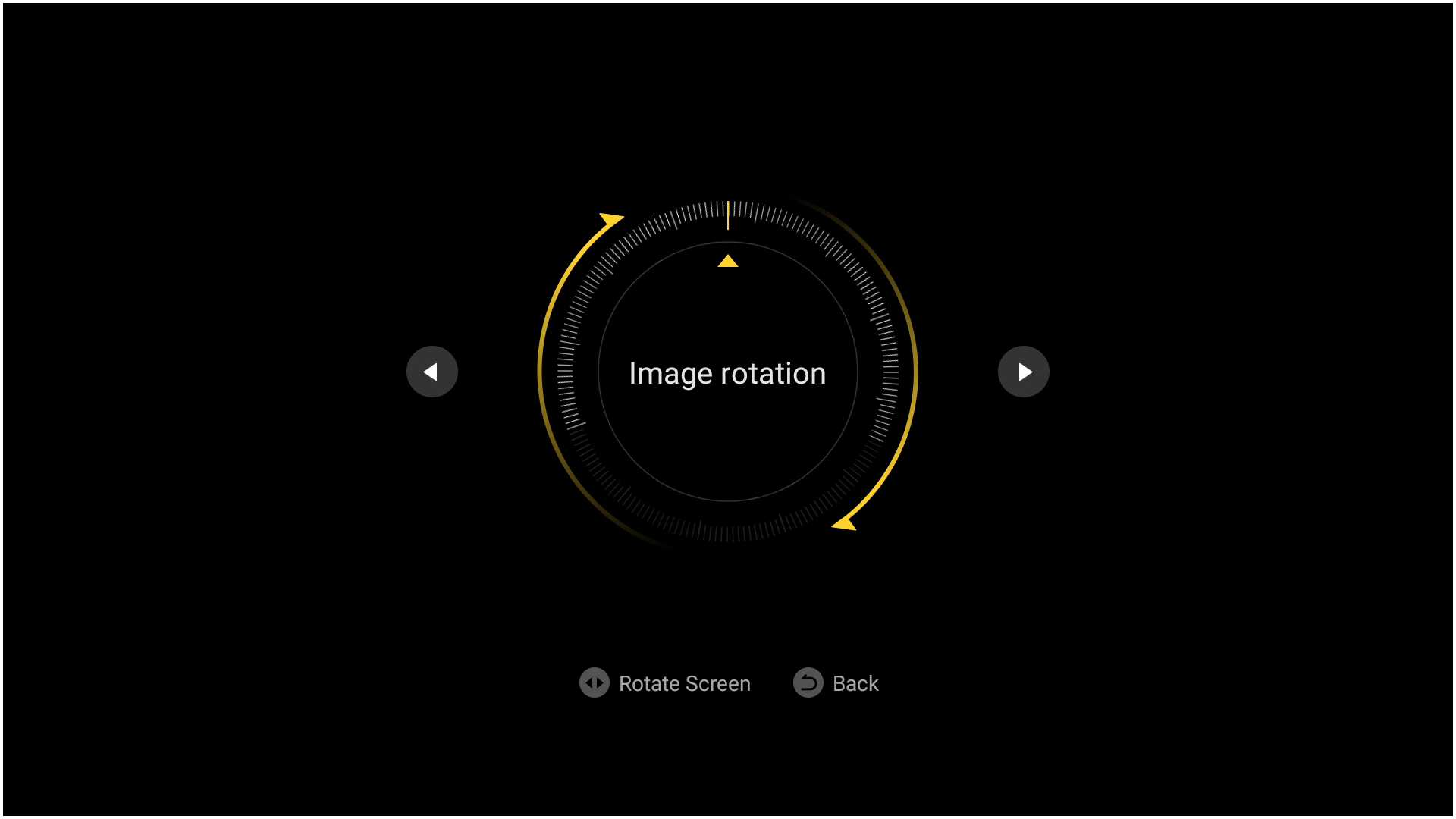

4. Use the left and right directional buttons to rotate the image.

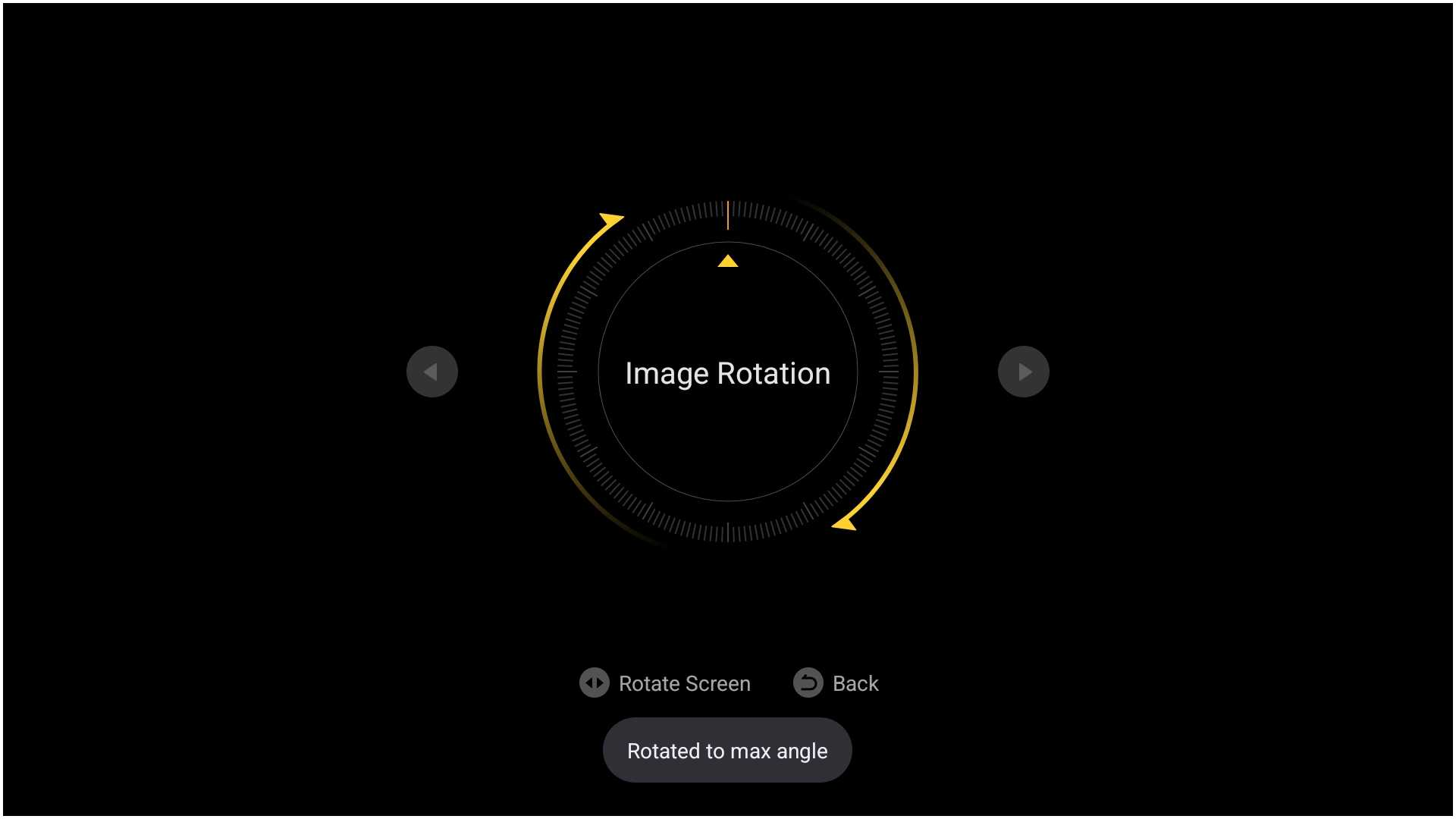

When the adjustment limit is reached, the corresponding direction will become unavailable.
---
Notes
- Image Rotation is intended for fine-tuning only.
- Large alignment issues should be corrected by repositioning the projector.
- Since this is a digital adjustment, it operates within the available keystone correction range.
