Keystone Calibration should only be used to repair abnormal Auto Keystone behavior.
---
Before You Begin

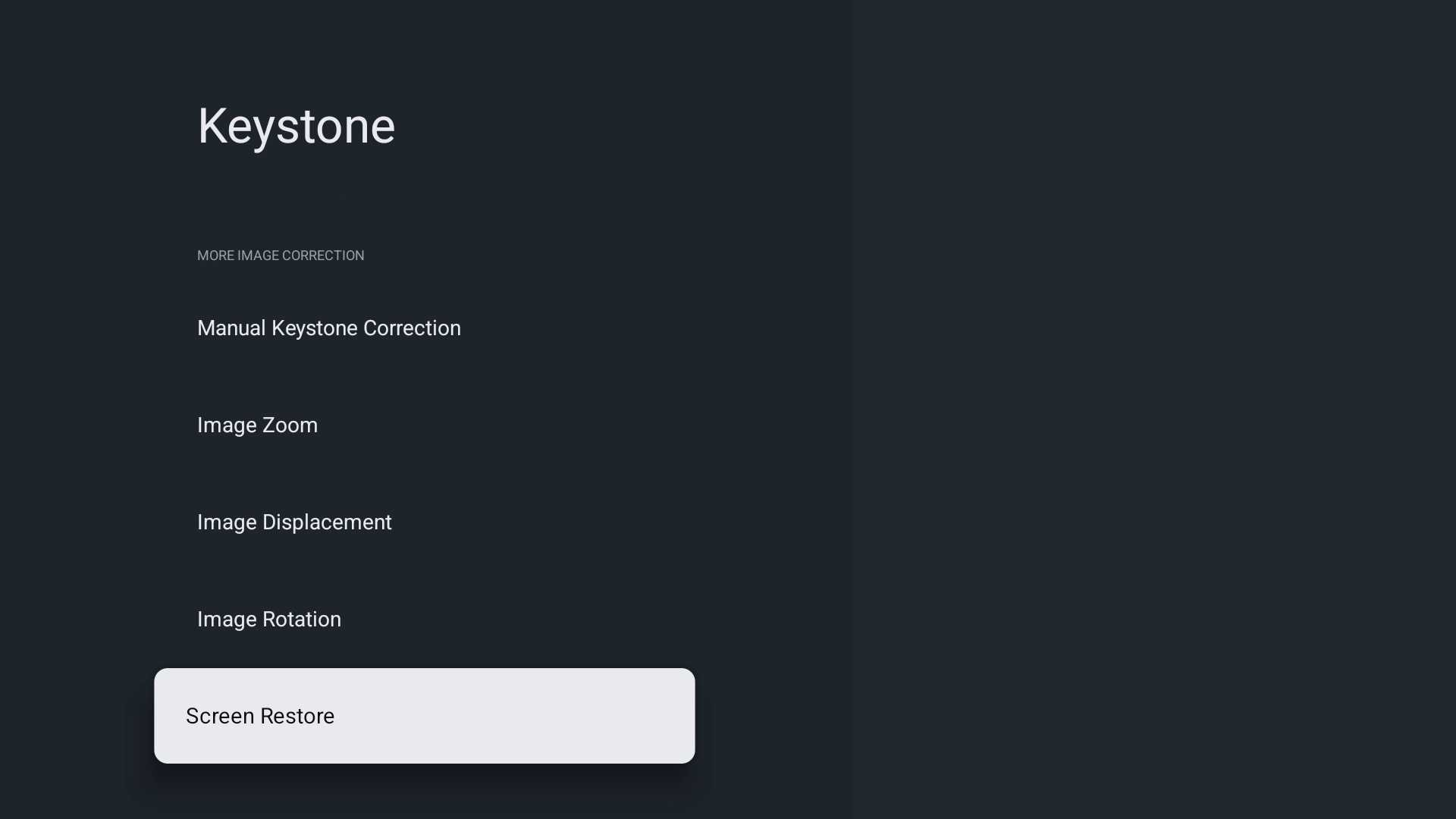

1. Restore the image using: Projector > Keystone > Screen Restore

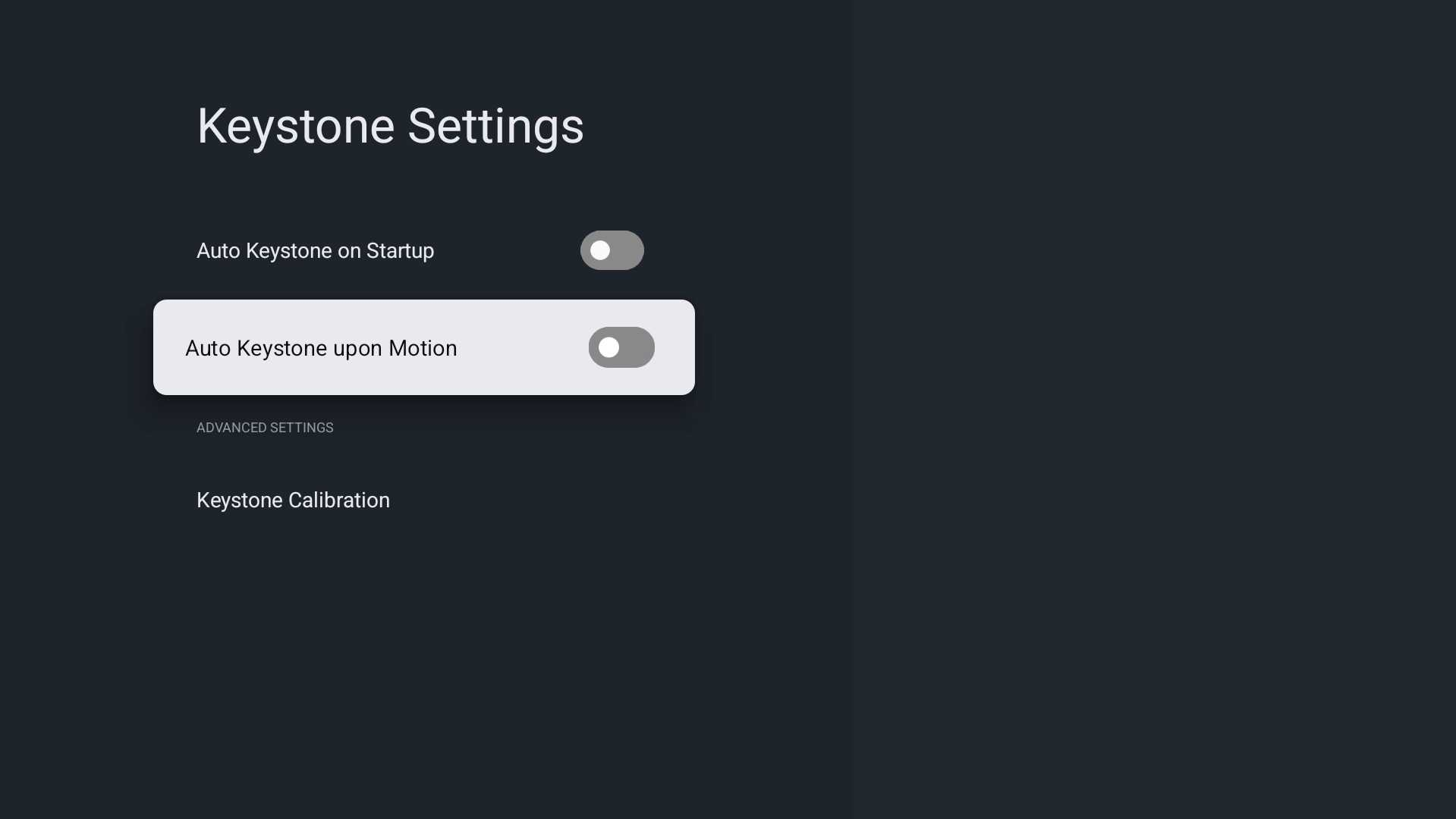

2. Disable: Projector > Keystone > Keystone Settings > Auto Keystone Upon Motion
3. Place the projector:
- On a level surface
- Approximately 2 m (6.5 ft) from a white wall
- Front-facing (not side projection)
- Not ceiling-mounted
4. Physically adjust the projector until the image forms a perfect rectangle.
---
Calibration Procedure

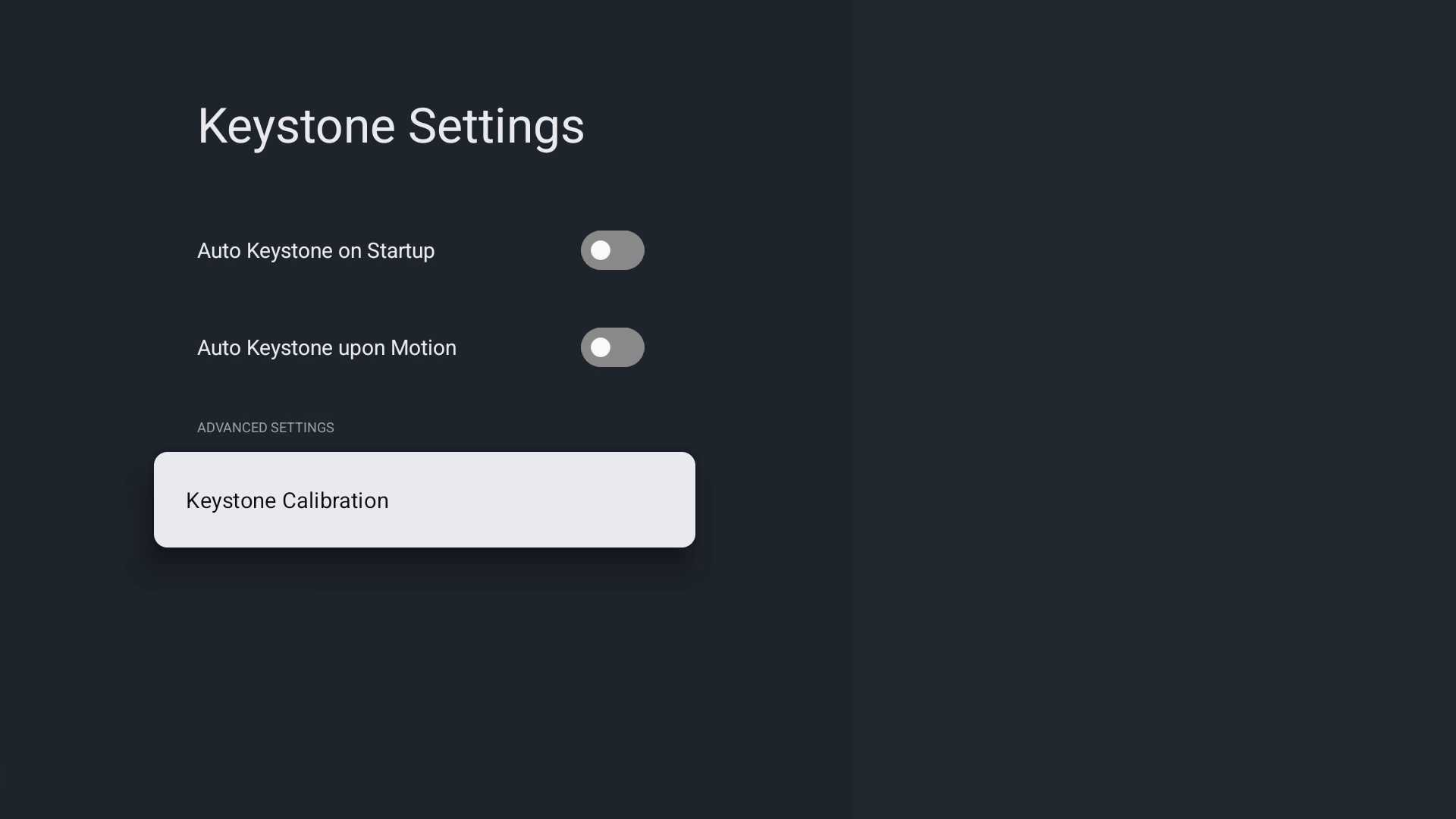

1. Navigate to: Projector > Keystone > Keystone Settings > Keystone Calibration

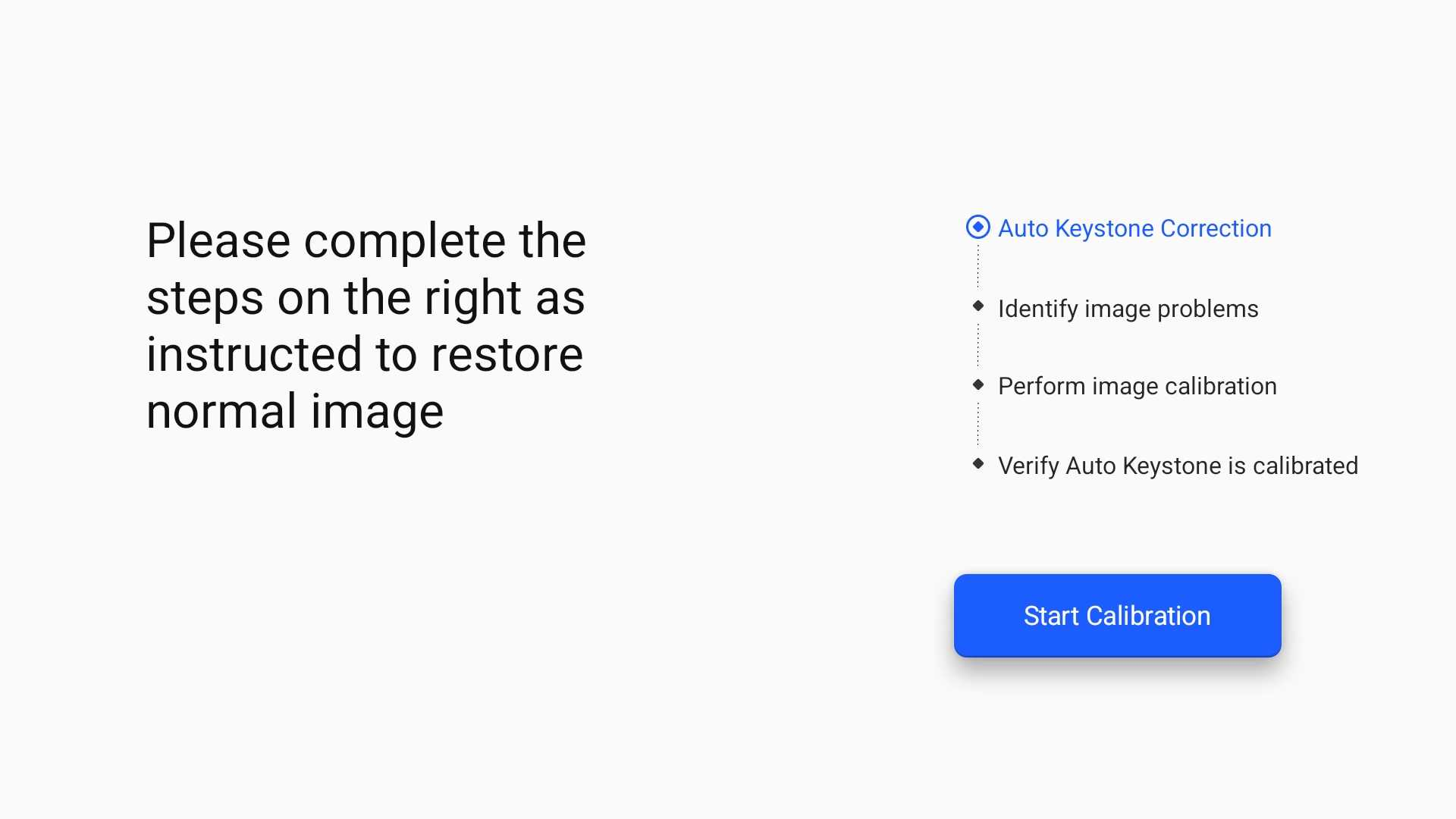

2. Follow the on-screen instructions.
3. Ensure the image appears as a perfectly level rectangle before confirming calibration.
---
Important
The calibration process teaches the projector what a correct rectangle should look like. If calibration is performed on a misaligned image, Auto Keystone performance may become worse.
