When enabled, the projector automatically resizes the image to avoid obstacles within the projection area during Auto Keystone Correction.

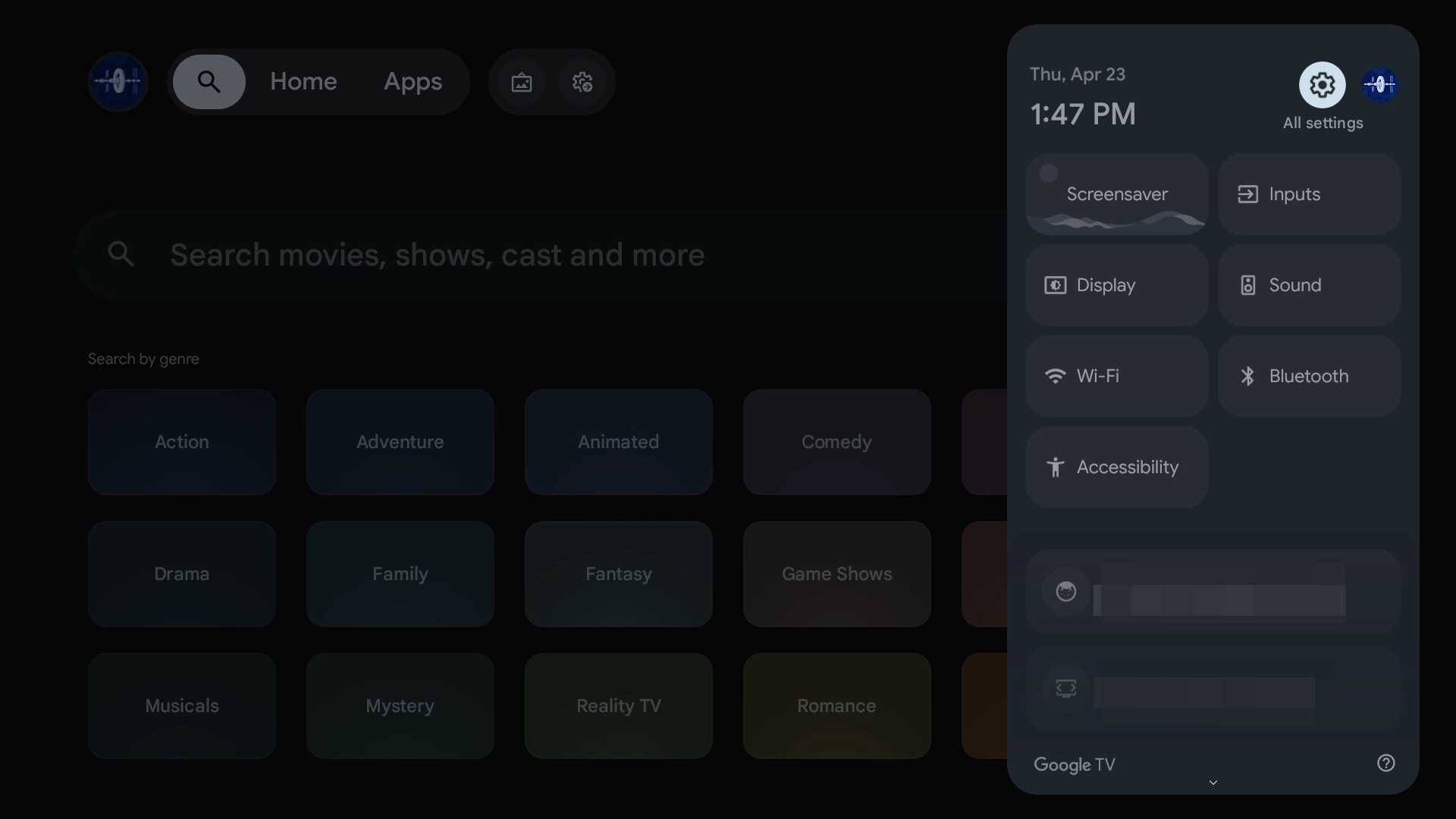

1. Press the Settings button on the remote control to open Quick Settings, then select All Settings.

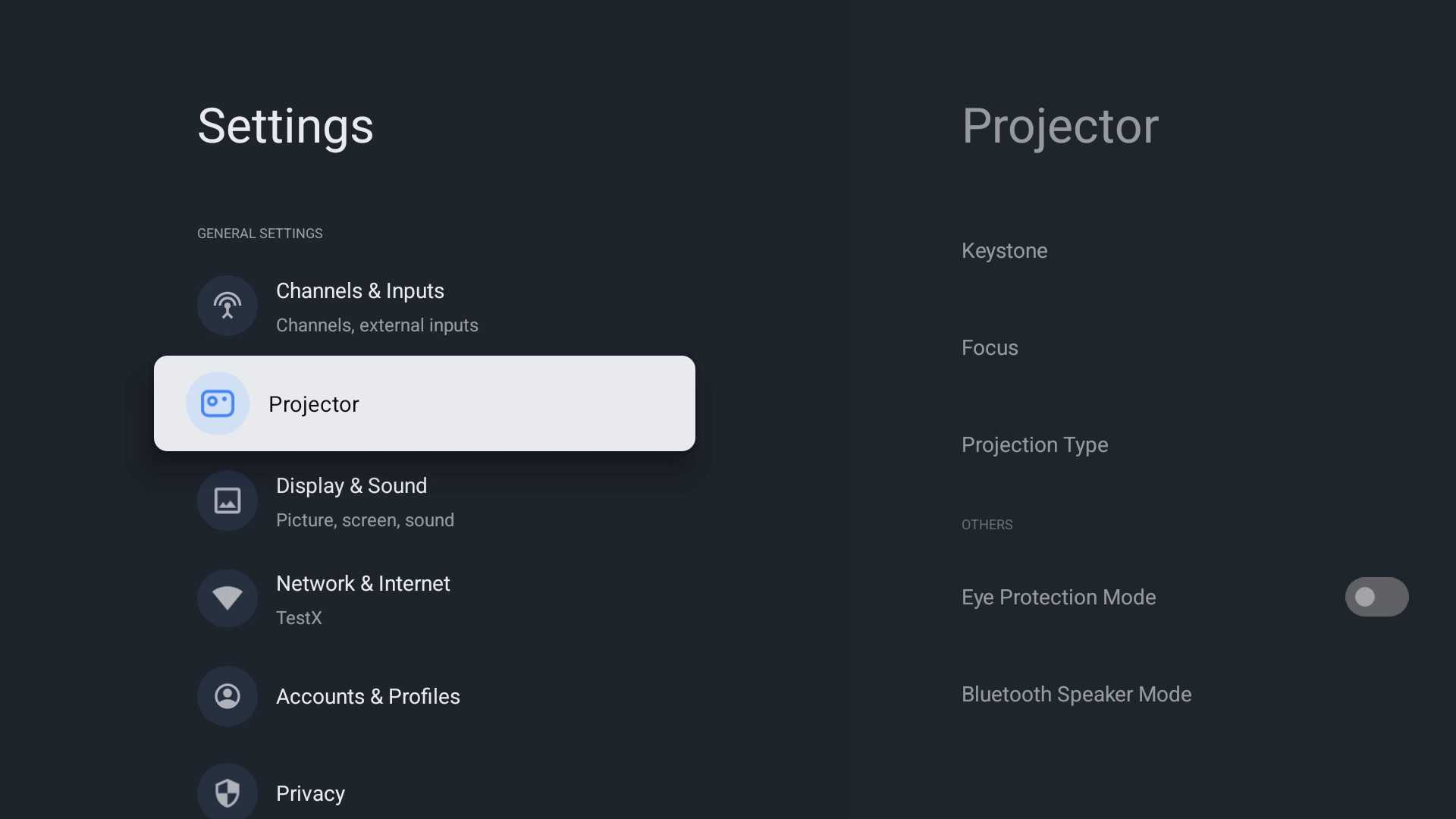

2. Go to: Projector > Keystone

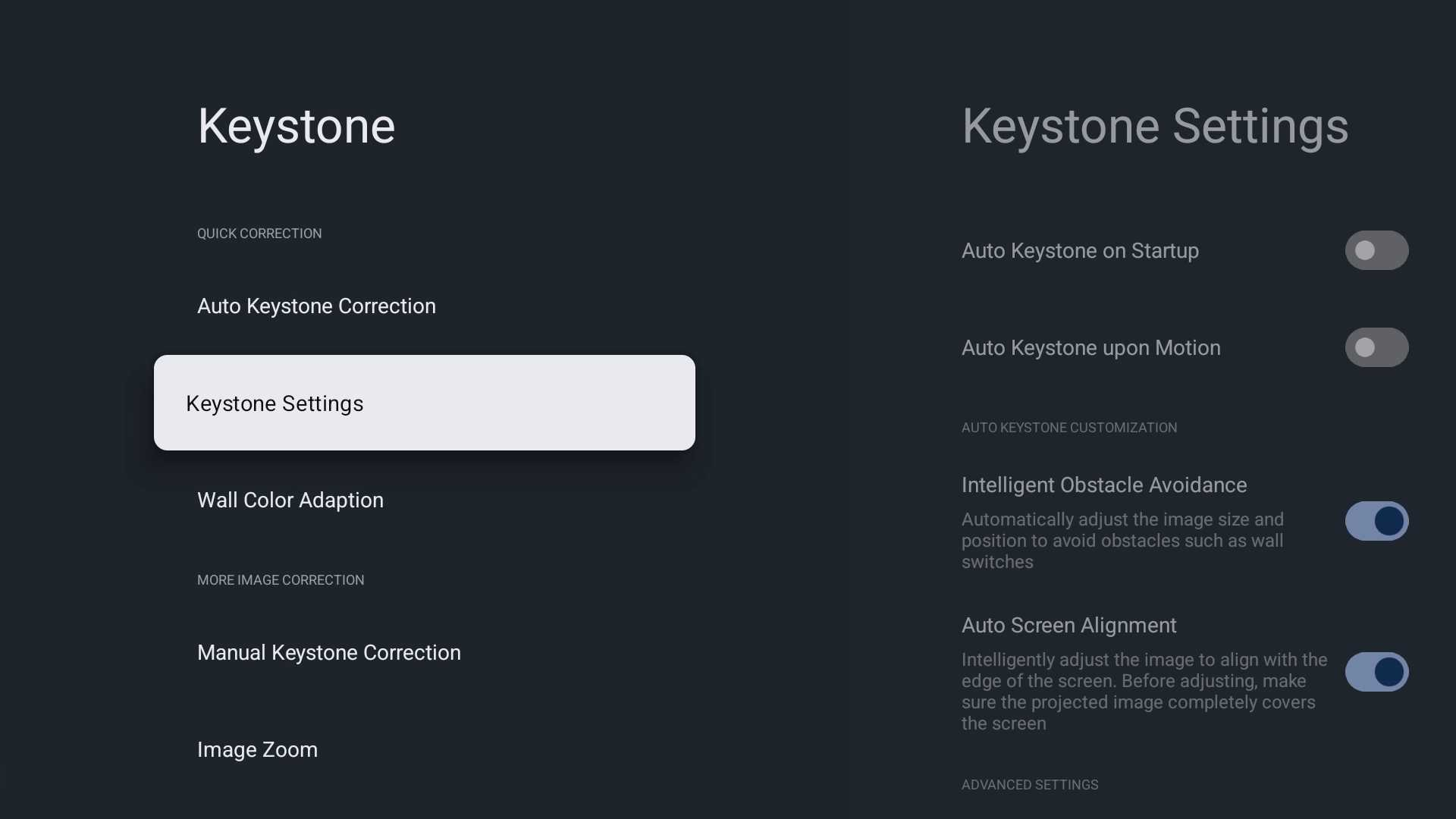

3. Select Keystone Settings

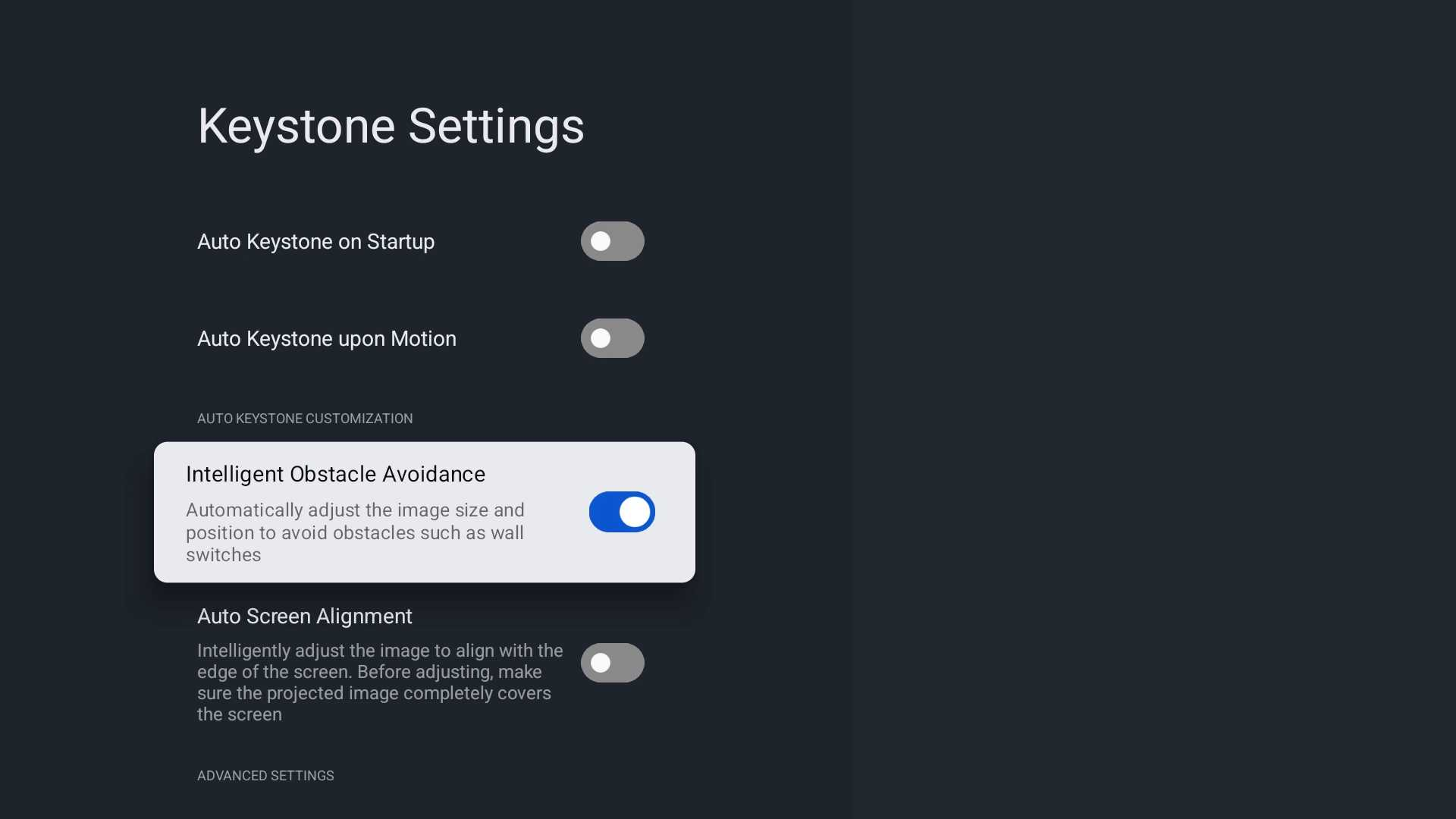

4. Turn on Intelligent Obstacle Avoidance
---
How to use:
- If Auto Keystone upon Motion is ON: Move the projector → The system detects obstacles and adjusts automatically.

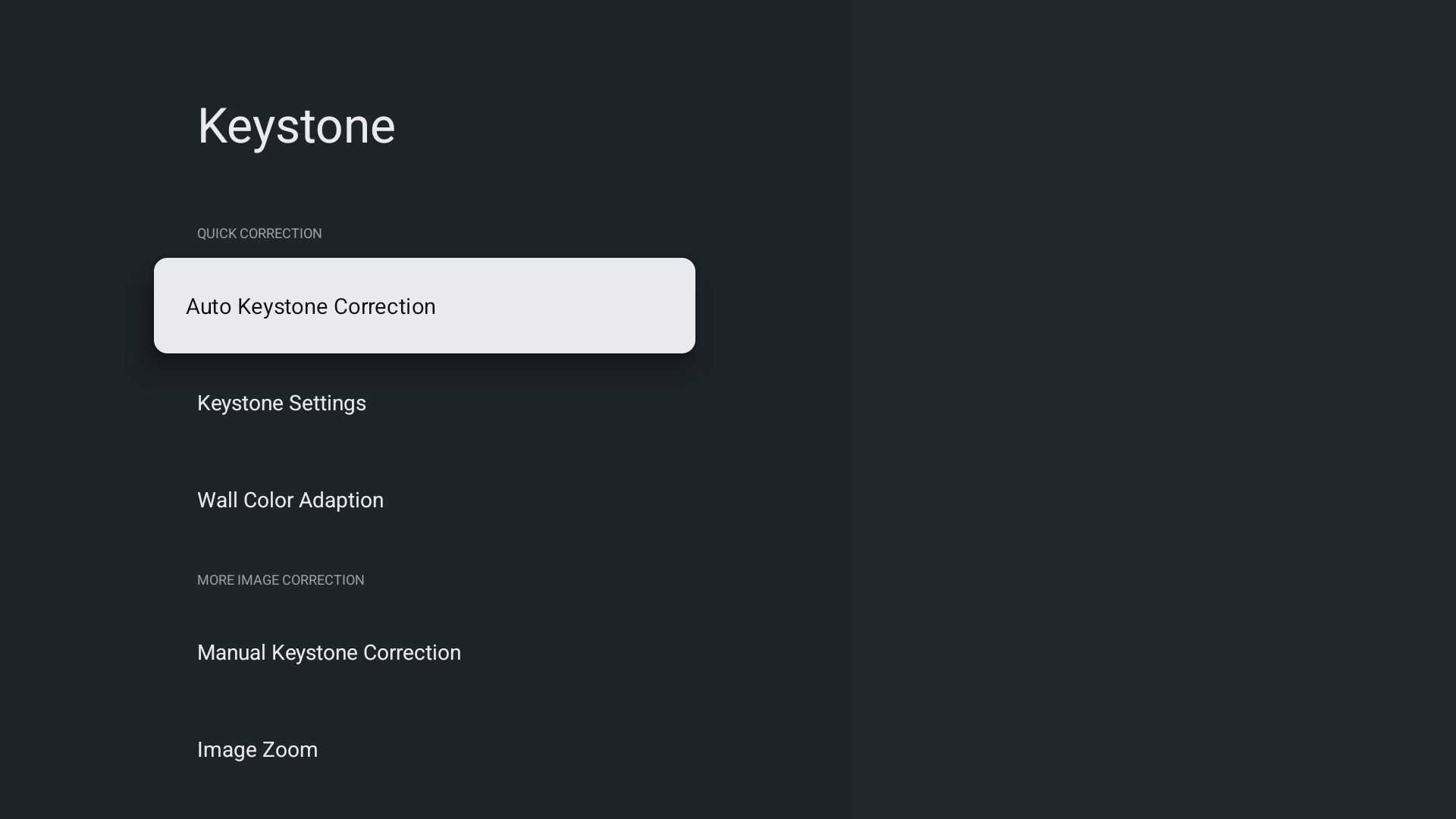

- If Auto Keystone upon Motion is OFF: 1. Position the projector. 2. Go to: Projector > Keystone > Auto Keystone Correction
- If you need to further fine-tune the projected image after obstacle avoidance, select Manual Keystone Correction to adjust the image.
---
Notes
- Only obstacles within the default projection area can be avoided.
- Obstacles in the center of the image cannot be avoided.
- Ensure sufficient space for keystone adjustment.
- Avoid using this feature on patterned or striped walls.
- Best results when projecting on a single flat wall.
