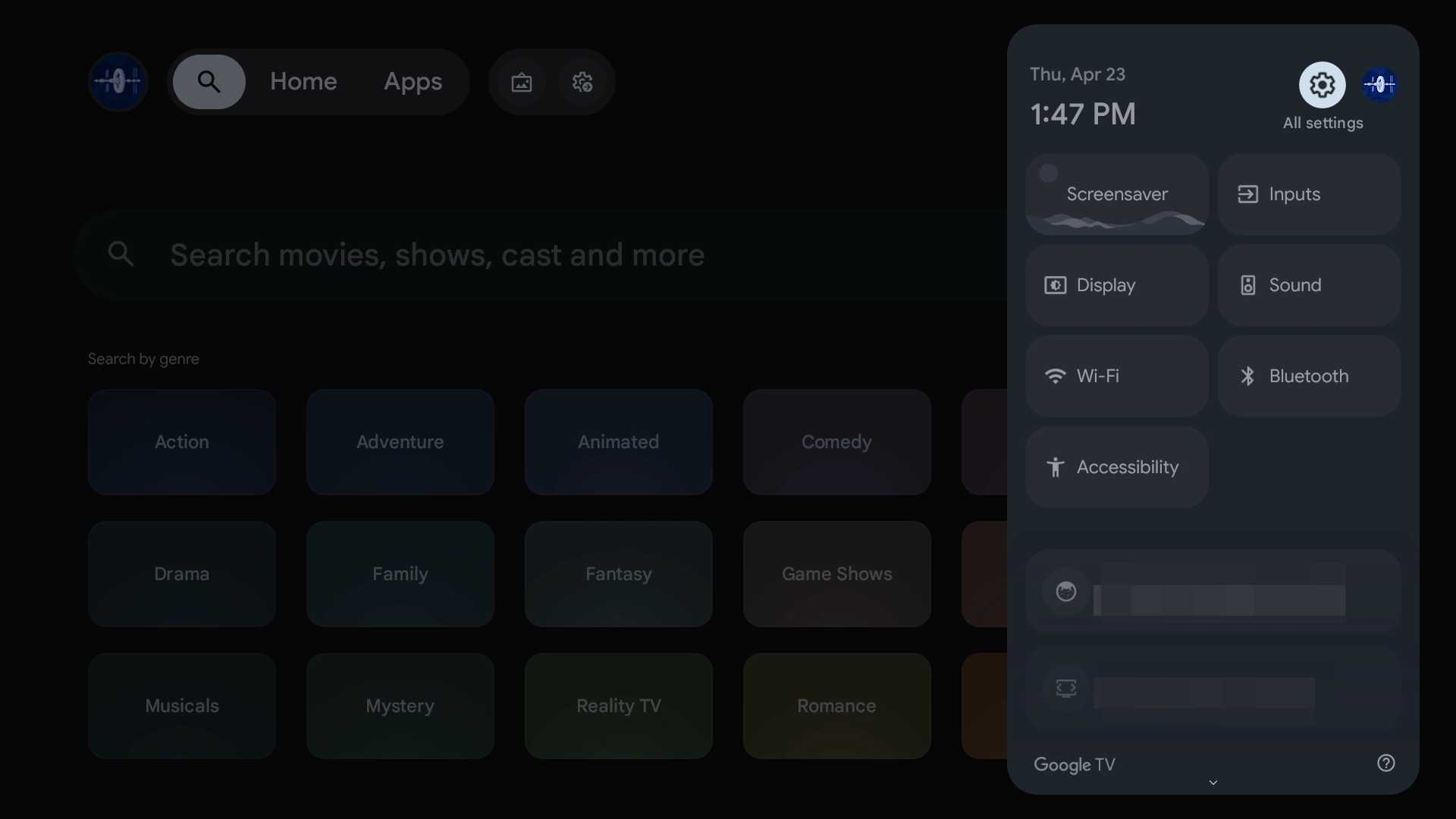

1. Press the Settings button on the remote control to open Quick Settings, then select All Settings.

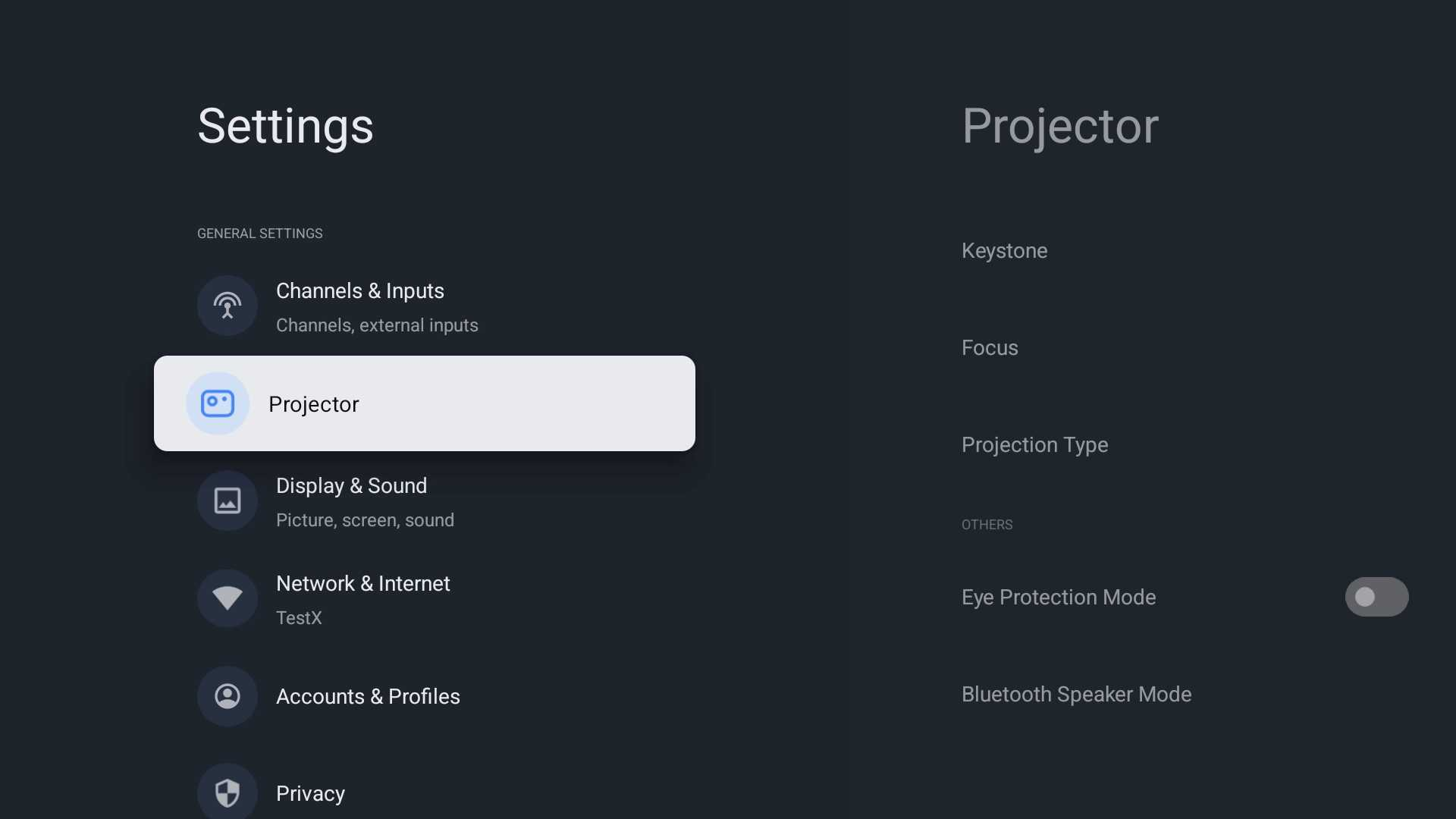

2. Go to: Projector > Keystone

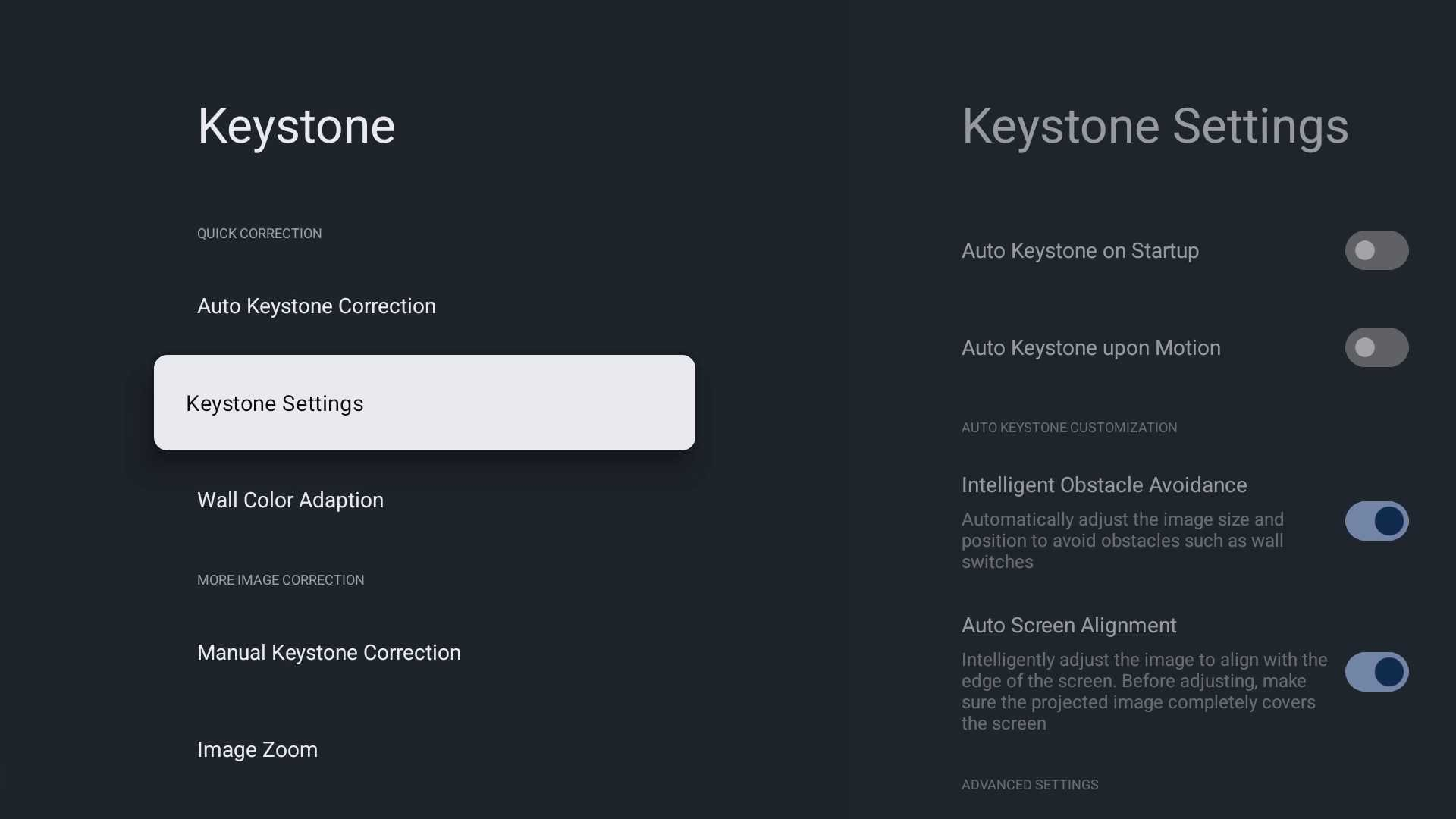

3. Select Keystone Settings

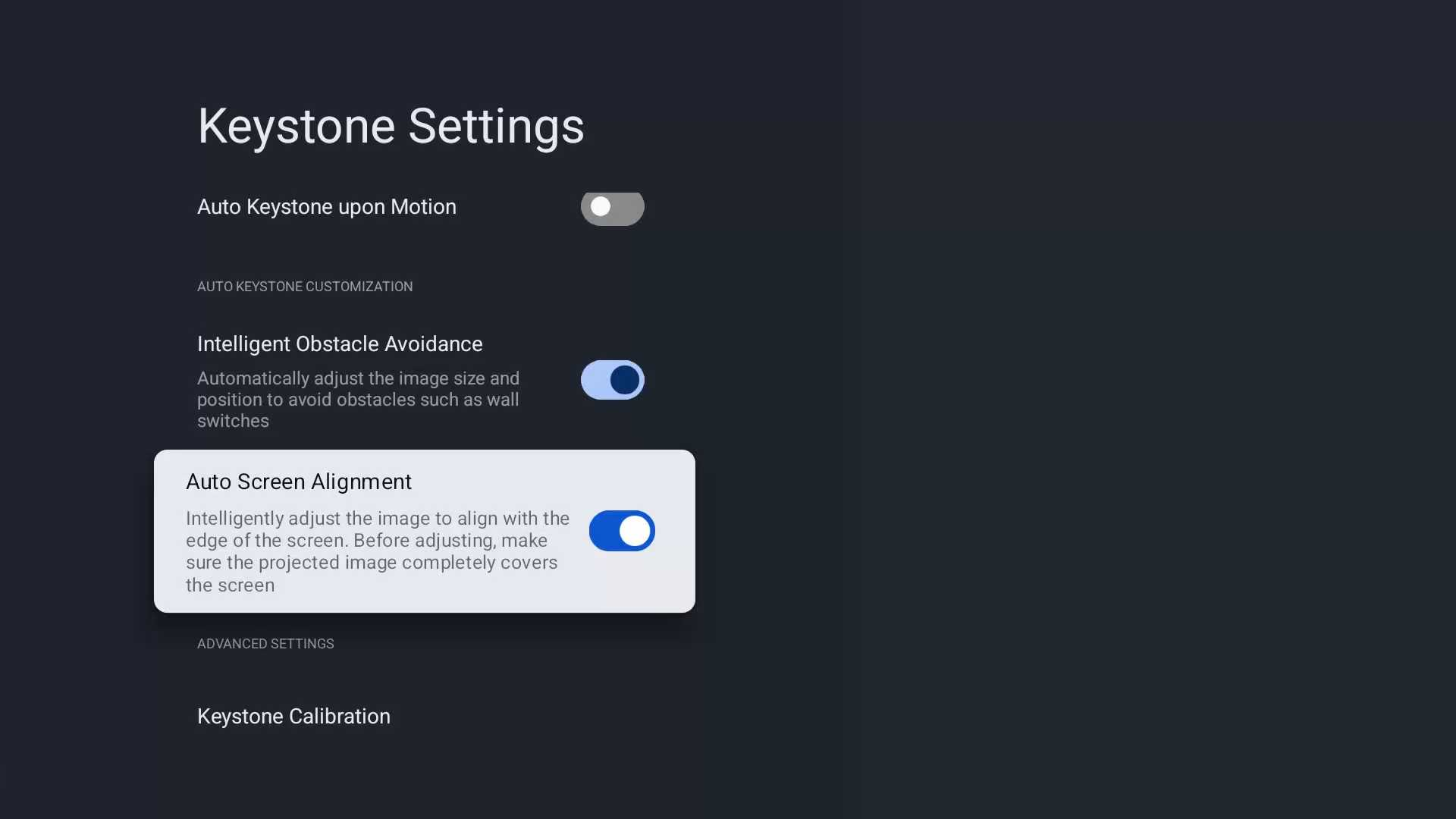

4. Enable Auto Screen Alignment
---
How to use:
- If Auto Keystone upon Motion is ON: Adjust the projector position until the image fully covers the screen. Alignment will occur automatically.

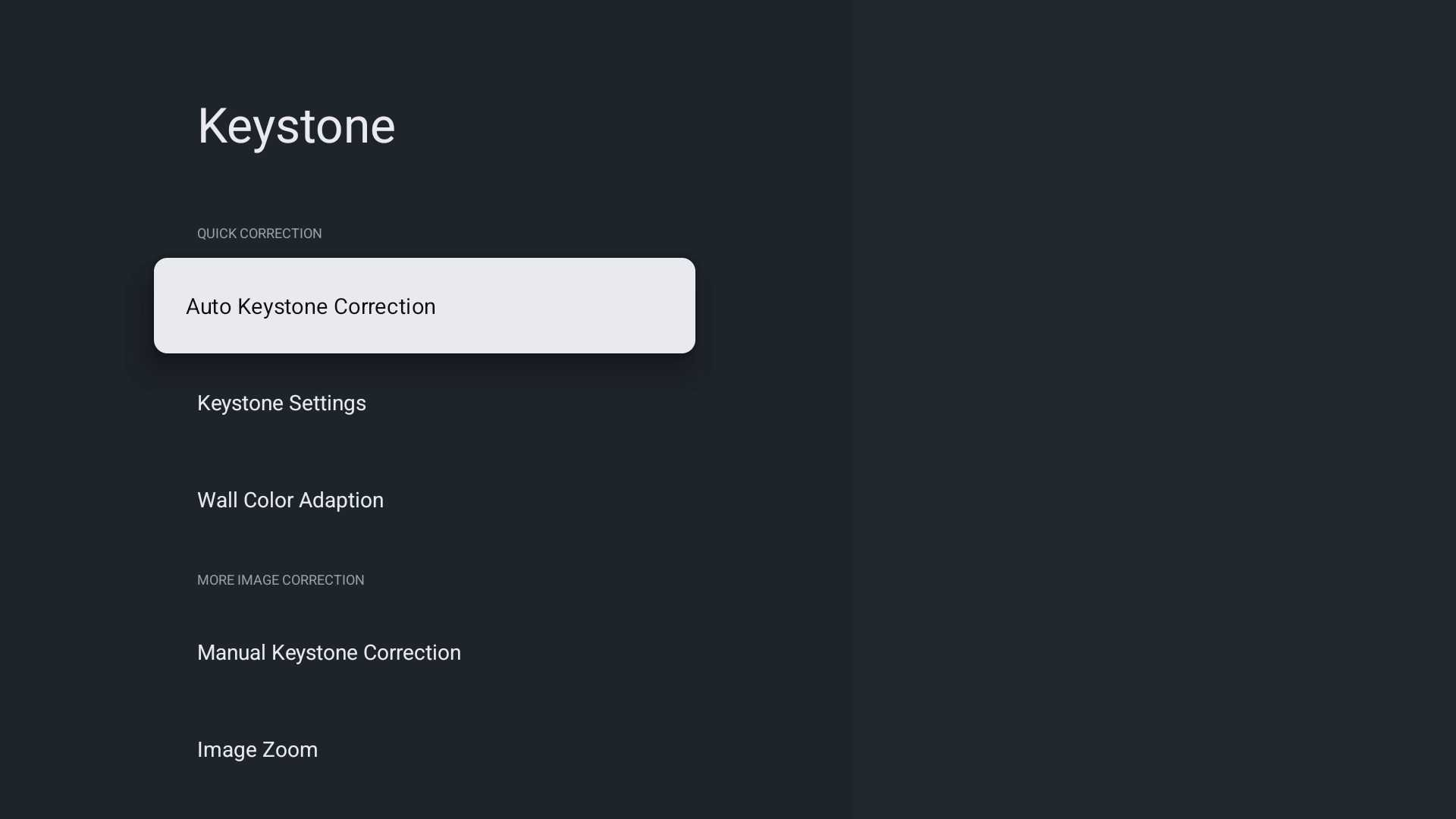

- If Auto Keystone upon Motion is OFF: 1. Adjust the projector position until the image fully covers the screen. 2. Go to: Projector > Keystone > Auto Keystone Correction.
- If you need to further fine-tune the projected image after screen alignment, select Manual Keystone Correction to adjust the image.
---
Notes
- The default projection image must fully cover the screen
- Projections cannot be performed from a distance too far from the screen. The projected image displayed on the screen must cover an area greater than half the size of the digital projector's default image area.
- The screen must have a black border
