The Image Displacement feature allows you to digitally reposition the projected image using the remote control.
---
Steps

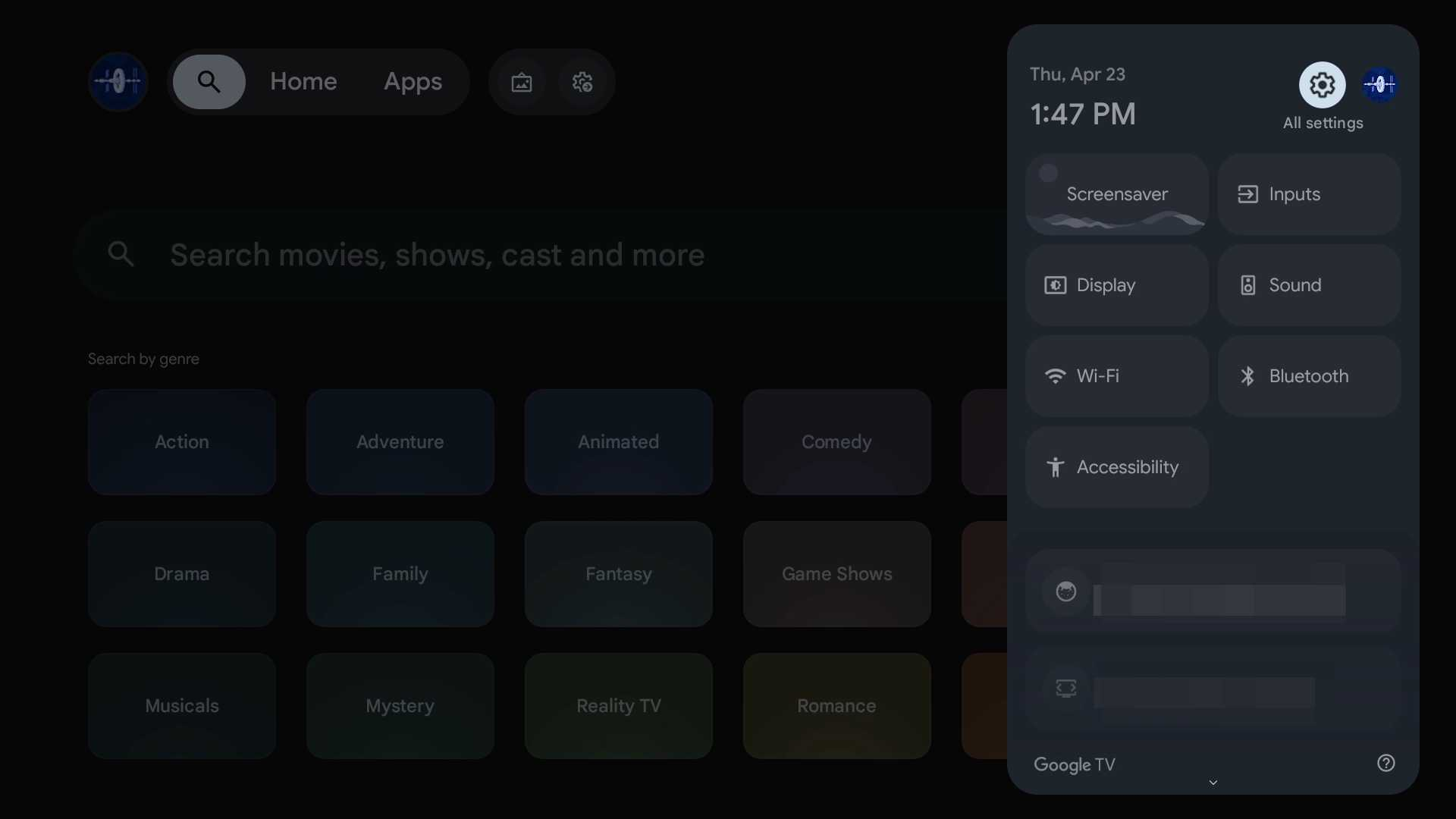

1. Press Settings on the remote to open Quick Settings. Select All Settings.

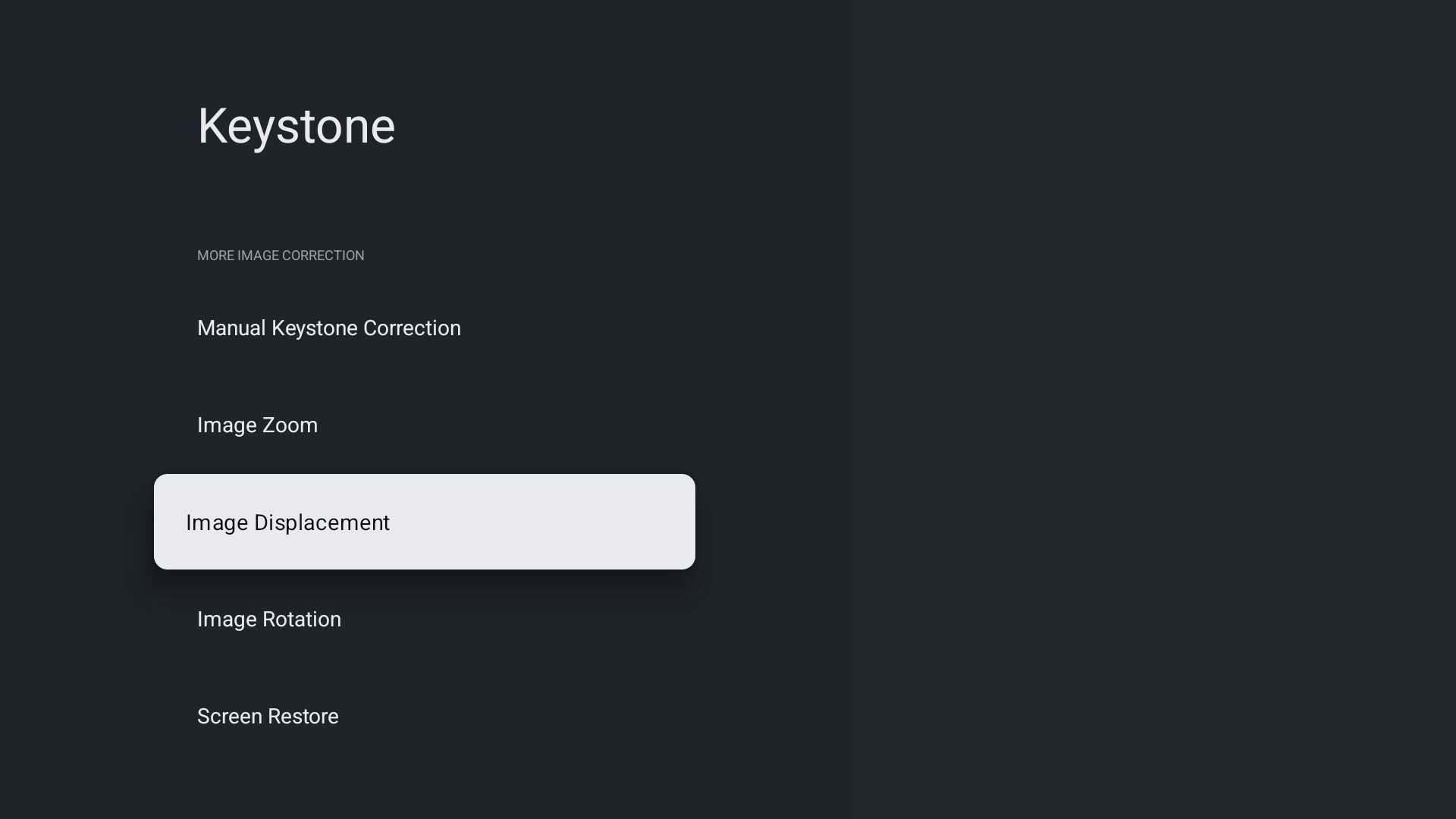

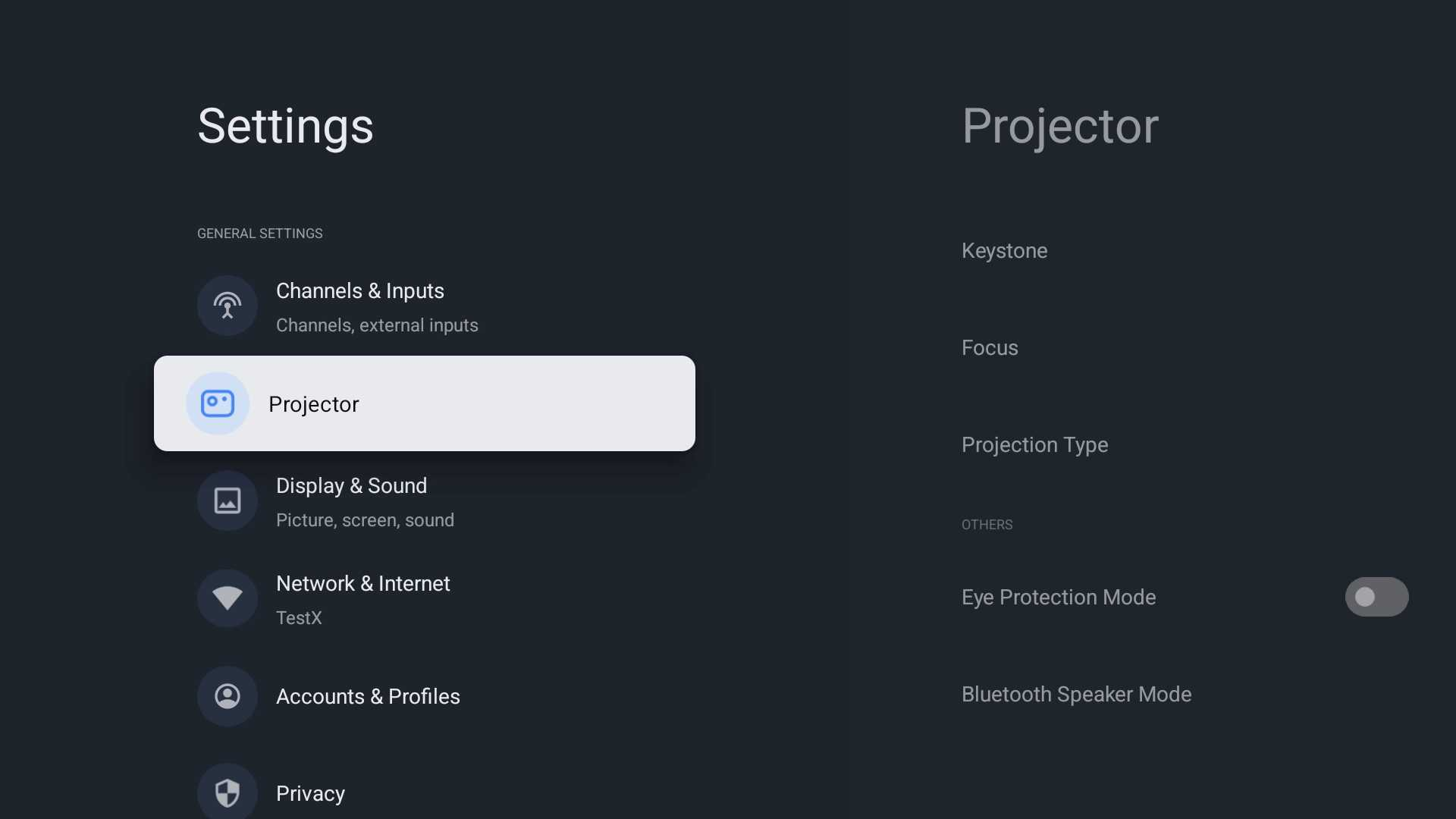

2. Go to: Projector > Keystone
3. Select Image Displacement

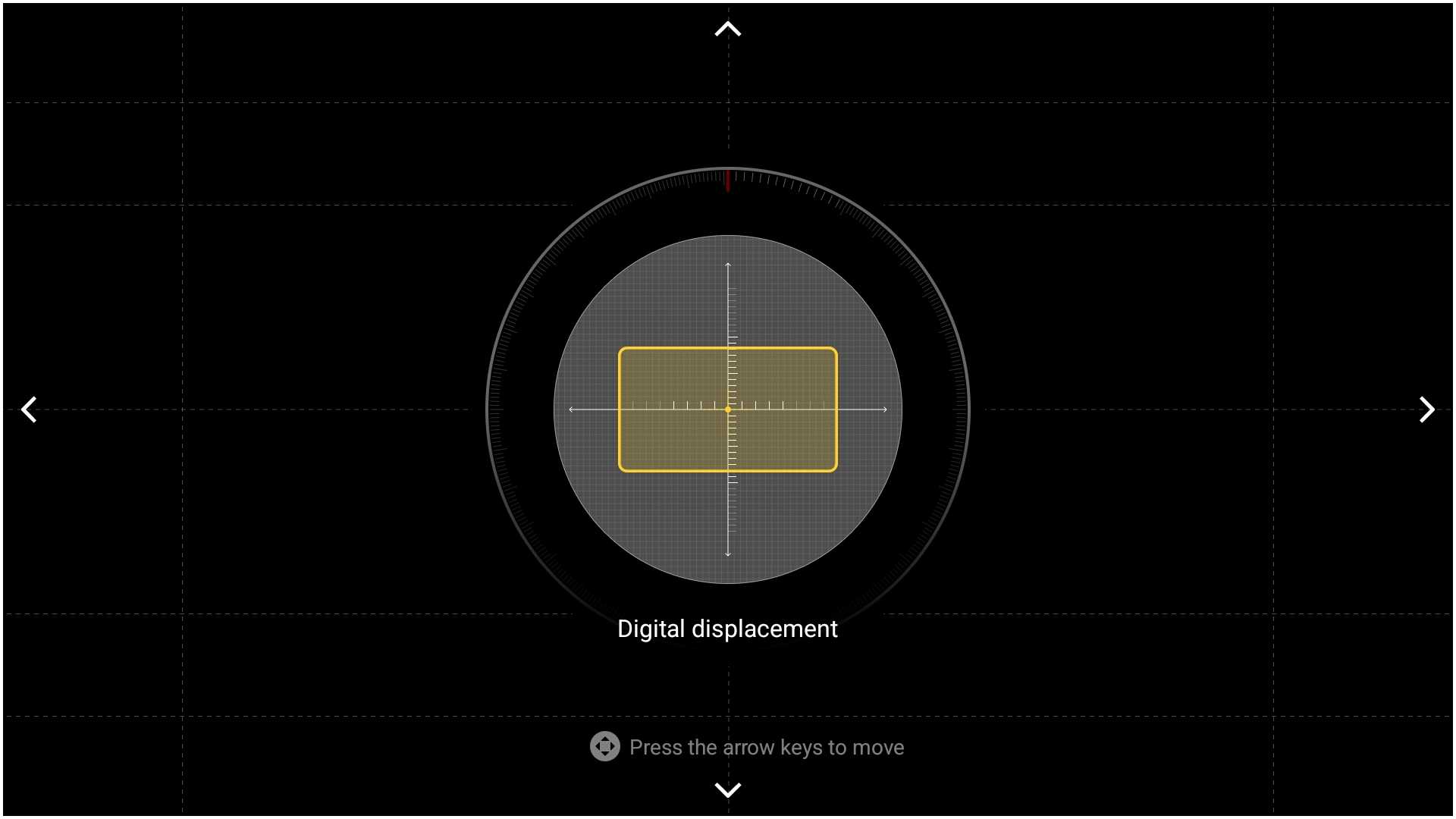

4. Use the directional buttons on the remote to move the image.

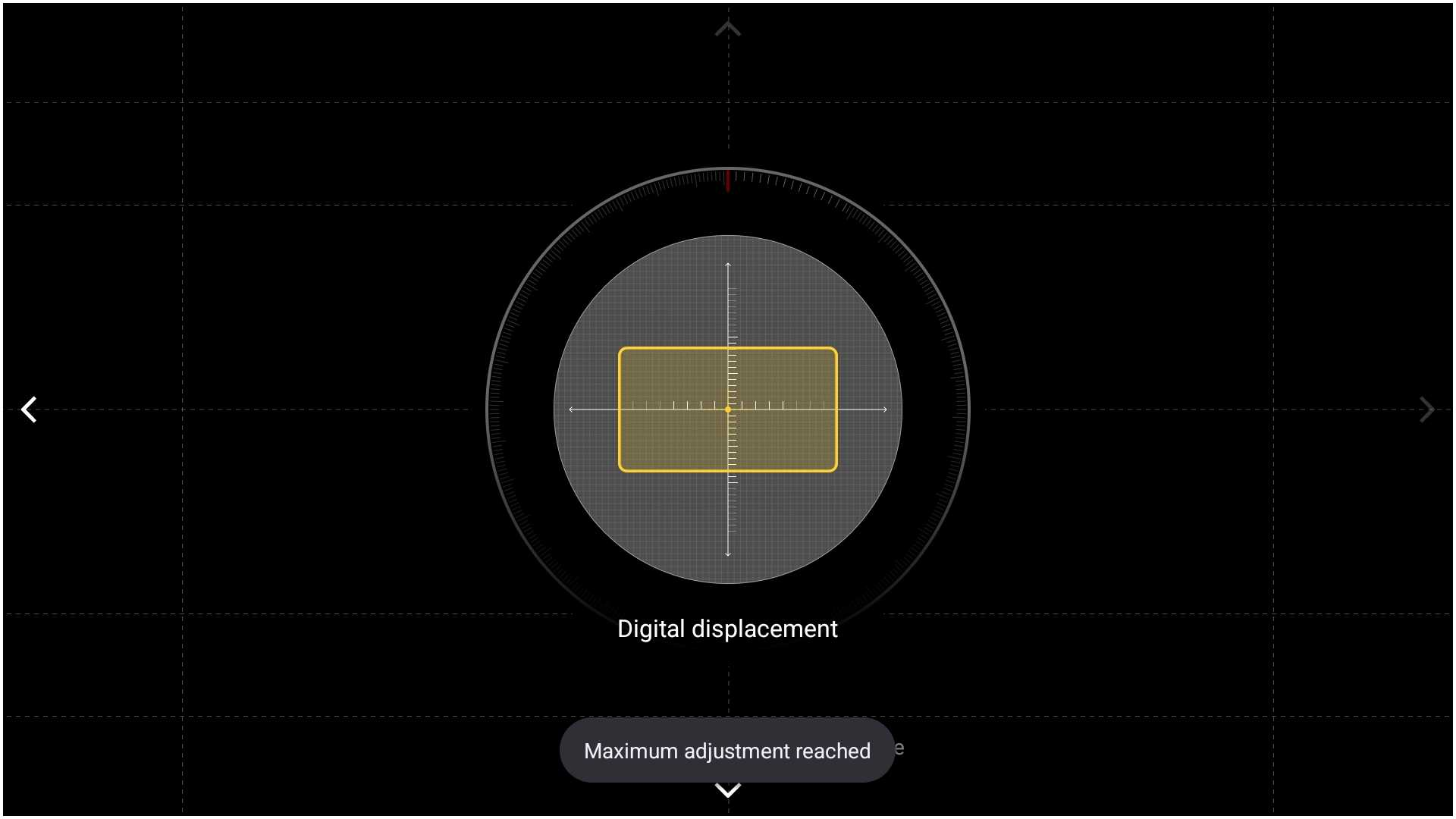

When the adjustment limit is reached in a particular direction, the corresponding on-screen arrow will become grayed out.
---
Notes
- Image Displacement is a digital correction feature and operates only within the available keystone correction range.
- If additional adjustment is required, reposition the projector physically.
- If the image is already at its default position, all directional arrows will appear grayed out and no adjustment will be available.
