When enabled, the projector automatically resizes the image to avoid obstacles within the projection area during Auto Keystone Correction.
1. Press Settings.

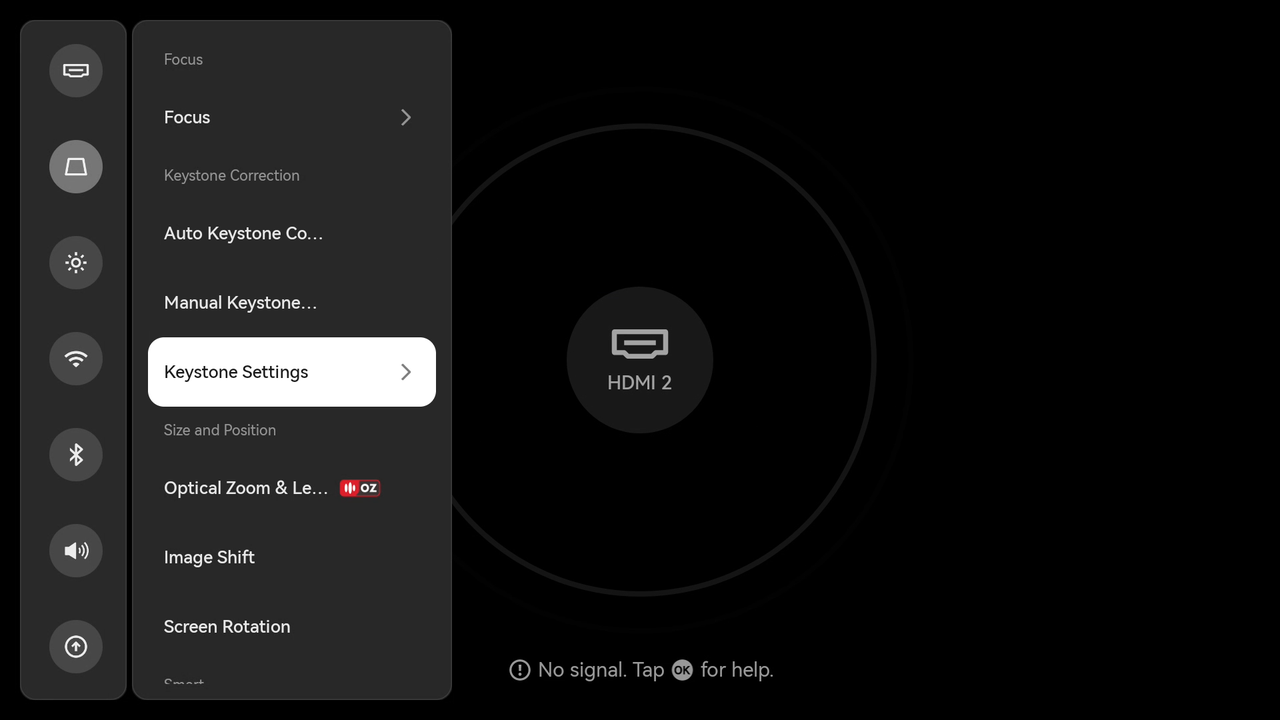

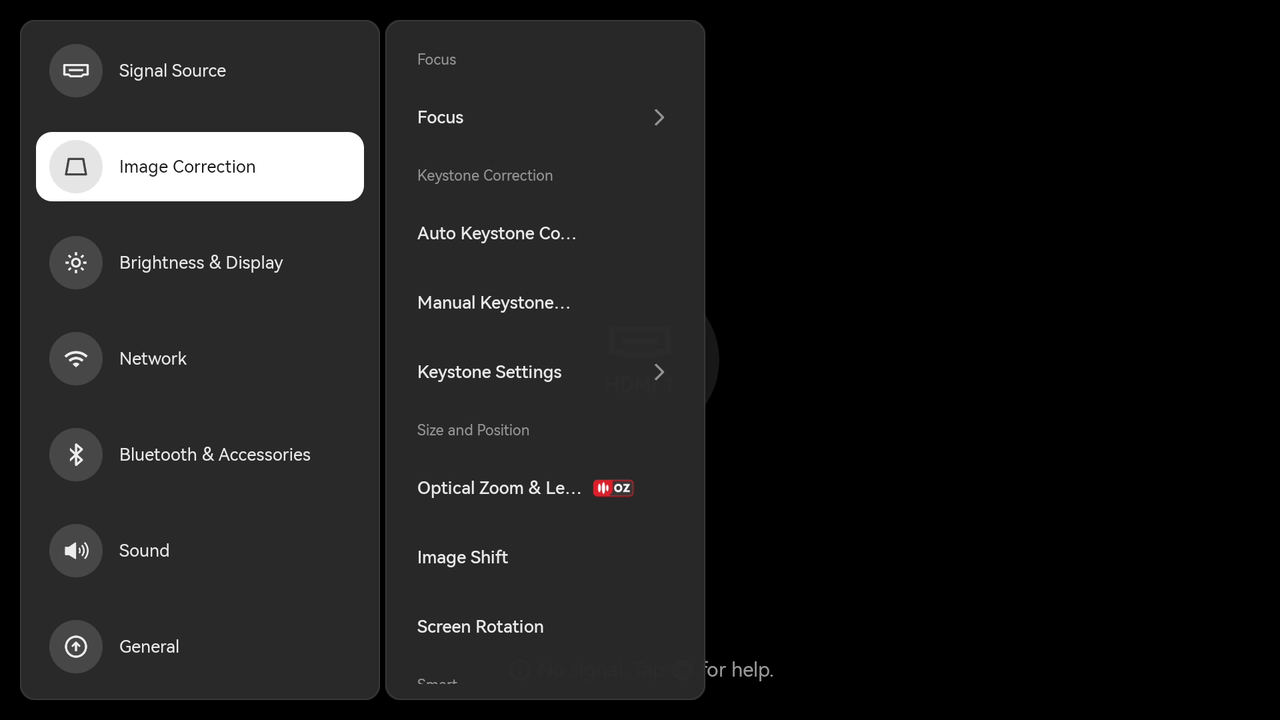

2. Go to: Image Correction > Keystone Settings

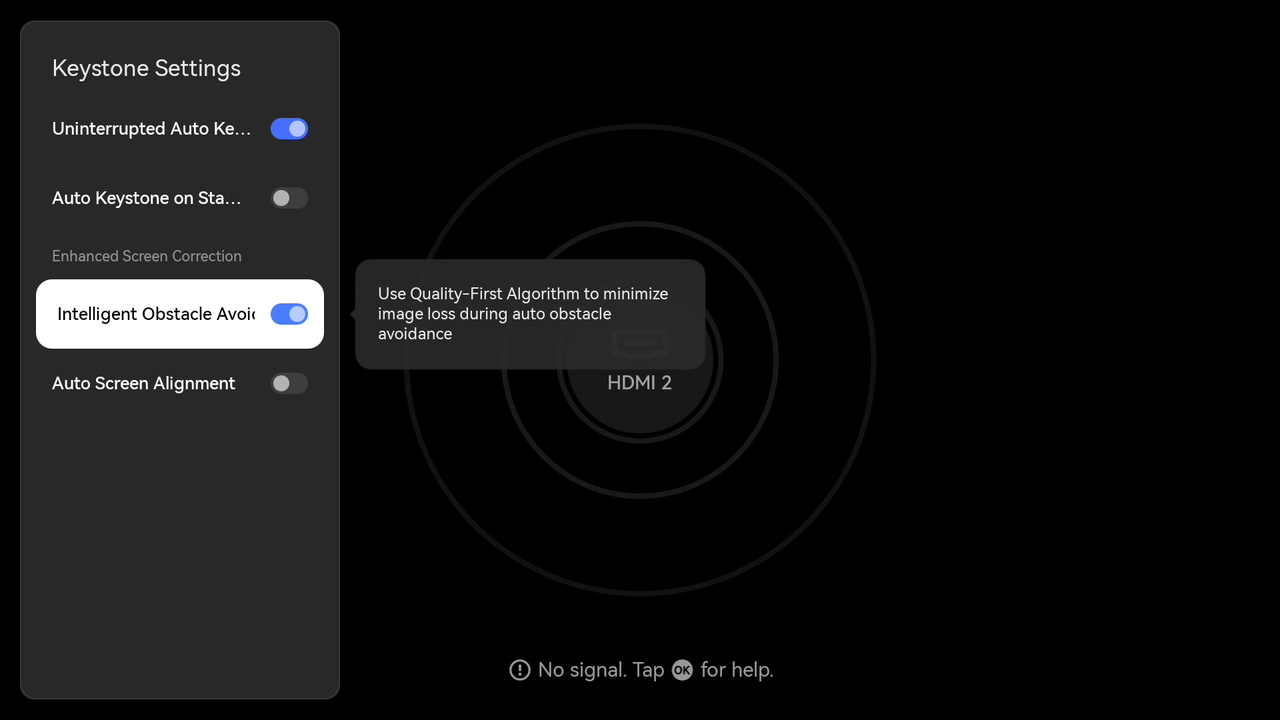

3. Turn on Intelligent Obstacle Avoidance
How to use:
- If Uninterrupted Auto Keystone Correction is ON:
- Move the projector → The system detects obstacles and adjusts automatically.
- If OFF:
- Position the projector
- Go to: Image Correction > Auto Keystone Correction
- If you need to further fine-tune the projected image after obstacle avoidance, select Manual Keystone Correction to adjust the image.
Notes:
- Only obstacles within the default projection area can be avoided.
- Obstacles in the center of the image cannot be avoided.
- Ensure sufficient space for keystone adjustment.
- Avoid using this feature on patterned or striped walls.
- Best results when projecting on a single flat wall.
