Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector?

Related to:

Vivian
Updated
Yes.
01Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector.png

Steps:

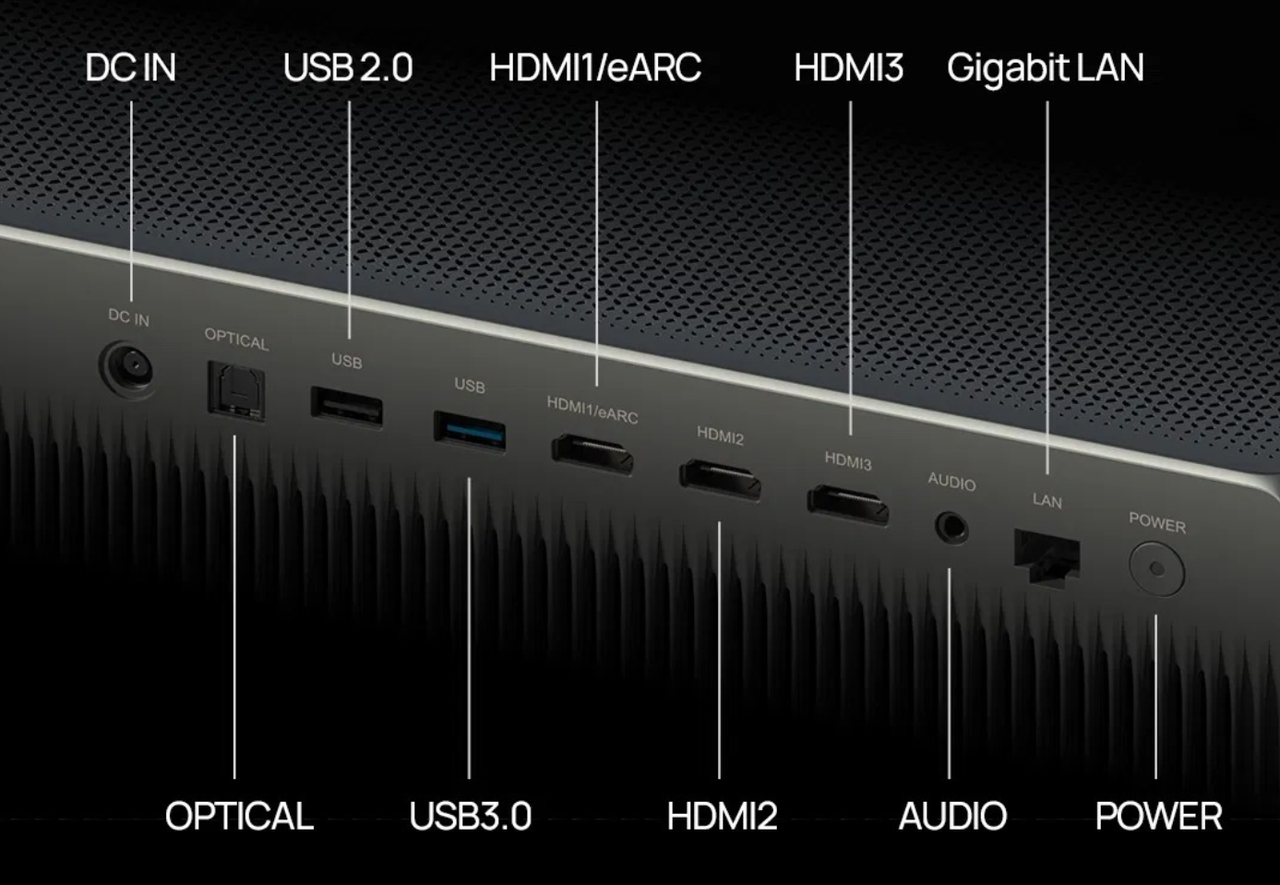

1. Connect the HDMI cable: Projector HDMI 1 (eARC) → AV receiver ARC/eARC port

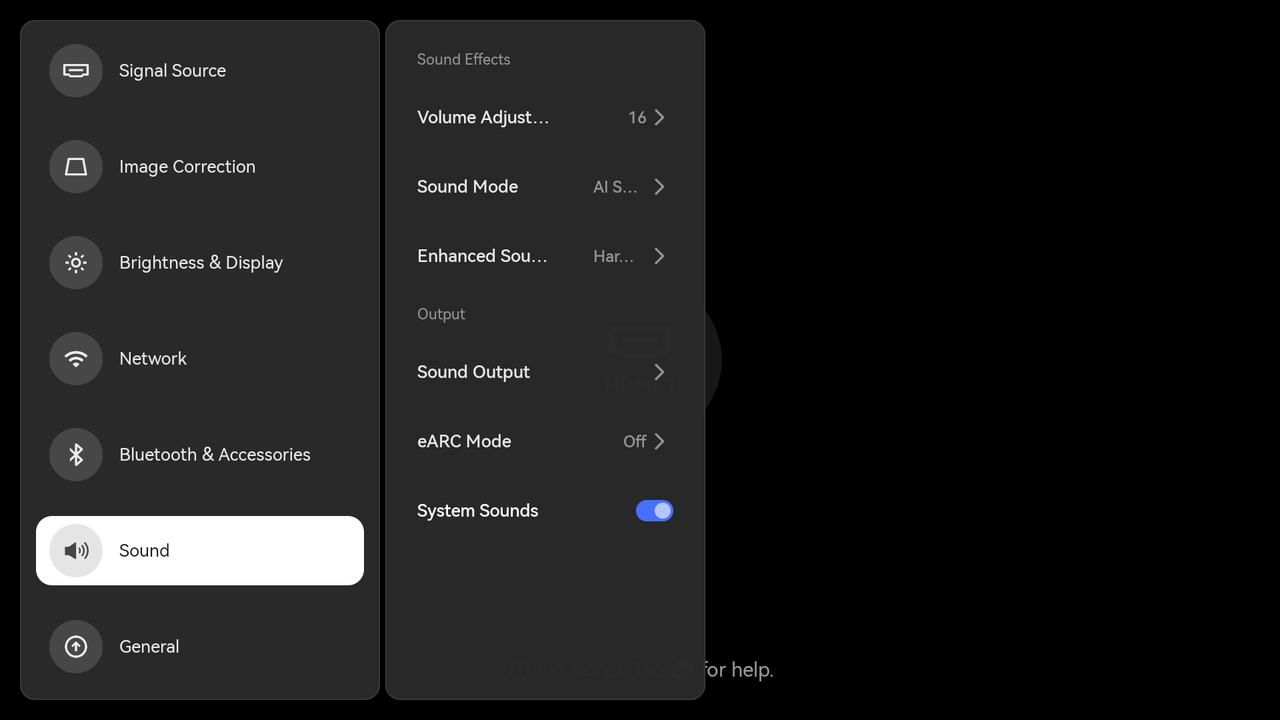

2. Press Settings
02Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector.png

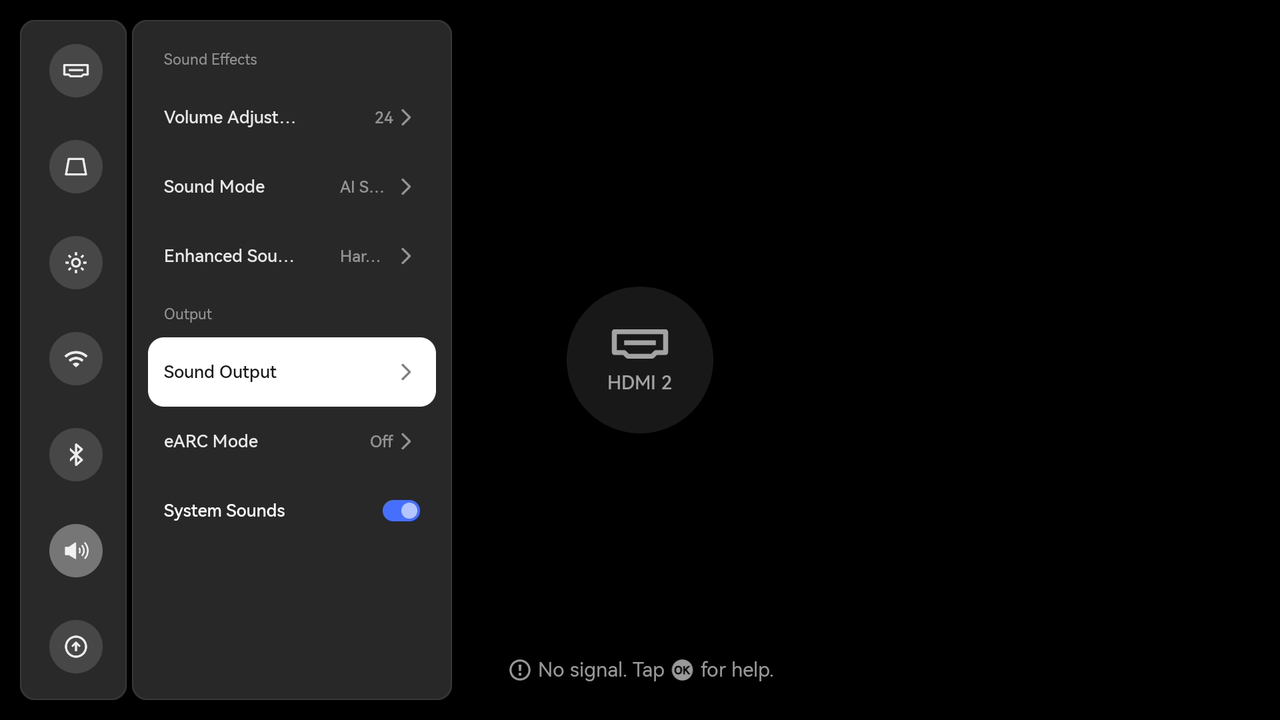

3. Go to: Sound > Sound Output
03Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector.png

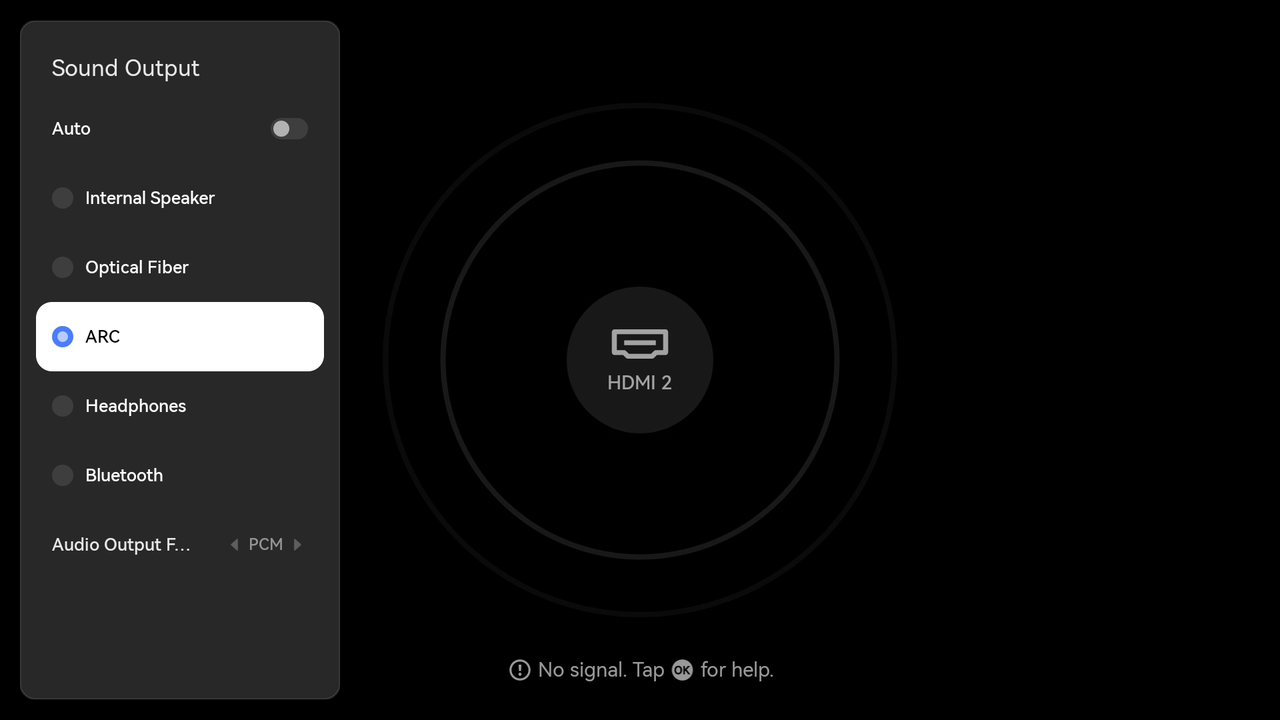

4. Select ARC Output
04Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector.png

Audio formats:

  • PCM
  • Passthrough
  • Auto

Notes:

  • Use an HDMI 2.1 cable for best performance

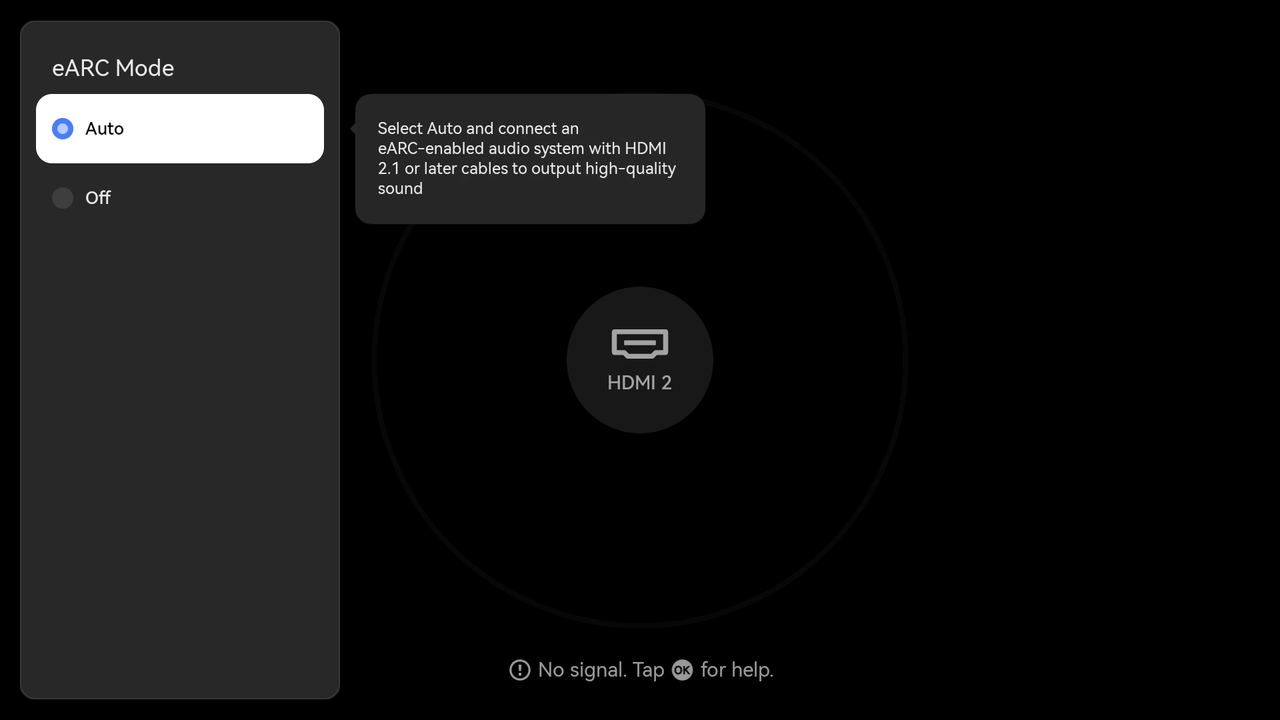

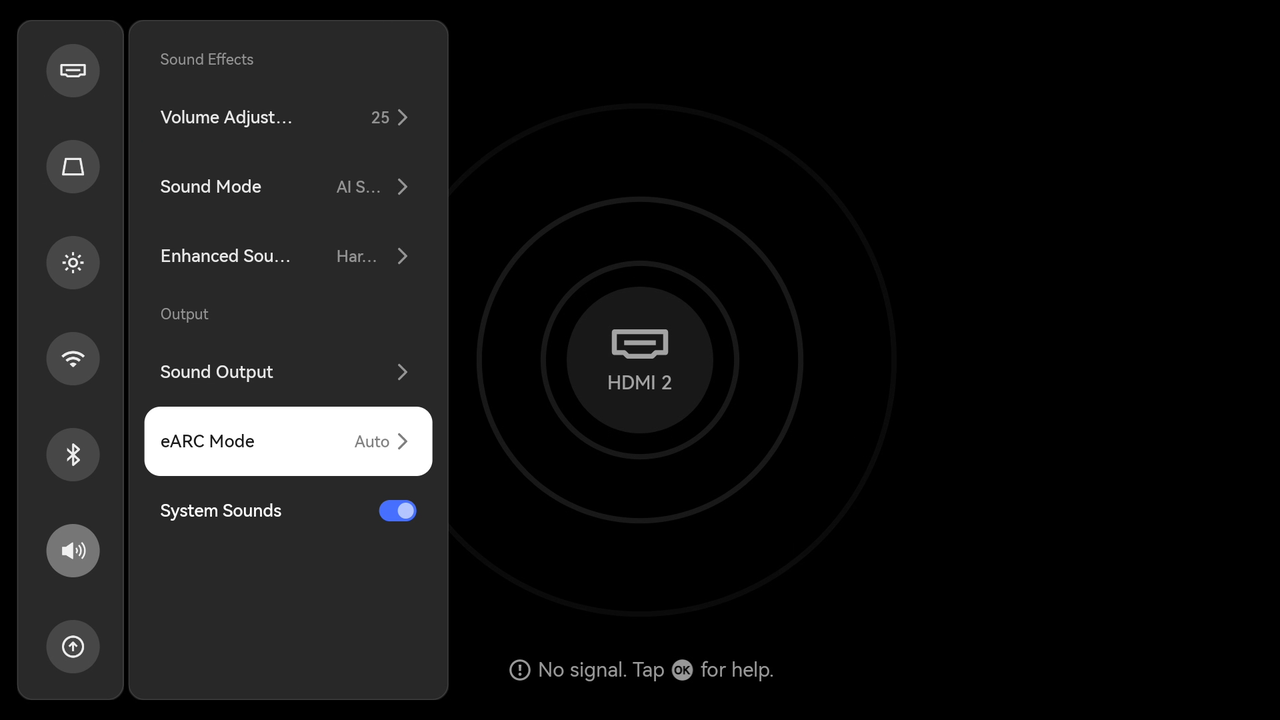

  • Enable: Sound > eARC Mode → Auto
  • 05Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector.png
  • 06Can I connect an AV receiver via HDMI eARC to the TITAN Noir Series projector.png
  • Ensure your AV receiver supports eARC
  • ARC ports are usually labeled on the HDMI output section
