Quick Manual Correction allows you to manually adjust the four corners of the projected image.
Steps
1. Press the Settings button on the remote to open Quick Settings, then select All Settings.

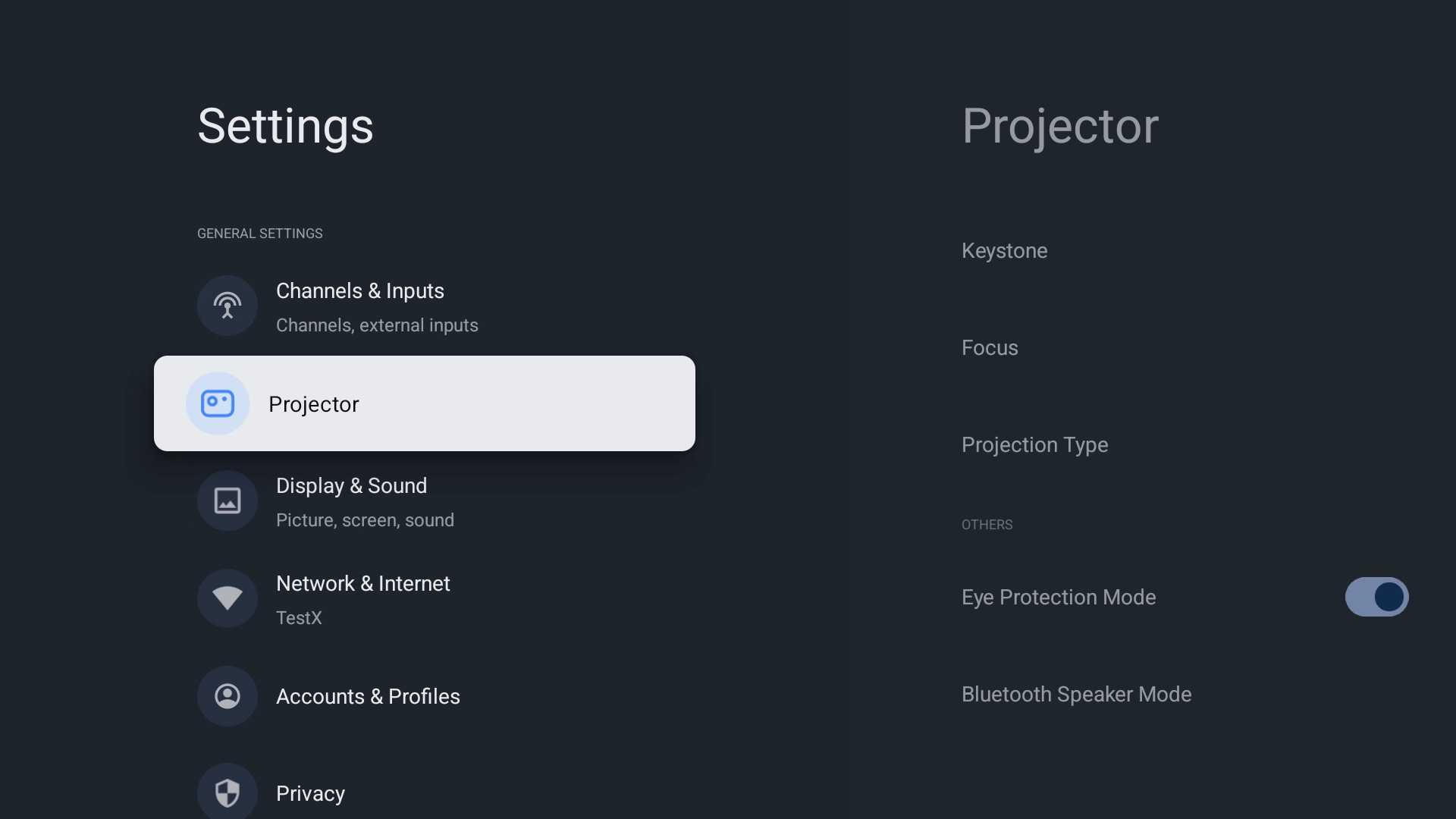

2. Navigate to: Projector > Keystone

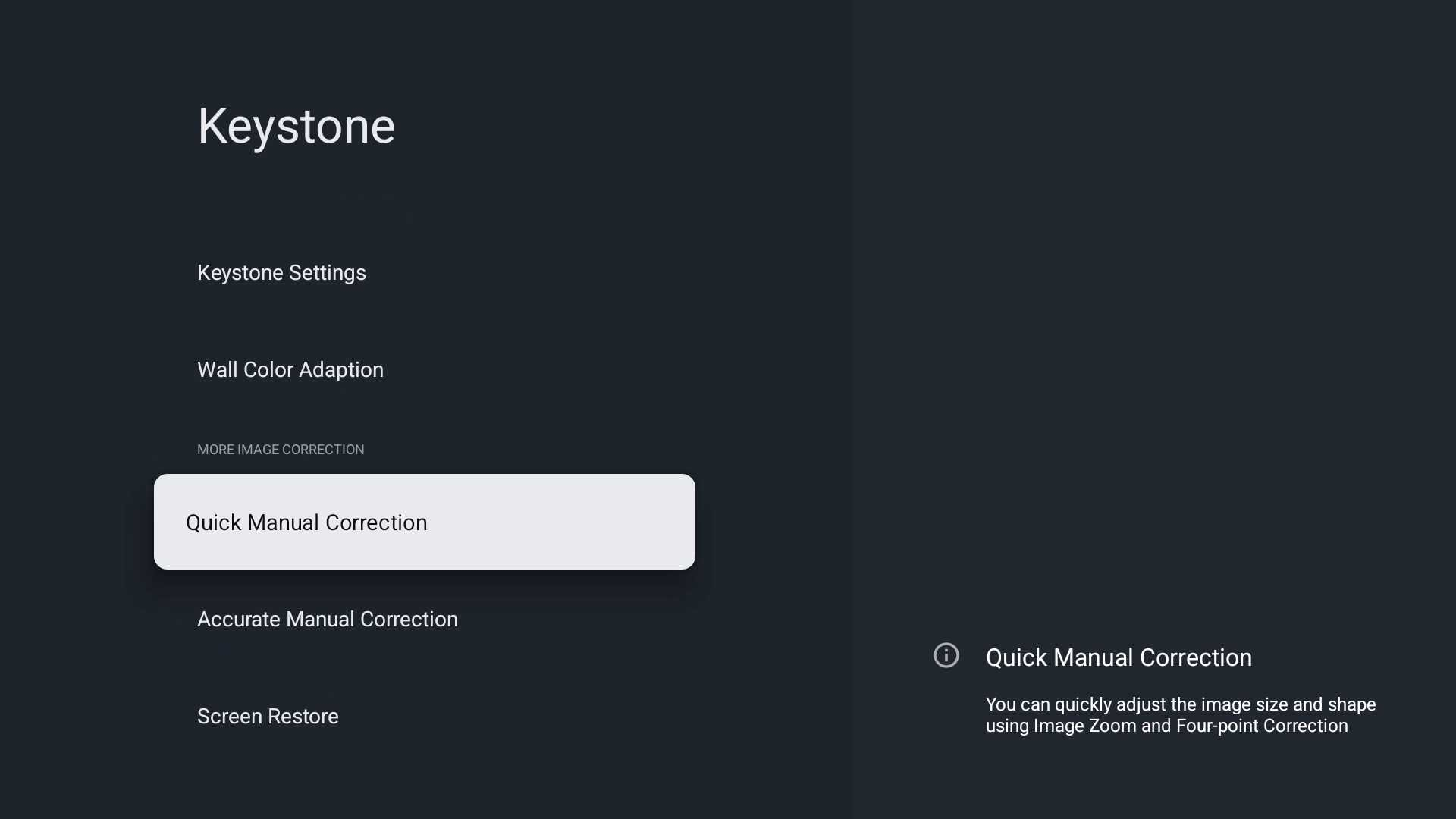

3. Select Quick Manual Correction

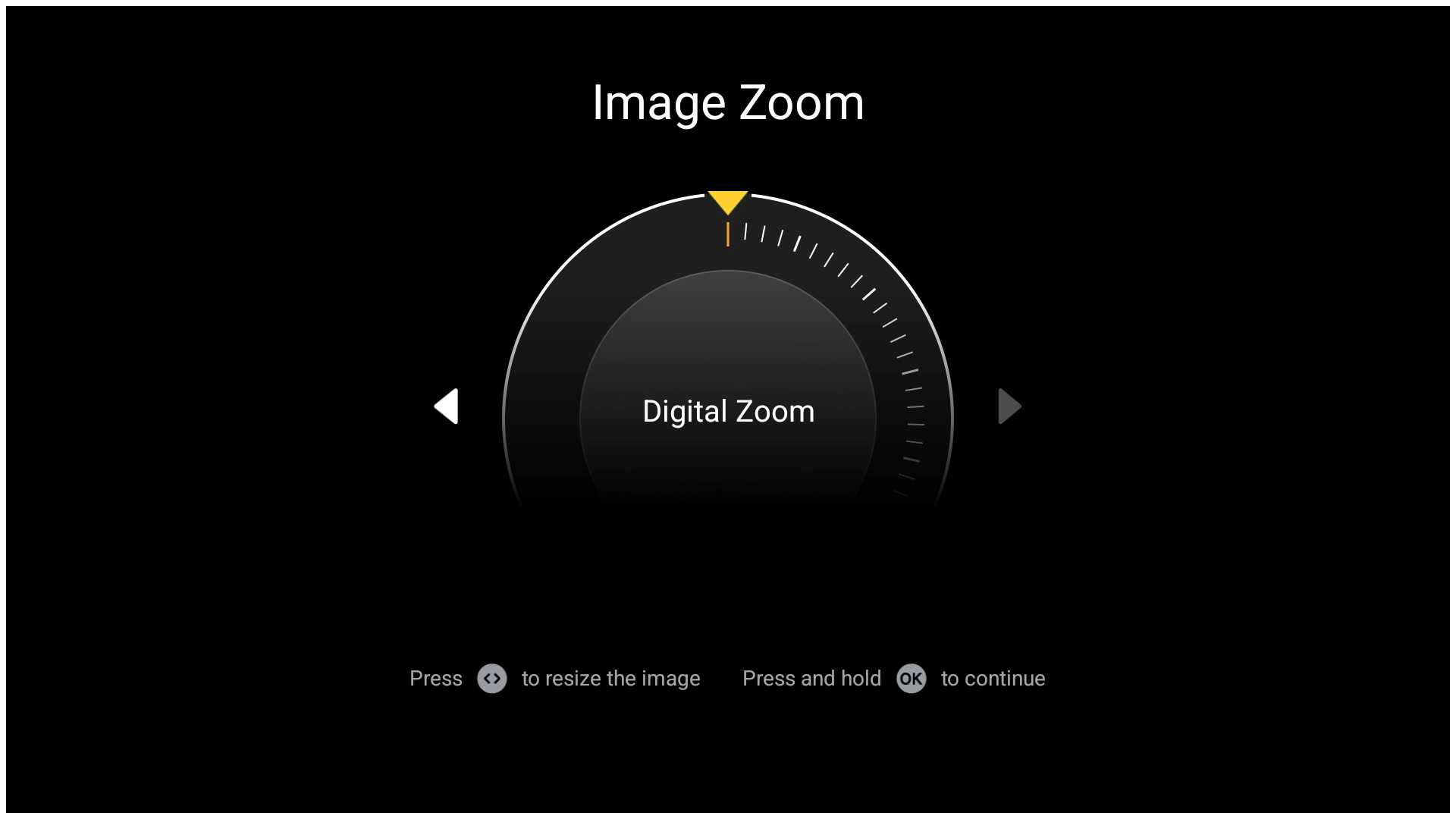

4. The Image Zoom screen will appear first.
- Use the Left/Right buttons to adjust the image size.
- When finished, press and hold the OK button to continue.

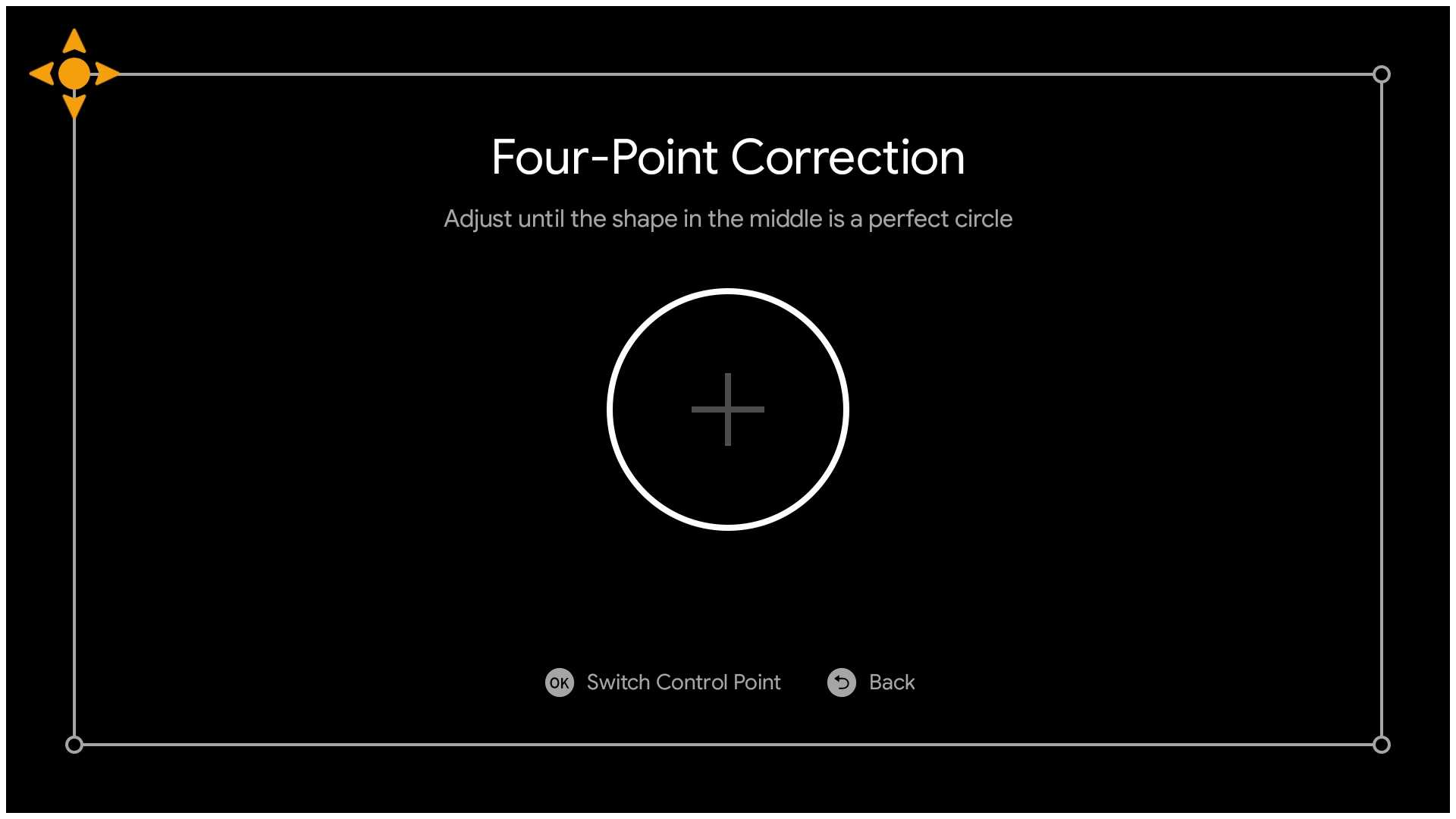

5. Enter the 4-point correction screen.
- Press OK to cycle through the four corner control points clockwise.
- Use the directional buttons to adjust the selected corner.
---
Notes

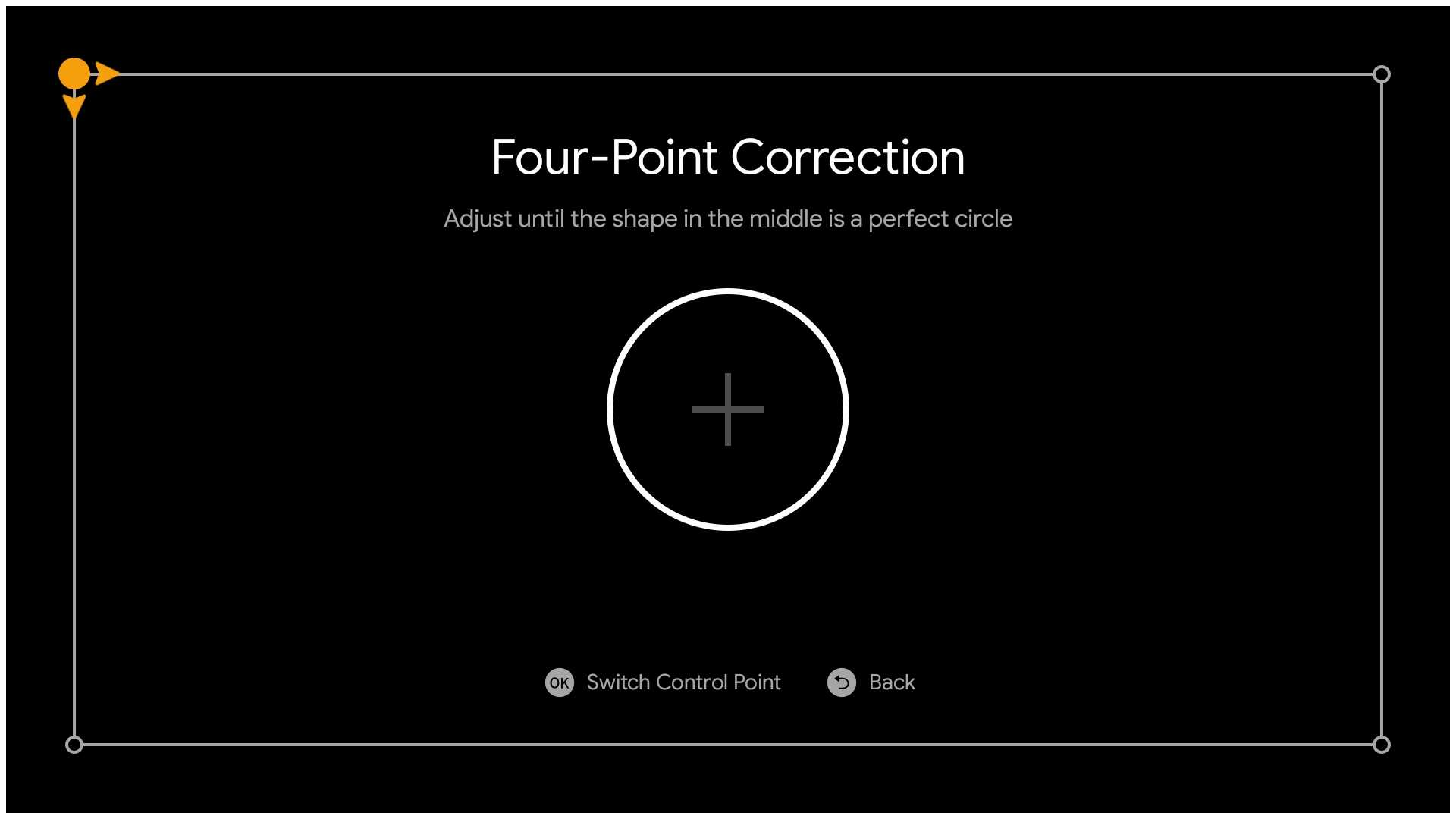

- Adjustments can only be made in the directions indicated by the on-screen arrows.
- If an arrow is not displayed, the adjustment limit has been reached in that direction.
- If additional correction is required, reposition the projector and try again.
---
Tips
- To maintain proper image geometry, adjust the center circle until it appears as close to a perfect circle as possible.
- The projector's native aspect ratio is 16:9.
- This feature is particularly useful when projecting onto a flat wall.
