Accurate Manual Correction provides finer image adjustment using eight control points.
Steps

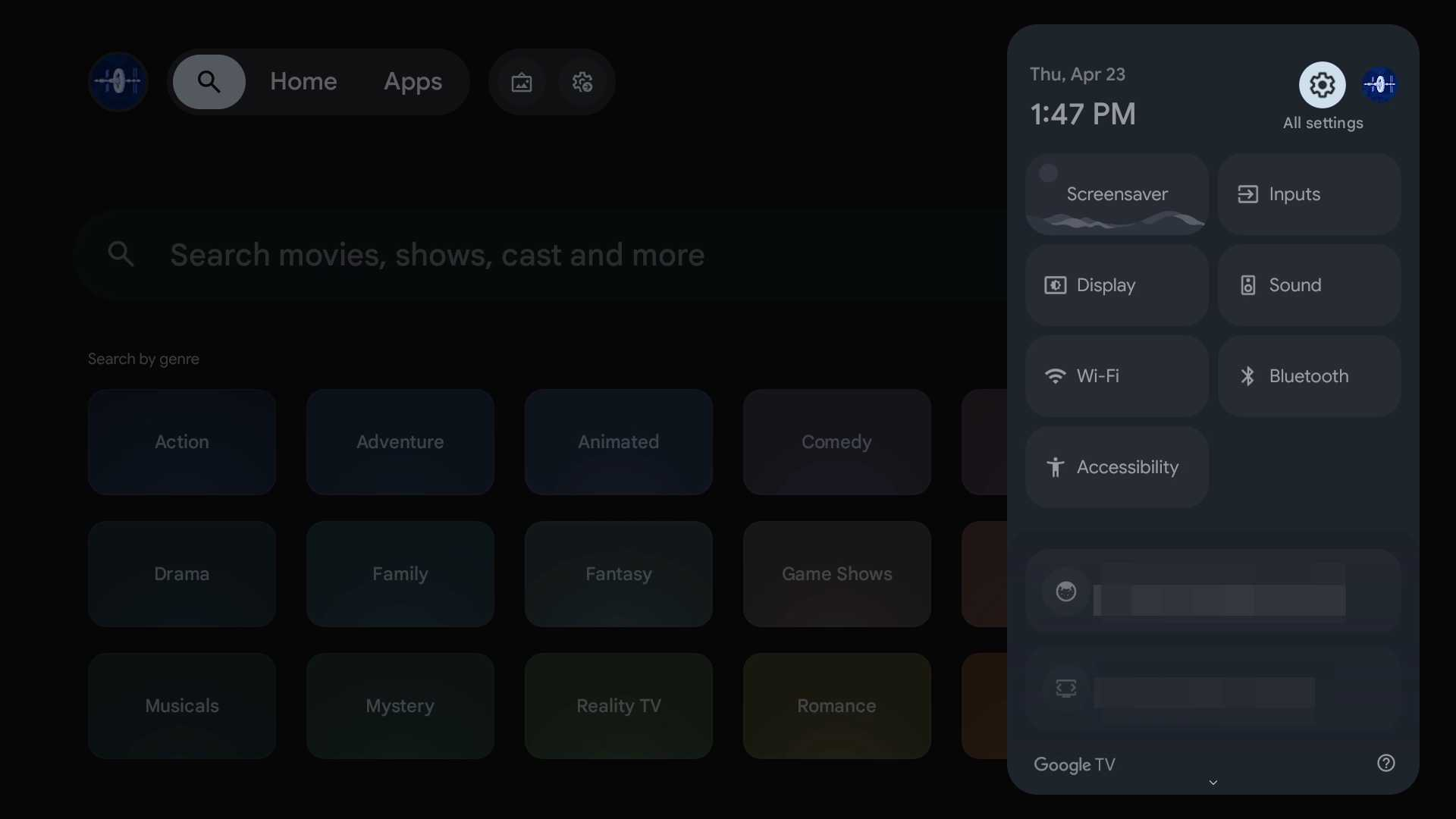

1. Press the Settings button on the remote to open Quick Settings, then select All Settings.

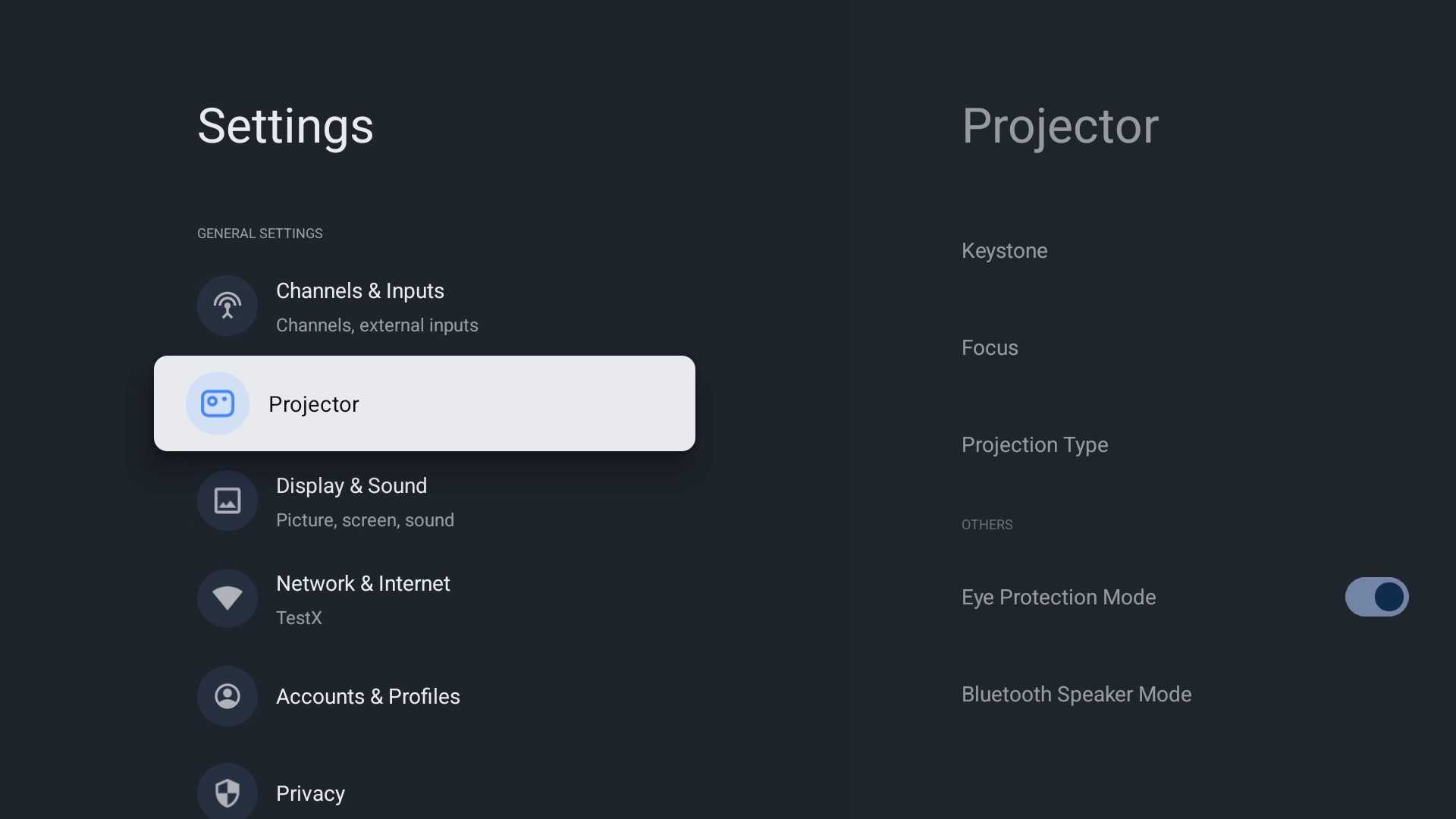

2. Navigate to: Projector > Keystone

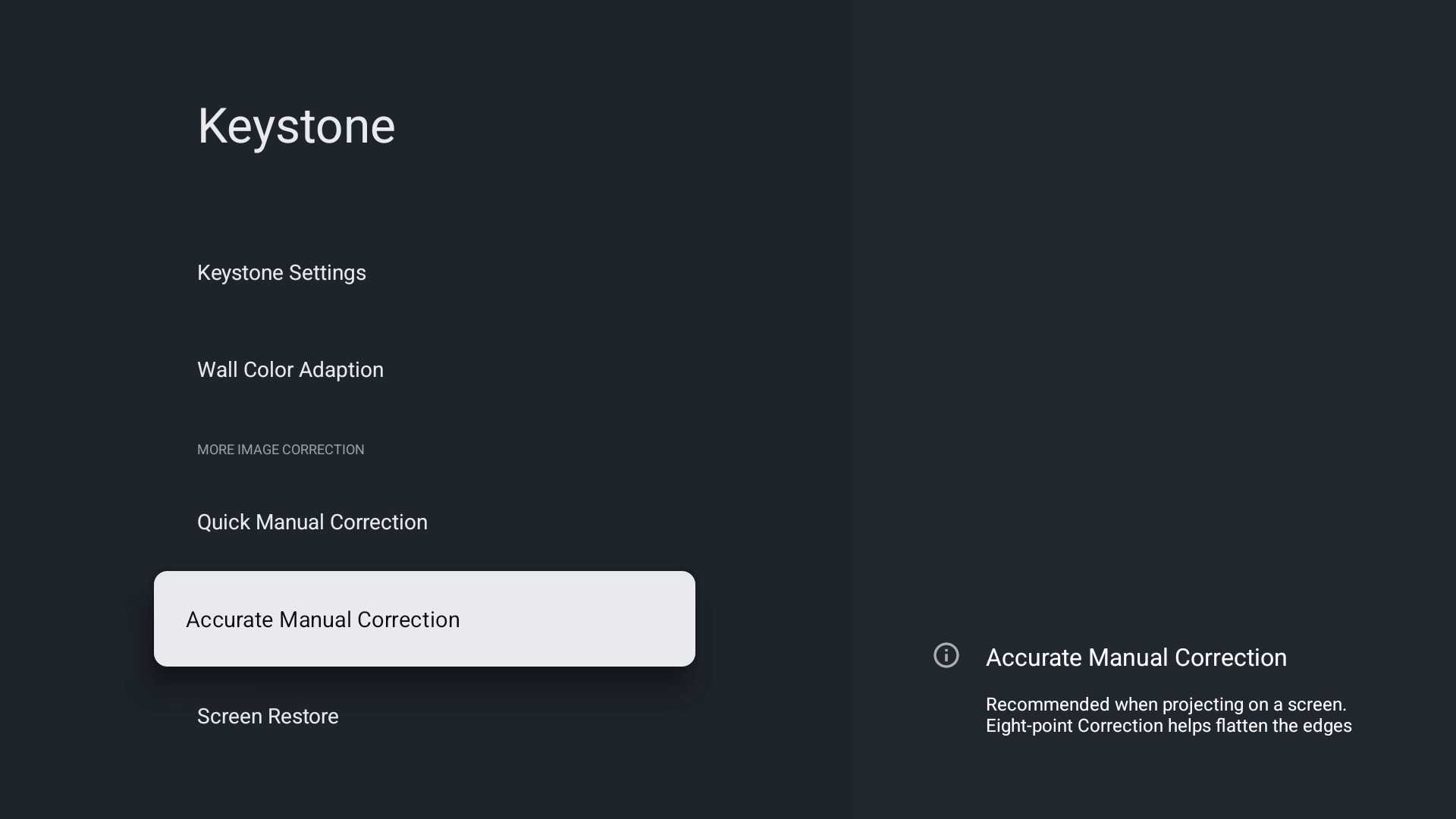

3. Select Accurate Manual Correction

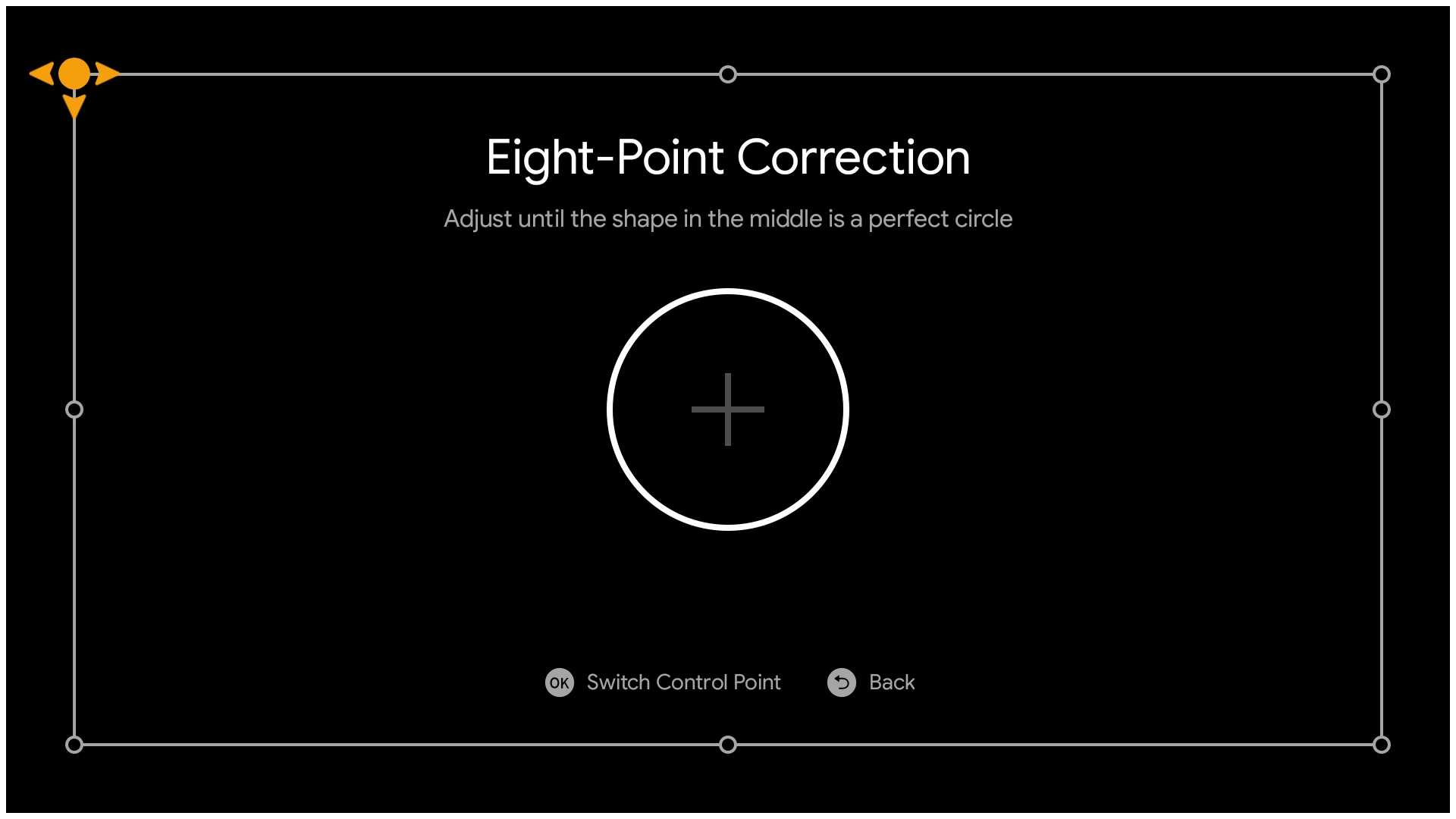

4. On the 8-point correction screen:
- Press OK to cycle through the control points clockwise.
- Use the directional buttons to adjust the selected point.
---
Notes

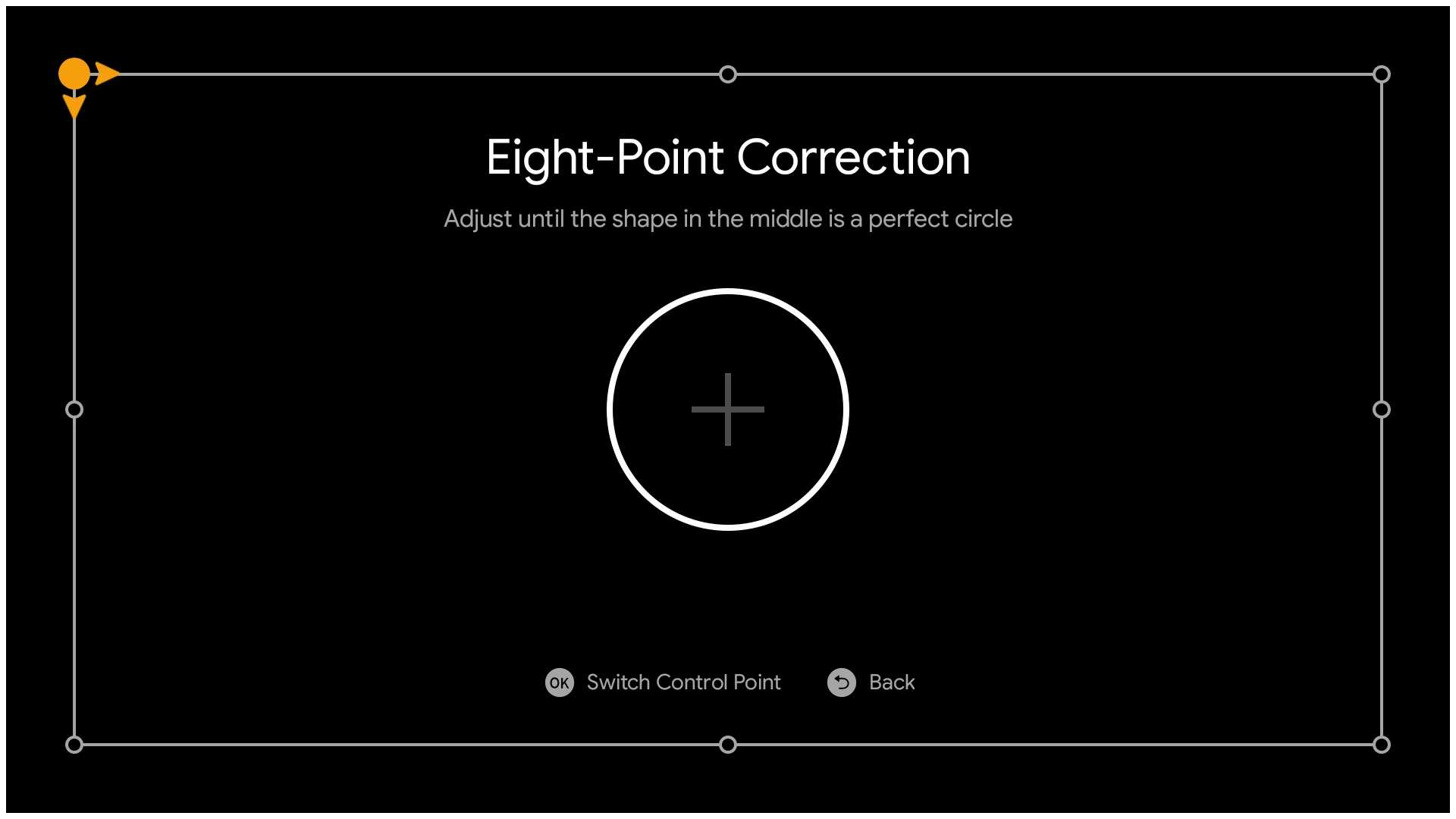

- Adjustments can only be made in the directions indicated by the on-screen arrows.
- If an arrow is not displayed, the adjustment limit has been reached.
- If further correction is needed, reposition the projector.

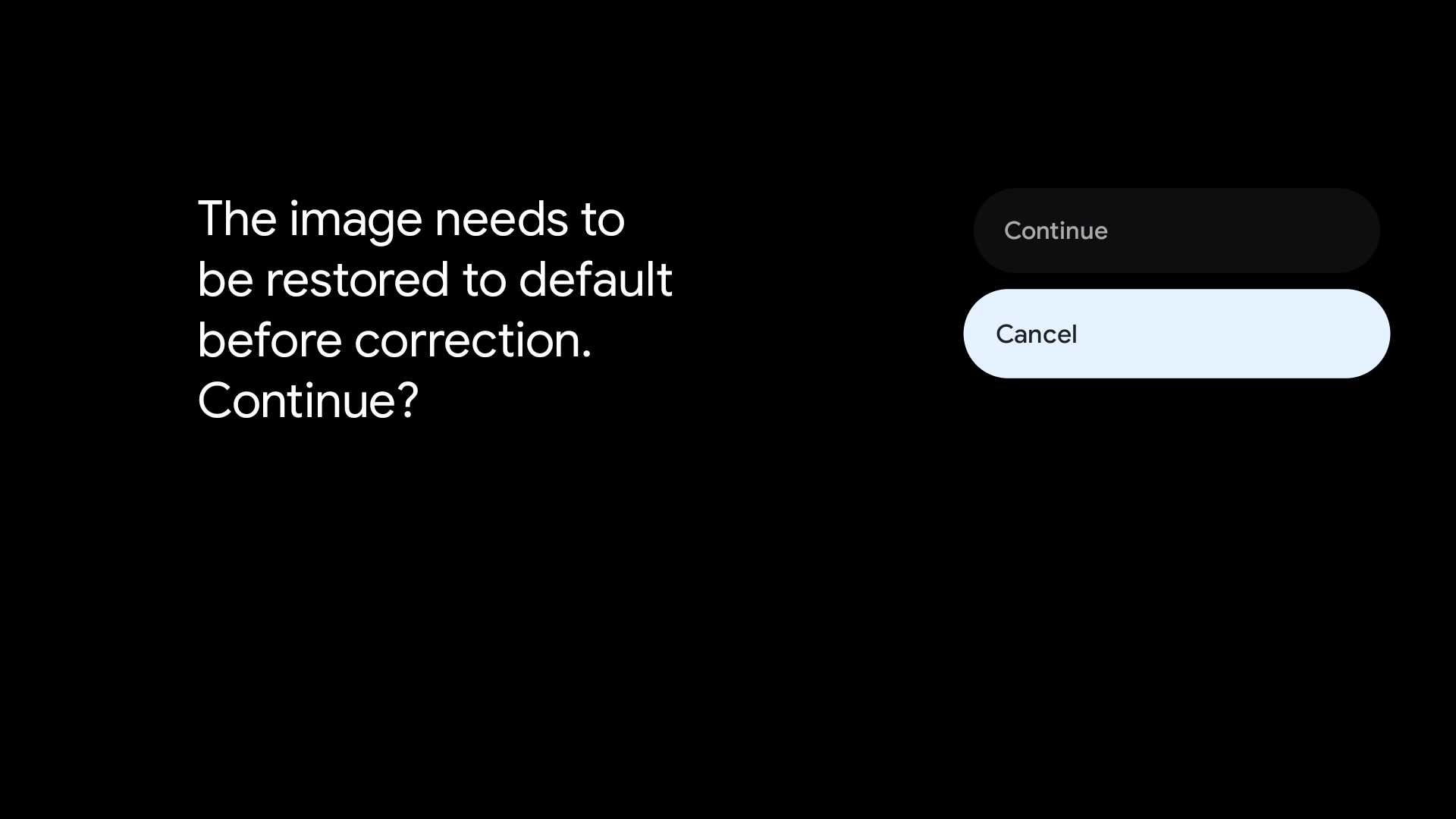

- Entering Accurate Manual Correction will reset the image to its default geometry before adjustment begins.
---
Tips
- Adjust the center circle until it appears as close to a perfect circle as possible.
- The projector's native aspect ratio is 16:9.
- This feature is especially useful when aligning the image to a UST projection screen.
