Wall Flatness Adaptation helps compensate for minor wall surface irregularities to improve image geometry.
---
Enable Wall Flatness Adaptation

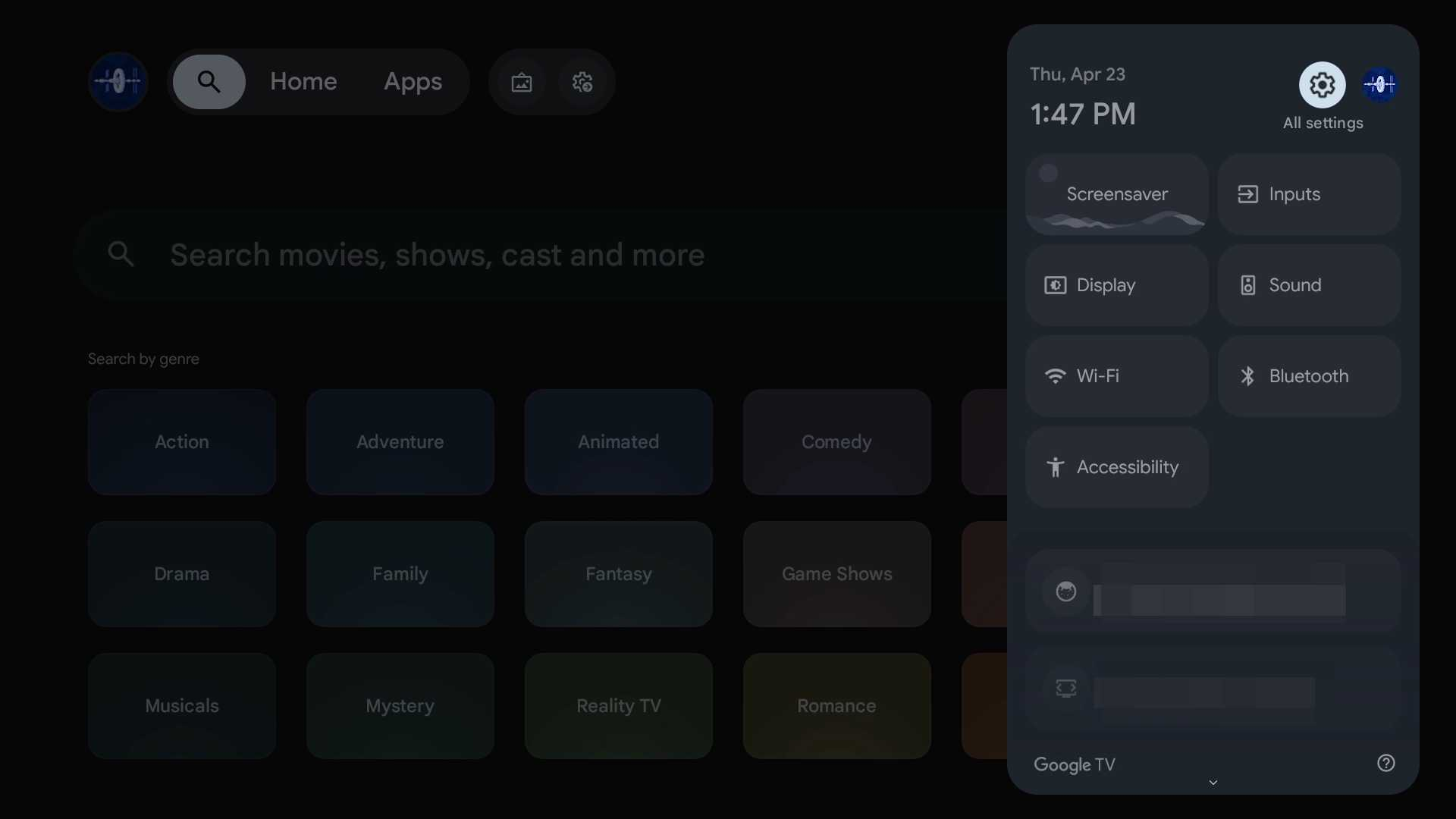

1. Press the Settings button on the remote to open Quick Settings, then select All Settings.

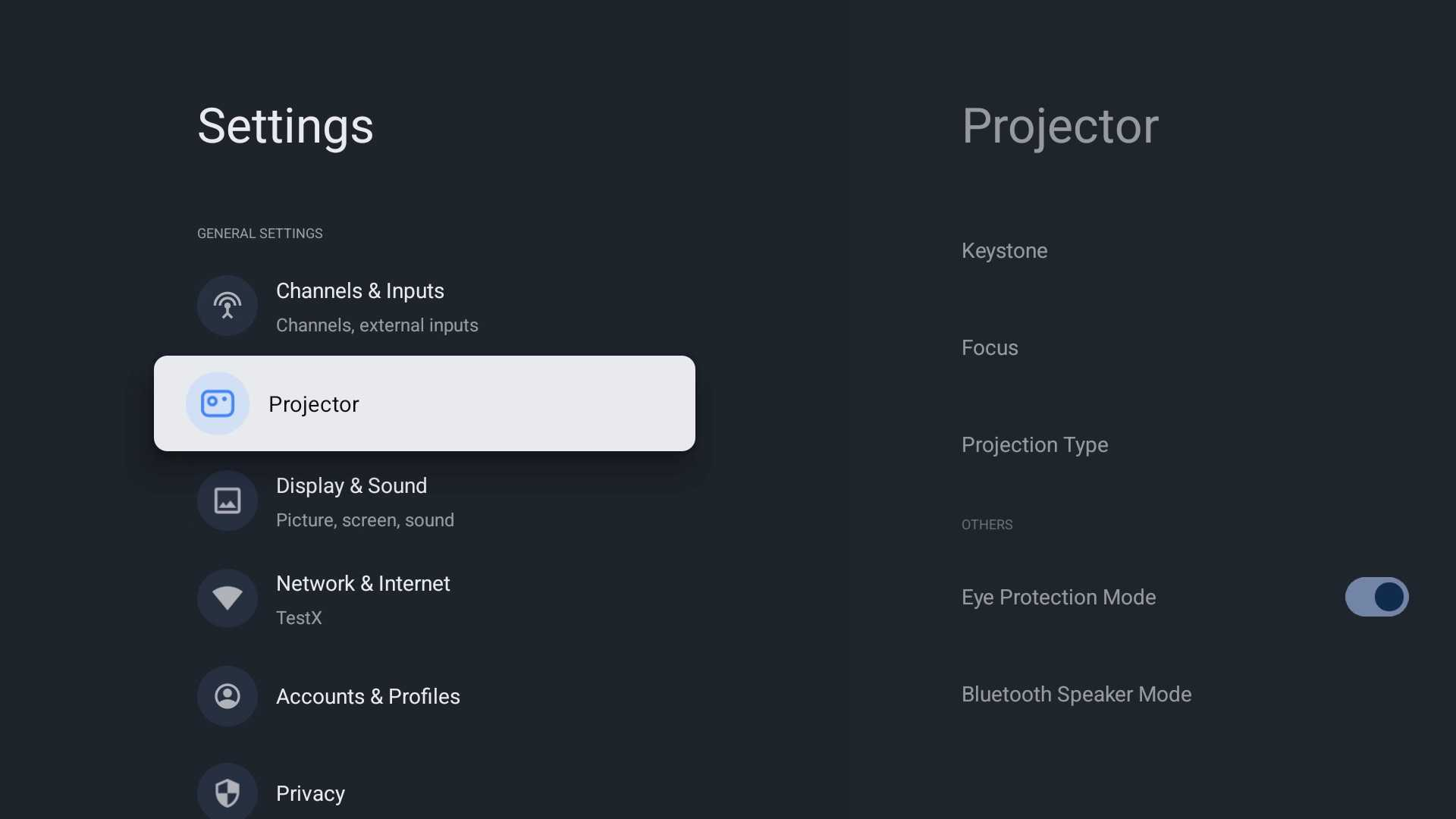

2. Navigate to: Projector > Keystone

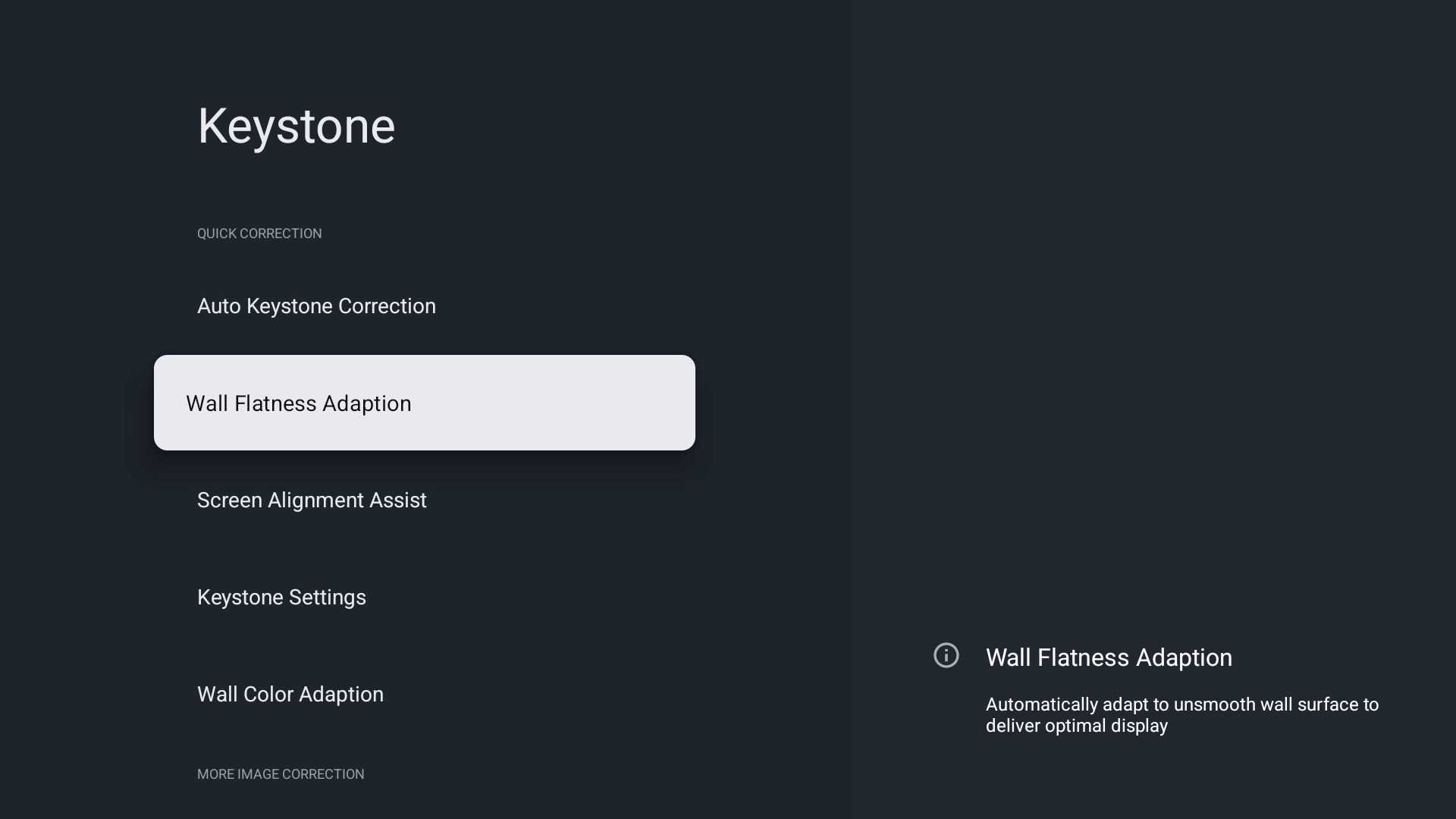

3. Select Wall Flatness Adaptation

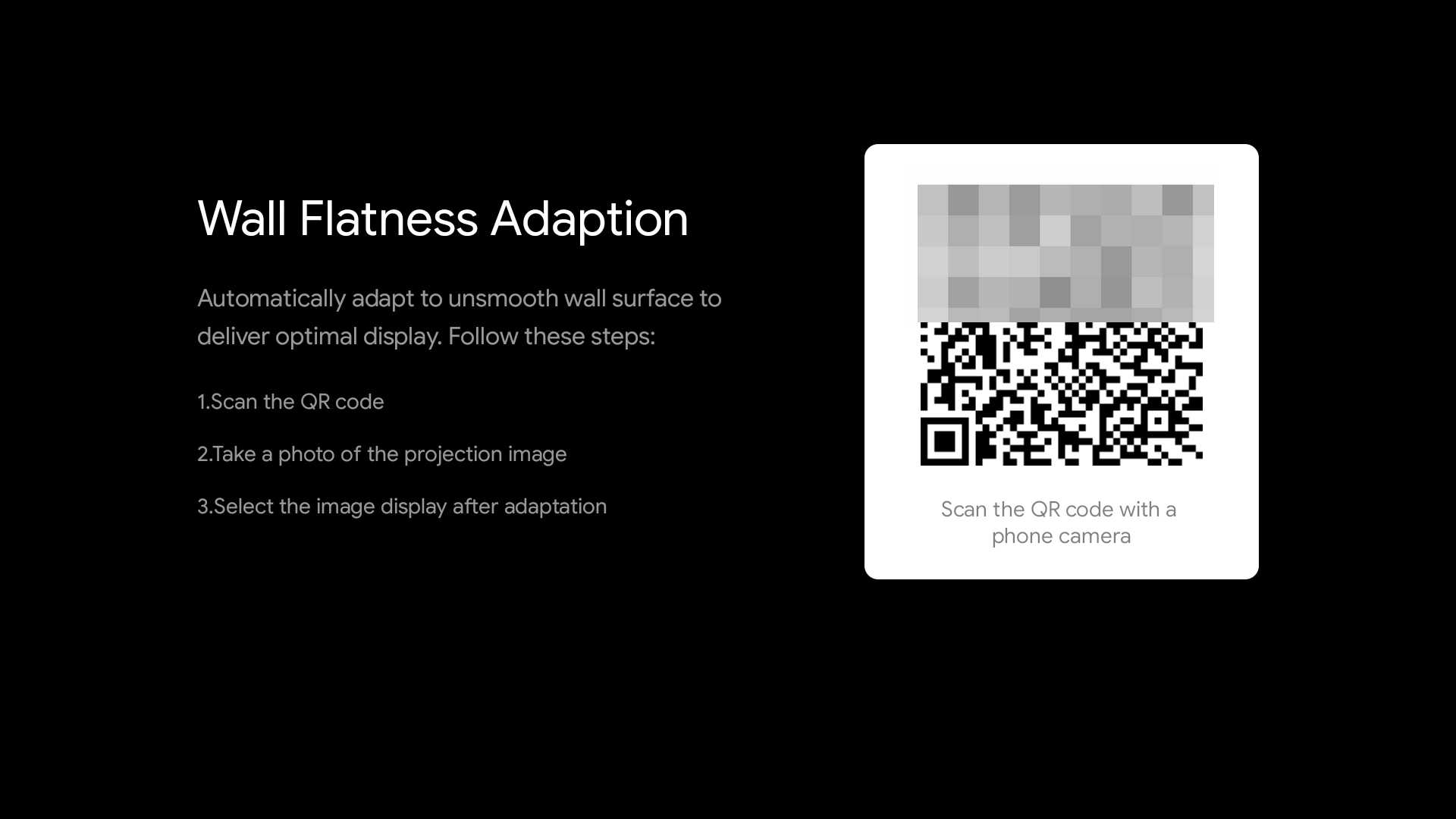

4. Scan the QR code displayed on the projector using your smartphone.

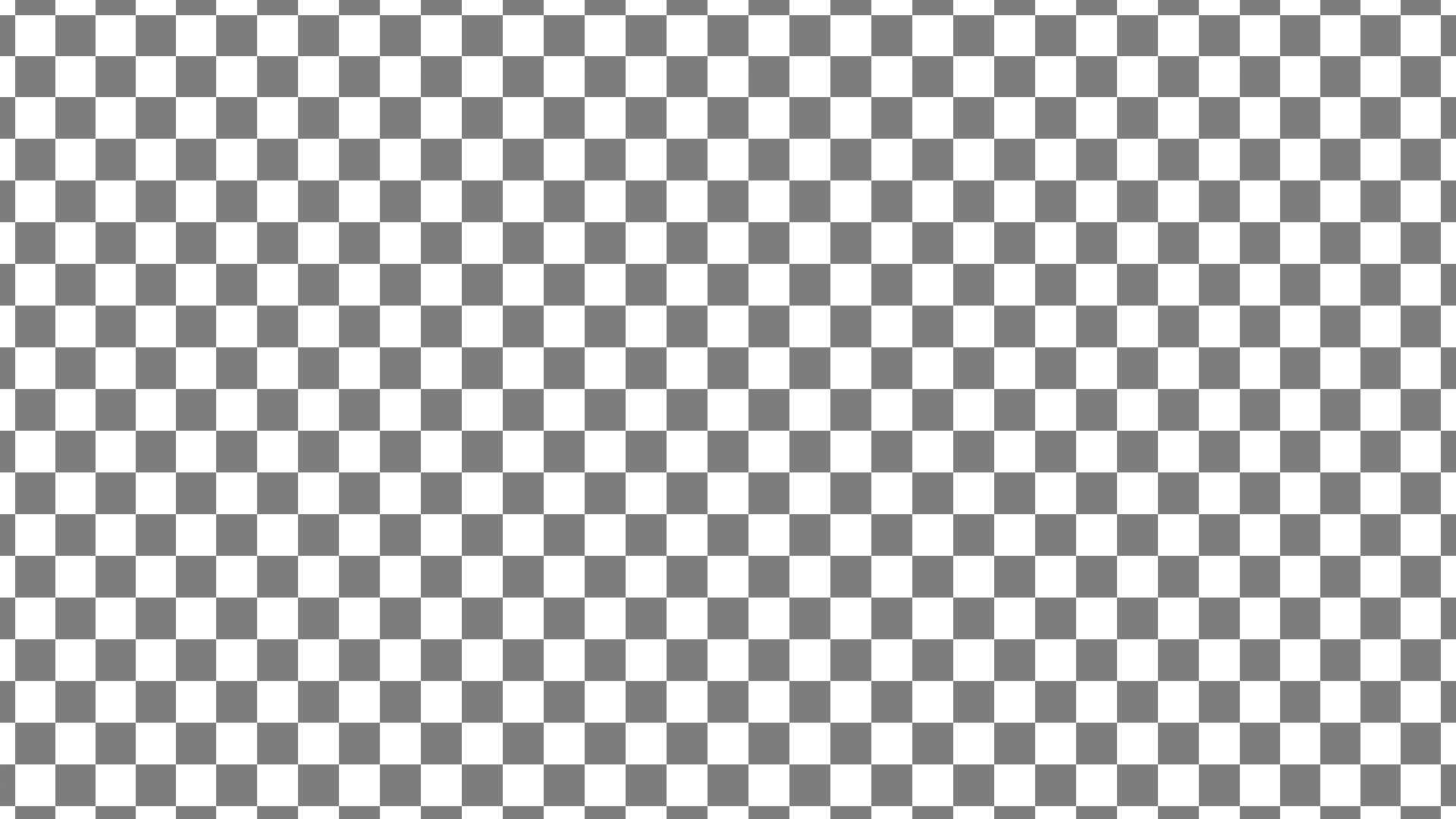

- The projector will display a checkerboard calibration pattern.
- Your phone will automatically open the calibration webpage.

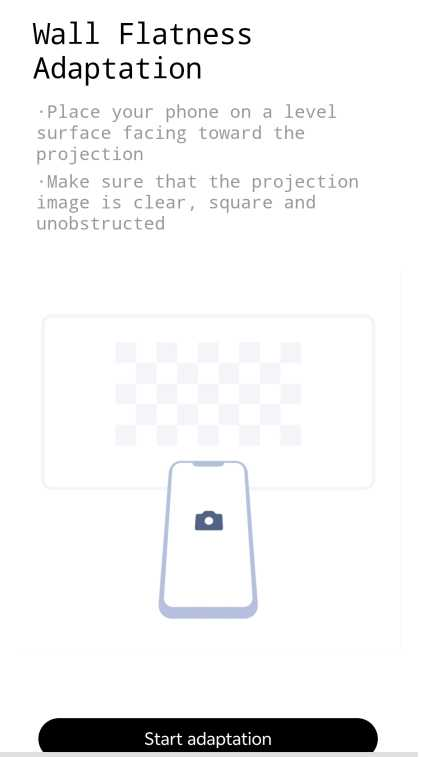

5. Hold the smartphone horizontally and point it directly at the projected image.
- Ensure the entire checkerboard pattern is visible in the camera frame.
- Wait until the image is in focus and take the photo.
Note: Ensure the projected image is clear and unobstructed.
6. After calibration is completed, compare the Before Correction and After Correction results and save your preferred version.
- Both the projector and smartphone must be connected to the internet.
---
Notes
- Wall Flatness Adaptation should be performed after completing all Keystone Correction adjustments. Running Keystone Correction afterward may override the wall flatness calibration results.
- This feature can reduce image distortion and wave-like edge effects caused by projecting onto uneven walls. However, it cannot completely eliminate such effects. For optimal image quality, a dedicated UST projection screen is strongly recommended.
