If the image appears stretched, compressed, or incorrectly scaled while using an HDMI source, you can manually adjust the aspect ratio settings.
Steps to Change the HDMI Aspect Ratio:
1. Switch the projector to an HDMI input source.

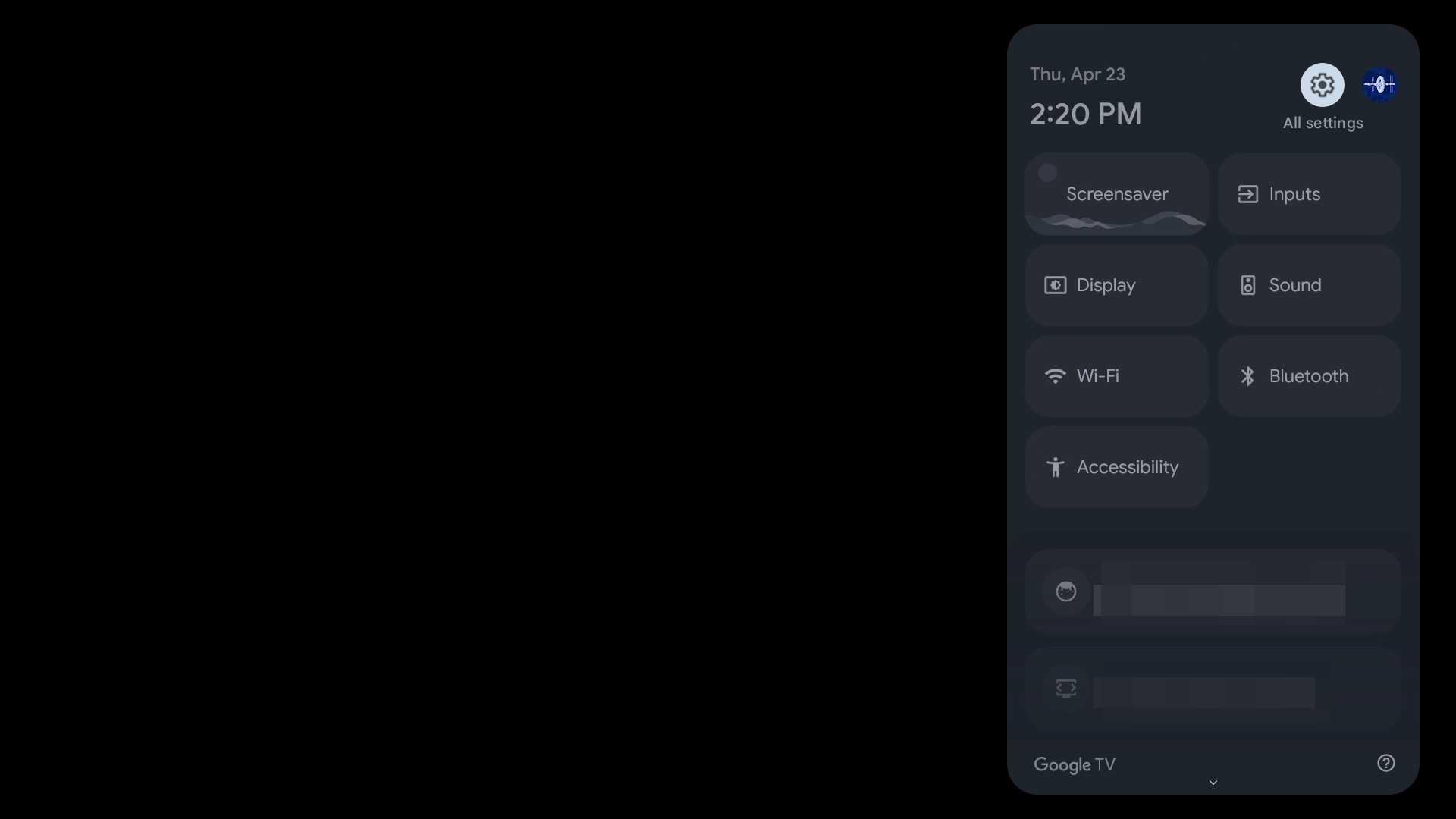

2. Press the Settings button on the remote to open Quick Settings, then select All Settings.

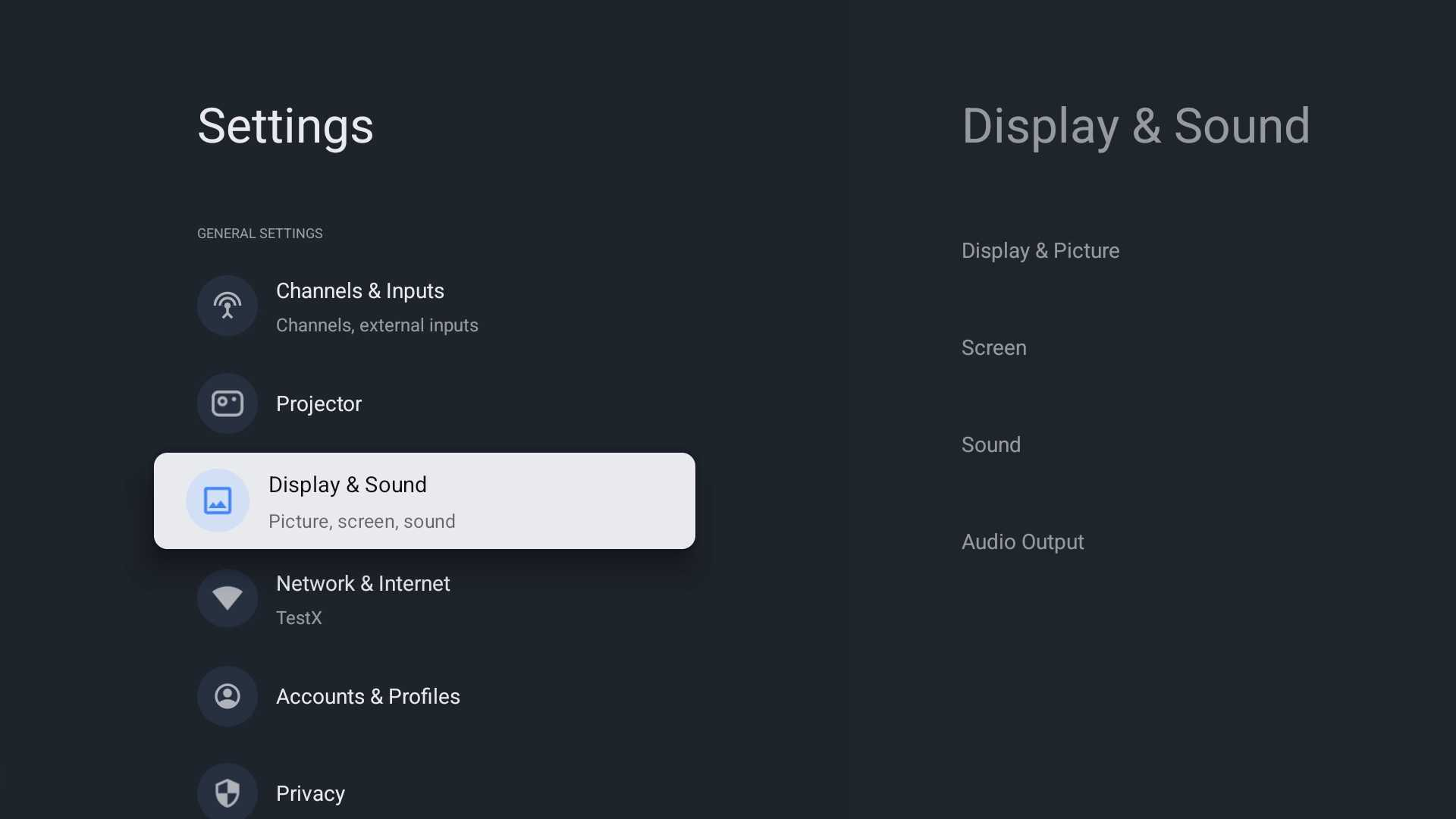

3. Go to: Display & Sound > Screen

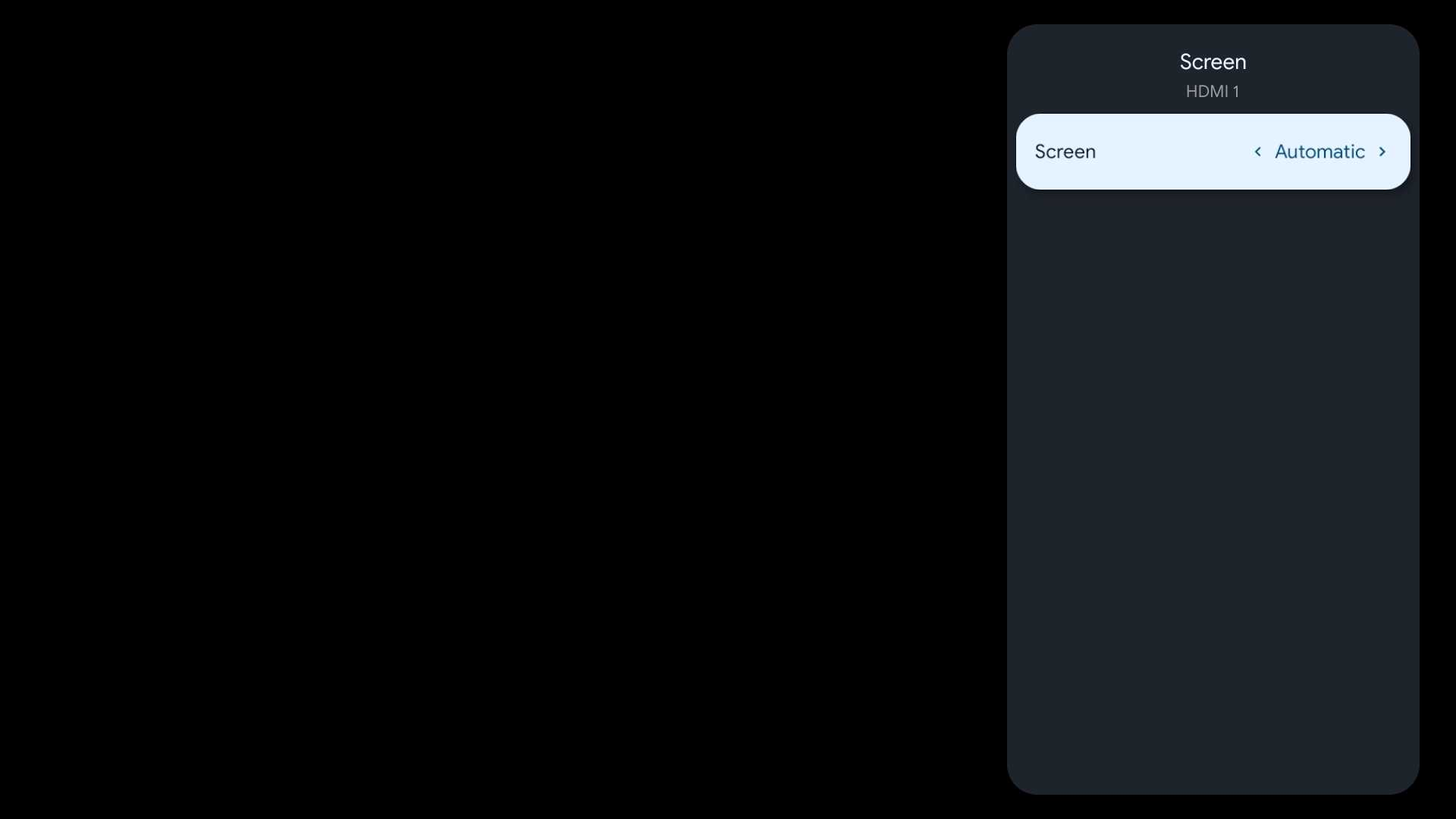

4. Use the left/right navigation buttons to select the desired aspect ratio.
Available Aspect Ratio Options:
- Automatic
- Super Zoom
- 4:3
- Movie Expand 14:9
- Movie Expand 16:9
- Full
- Unscaled
Notes
- By default, the HDMI image is scaled proportionally to fit the screen.
- If the displayed image appears distorted or incorrectly sized, try switching to another aspect ratio manually.
- If the image displays correctly, it is recommended to keep the setting on the default or Automatic.
