Does MIRA Series Support Optical (TOSLINK) Audio Output?

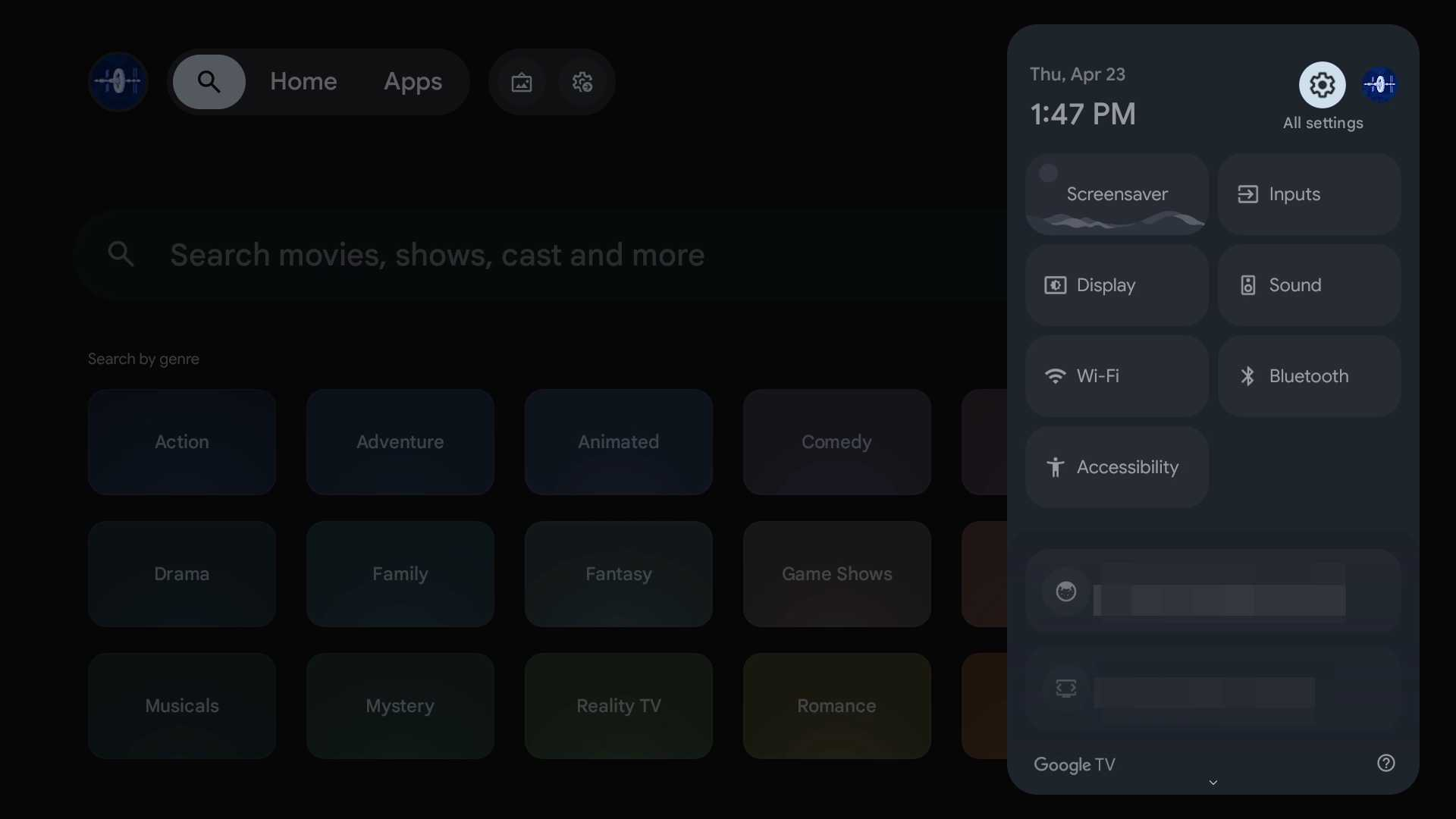

Yes. MIRA Series includes an Optical (TOSLINK) audio output port for connection to an AV receiver or external audio system. How to Connect via Optical (TOSLINK) 1. Connect the projector's Optical port to the Optical input on your AV receiver using a TOSLINK cable. 2. Press the Settings button and open Quick Settings, then select All Settings.

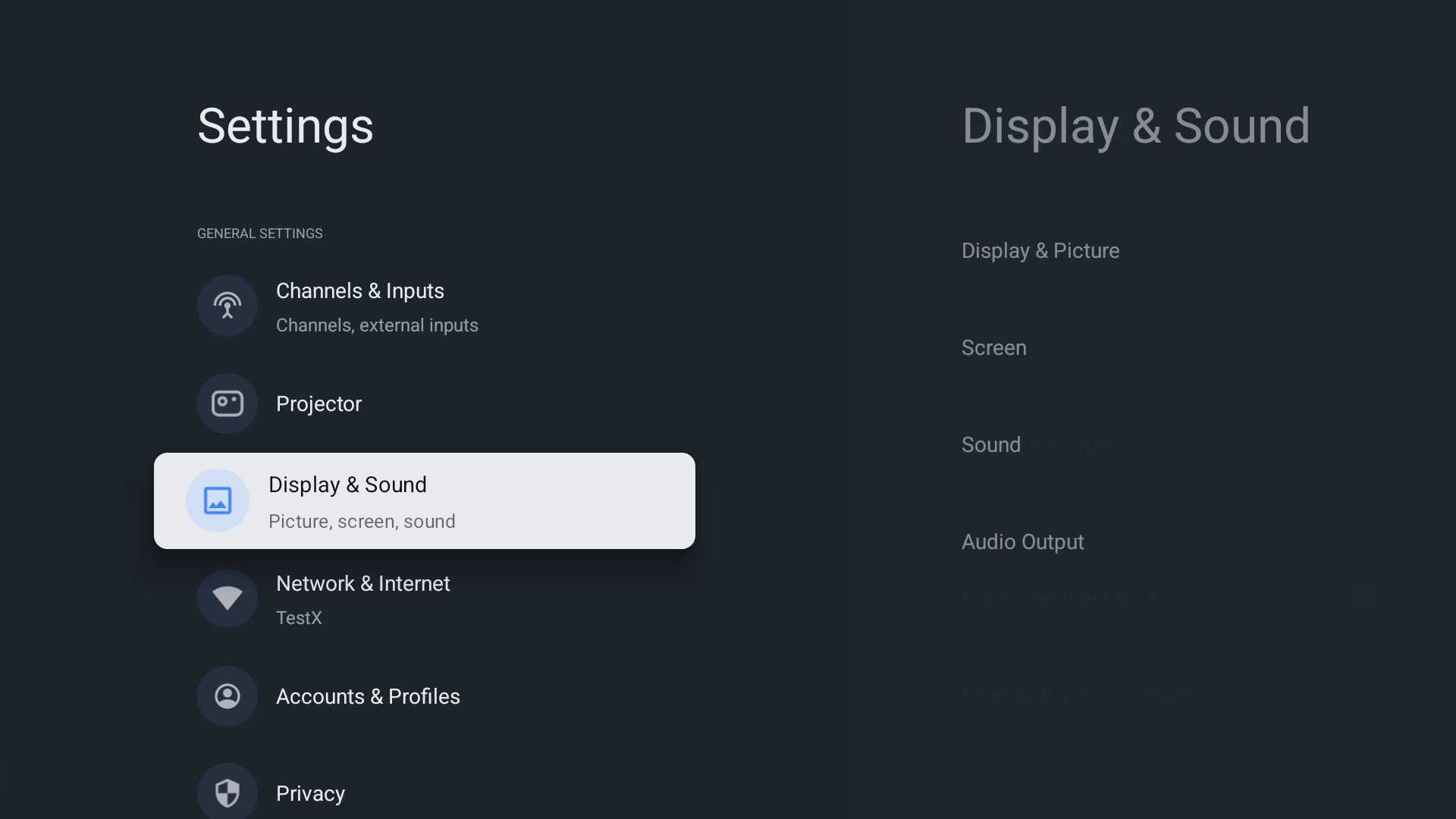

3. Navigate to: Display & Sound > Audio Output

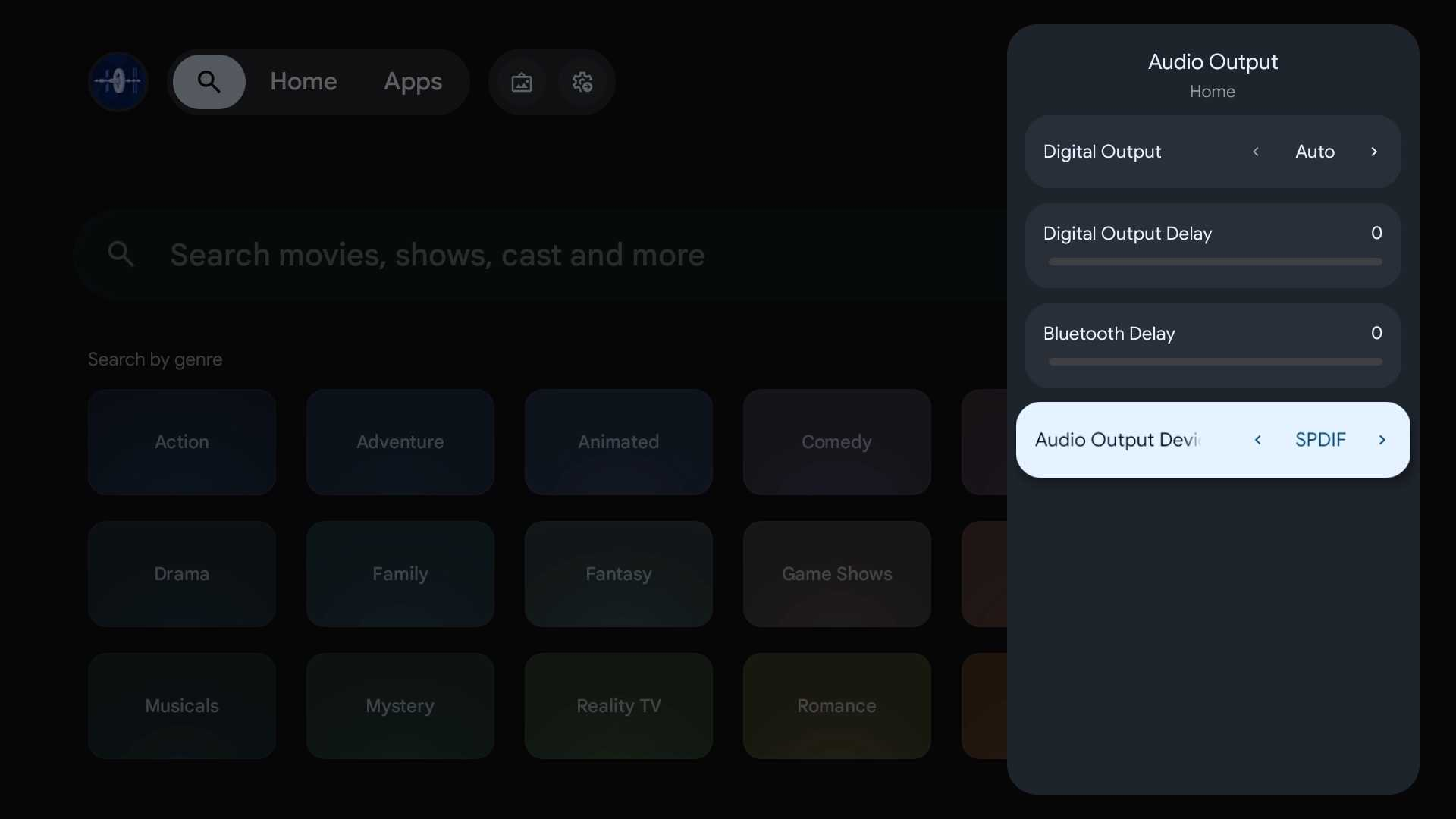

4. Set: Audio Output Device > SPDIF

5. Configure the desired Digital Output format: Auto / Bypass / PCM / Dolby Digital Plus / Dolby Digital / MAT 6. On your AV receiver, select the Optical input source. Notes - Use a standard square TOSLINK connector. - Ensure the AV receiver is configured to receive audio from its Optical input.
