Focus Calibration can help restore Auto Focus performance when Manual Focus still works correctly.
---
Preparation

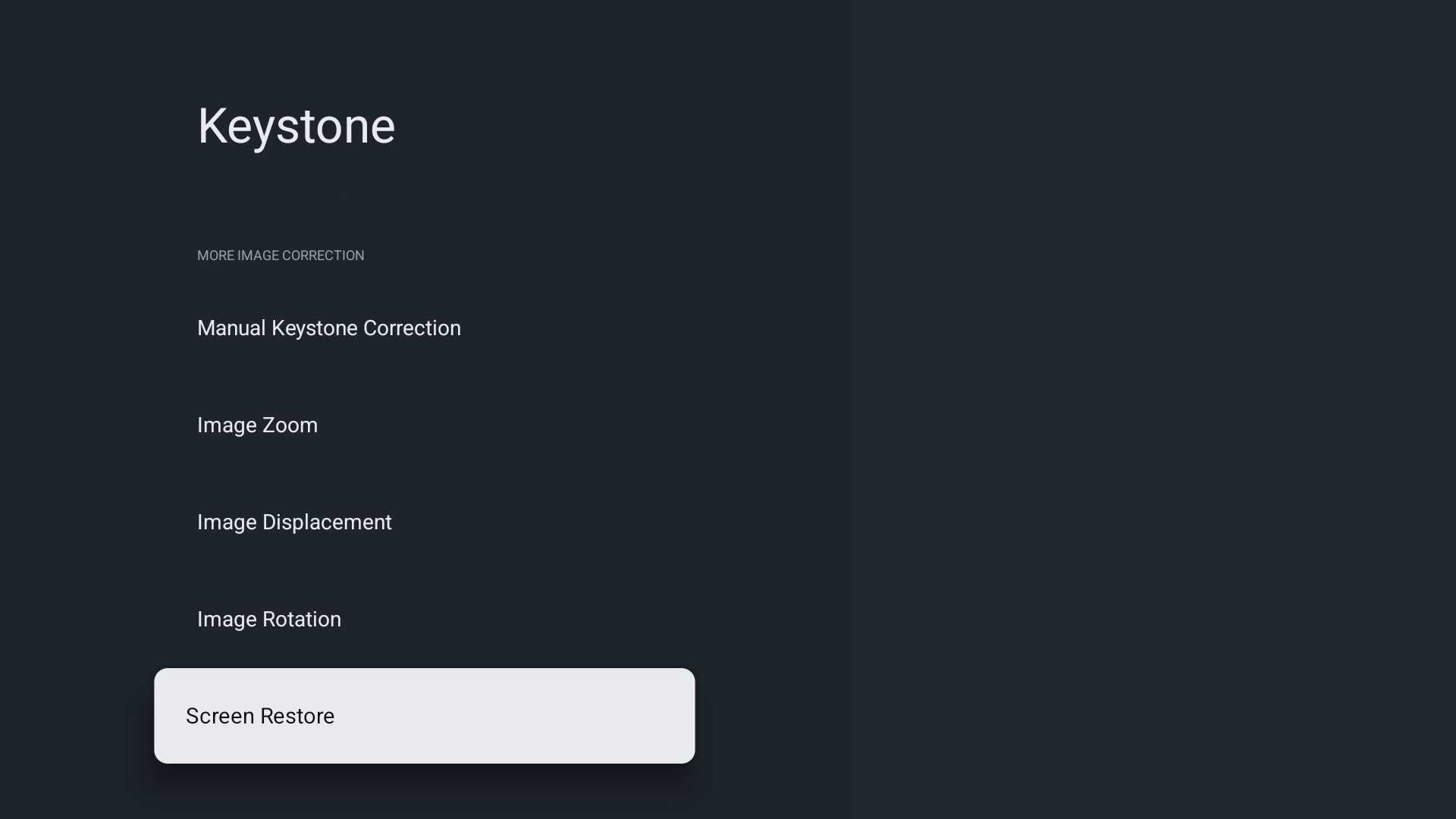

1. Restore the default image using Screen Restore.

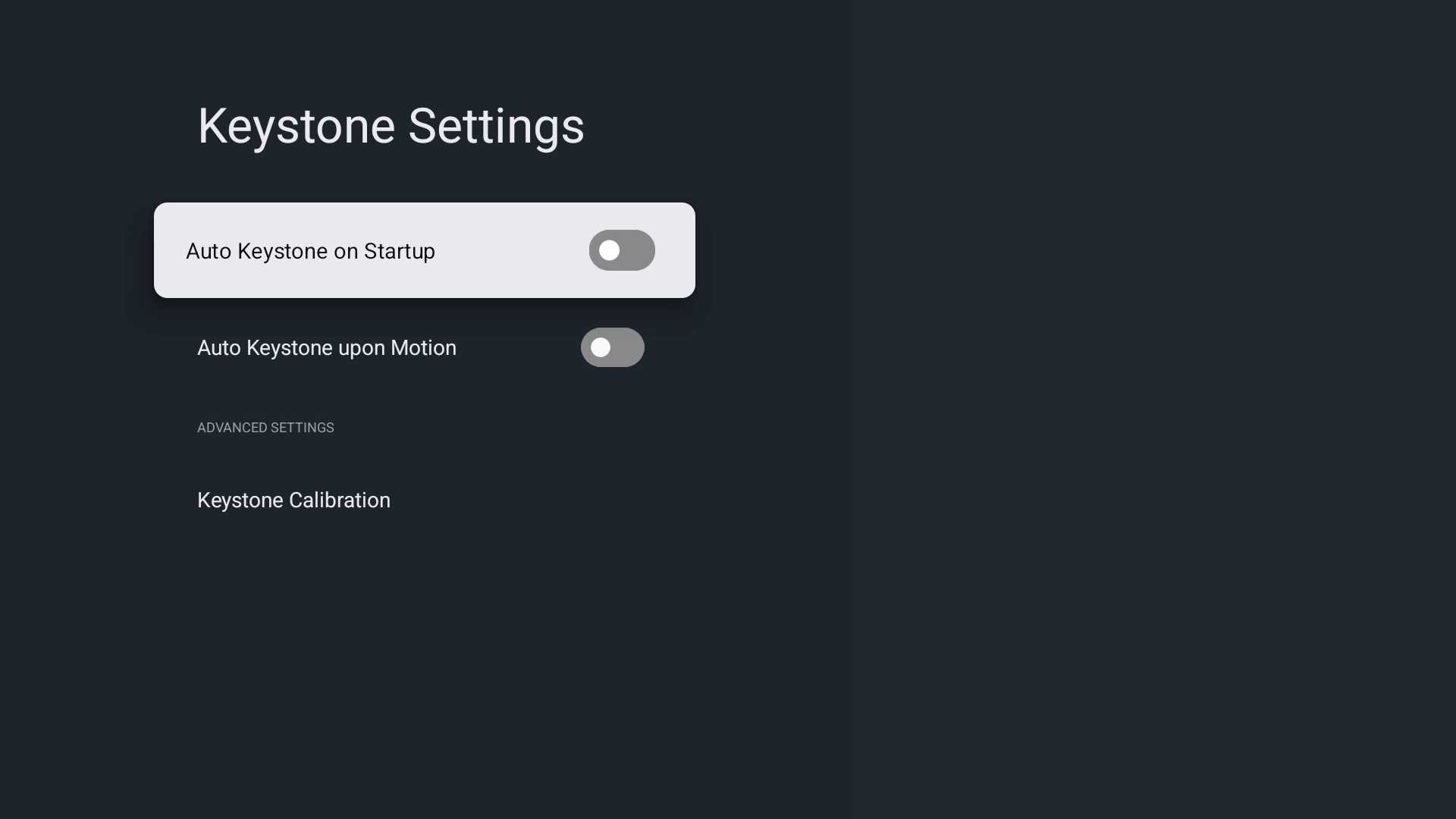

2. Disable Auto Keystone Upon Motion.
3. Place the projector:
- On a level table
- Approximately 20 cm (7.9 in) from a white wall
- Front-facing
- Not ceiling-mounted
4. Physically align the image into a perfect rectangle.
---
Calibration Steps

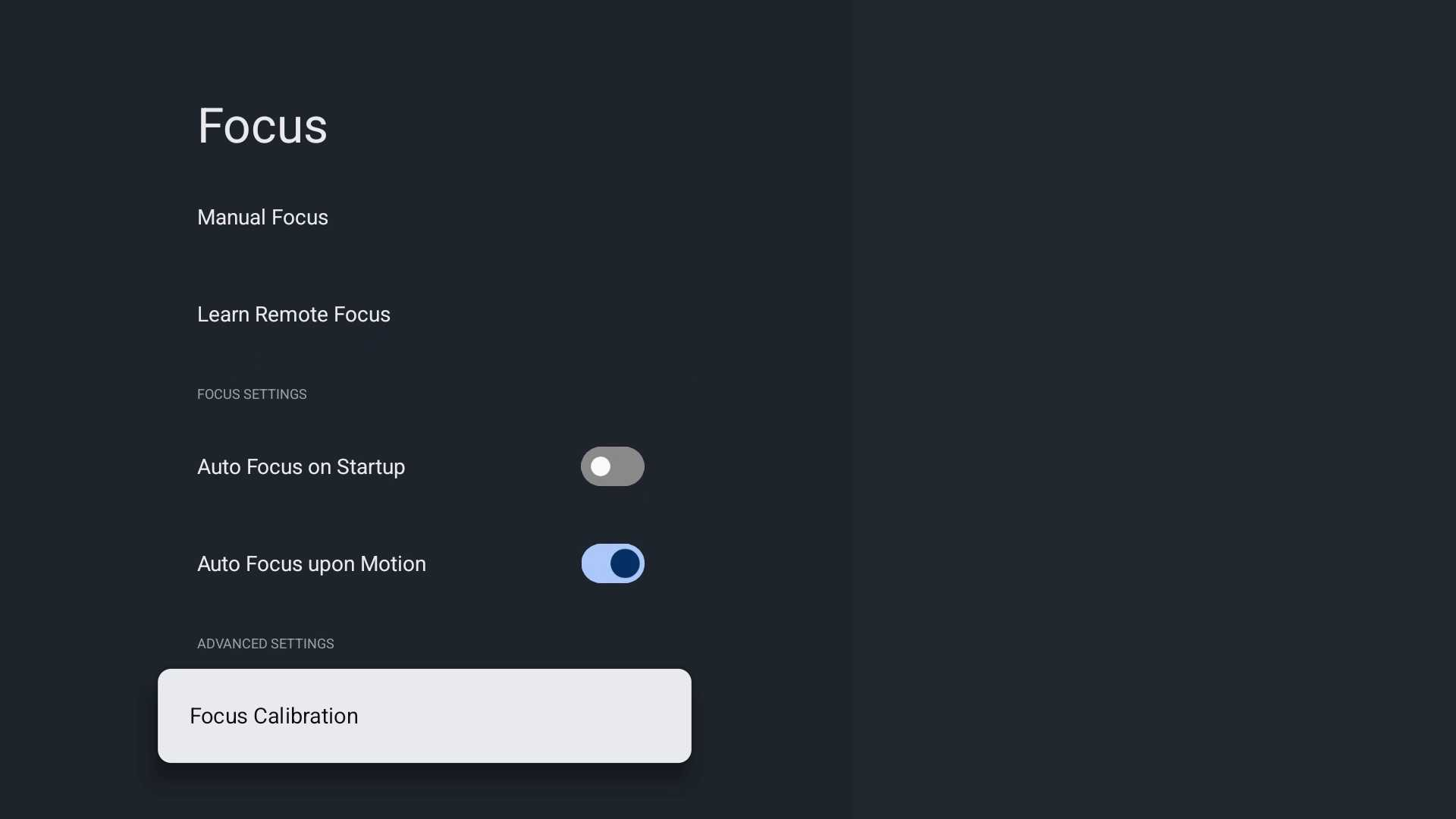

1. Navigate to: Projector > Focus

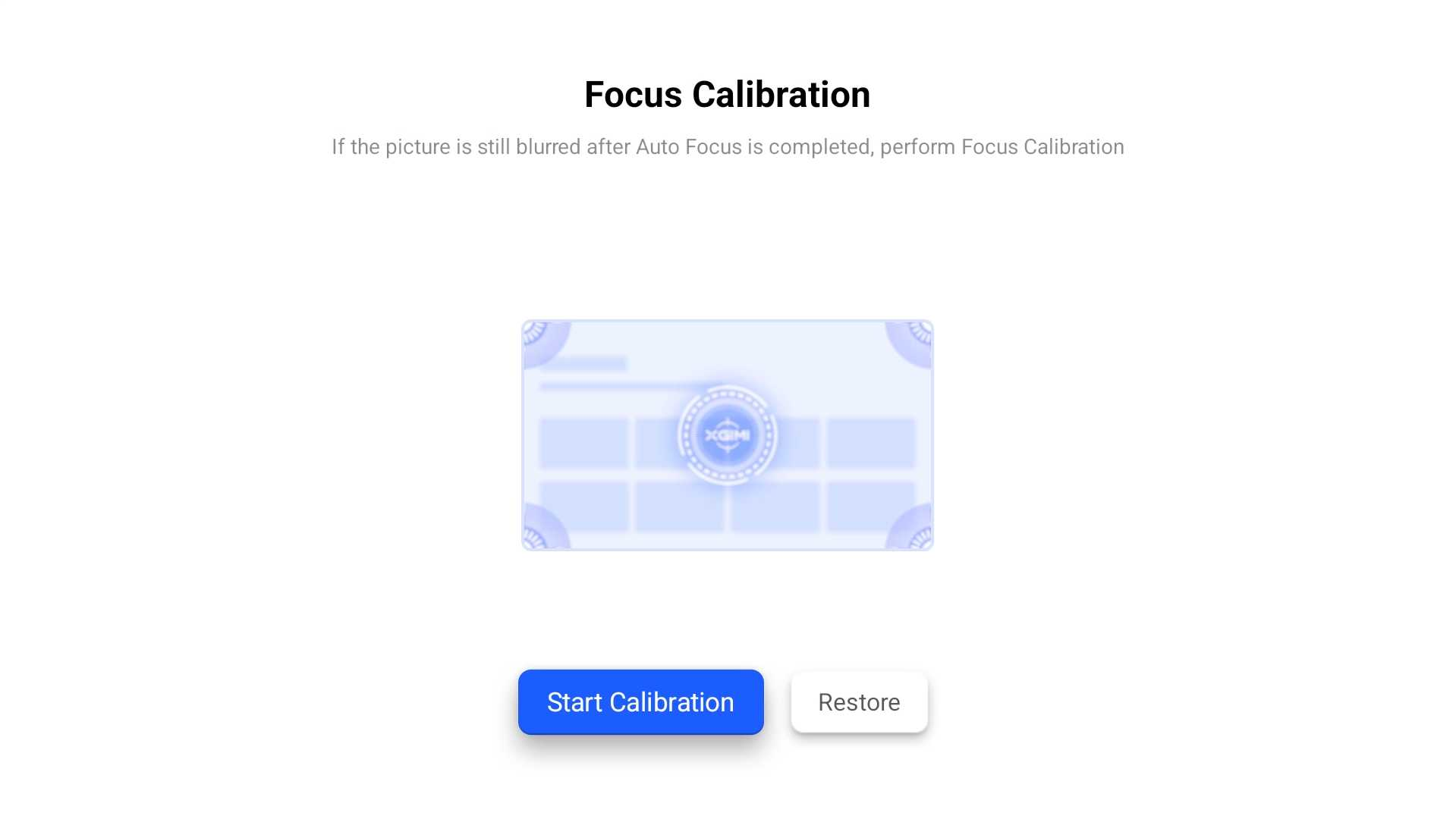

2. Select: Focus Calibration
3. Follow the on-screen instructions.
The calibration may be performed multiple times if necessary.
---
Important
Focus Calibration is a service and troubleshooting function, not a routine maintenance feature.
If Manual Focus cannot produce a sharp image, Focus Calibration will not resolve the issue.
