Manual Keystone Correction lets you adjust each corner of the image individually.

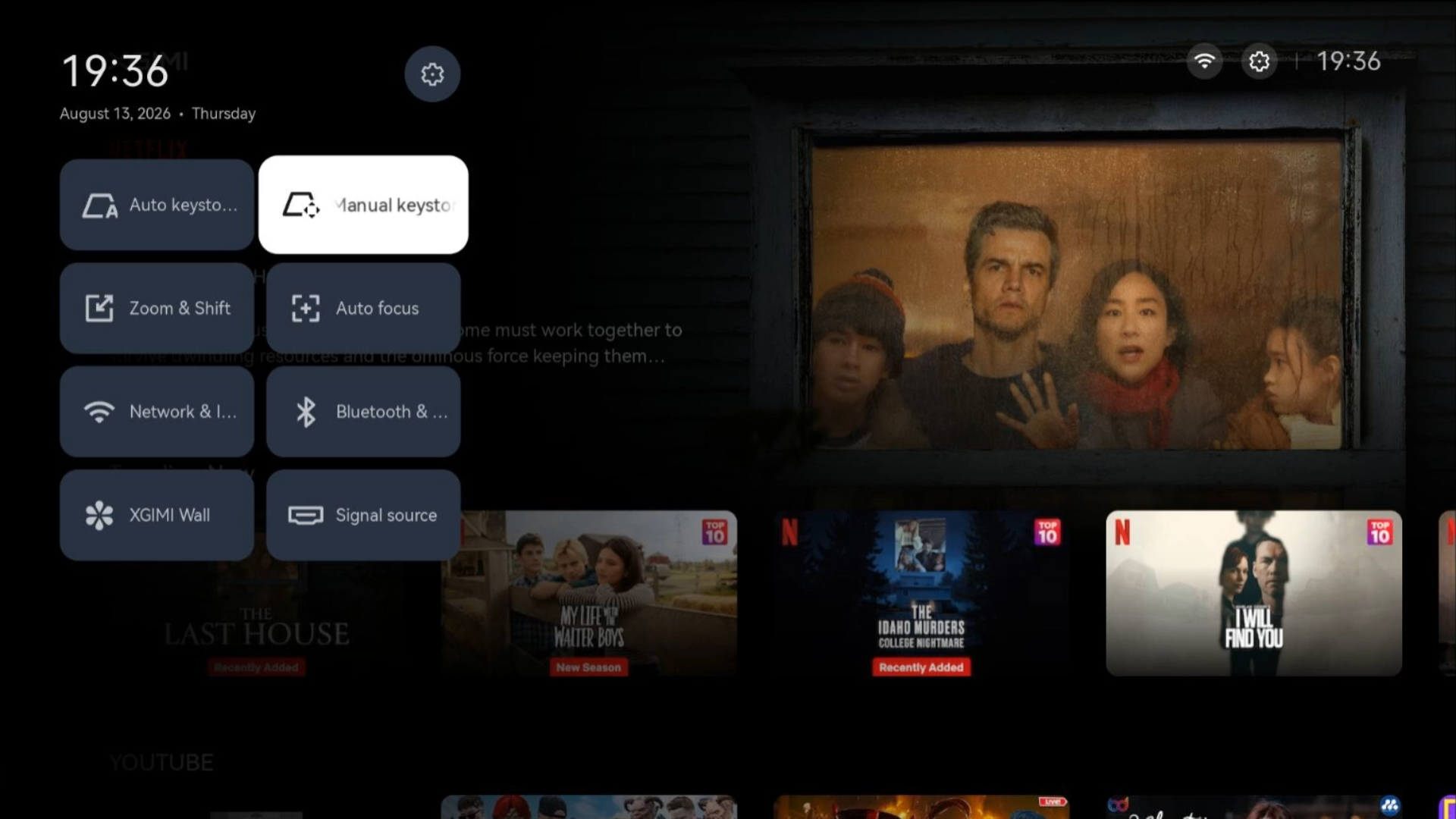

1. Press the Settings button on the remote to open Quick Settings, then select Manual Keystone Correction.

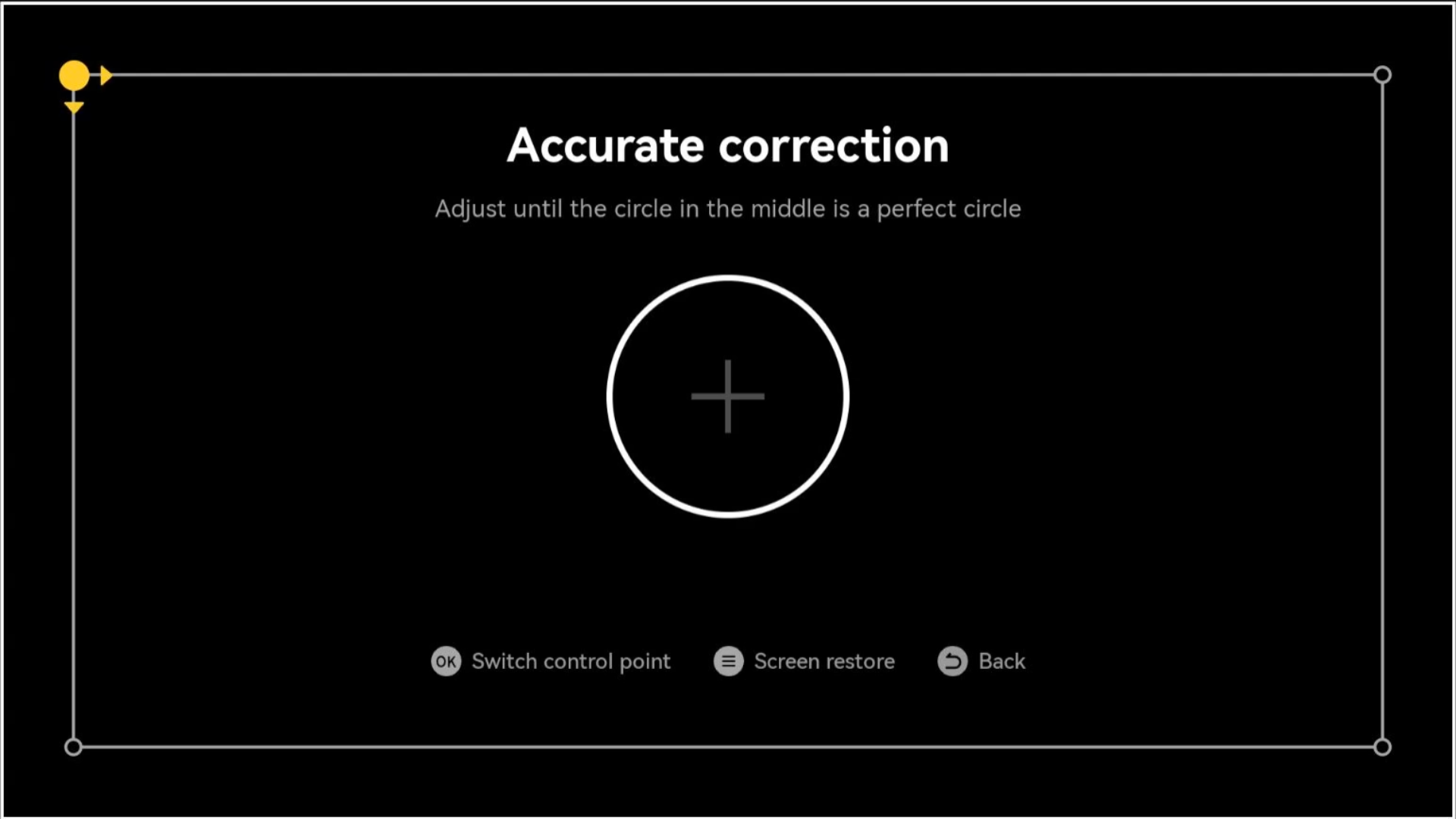

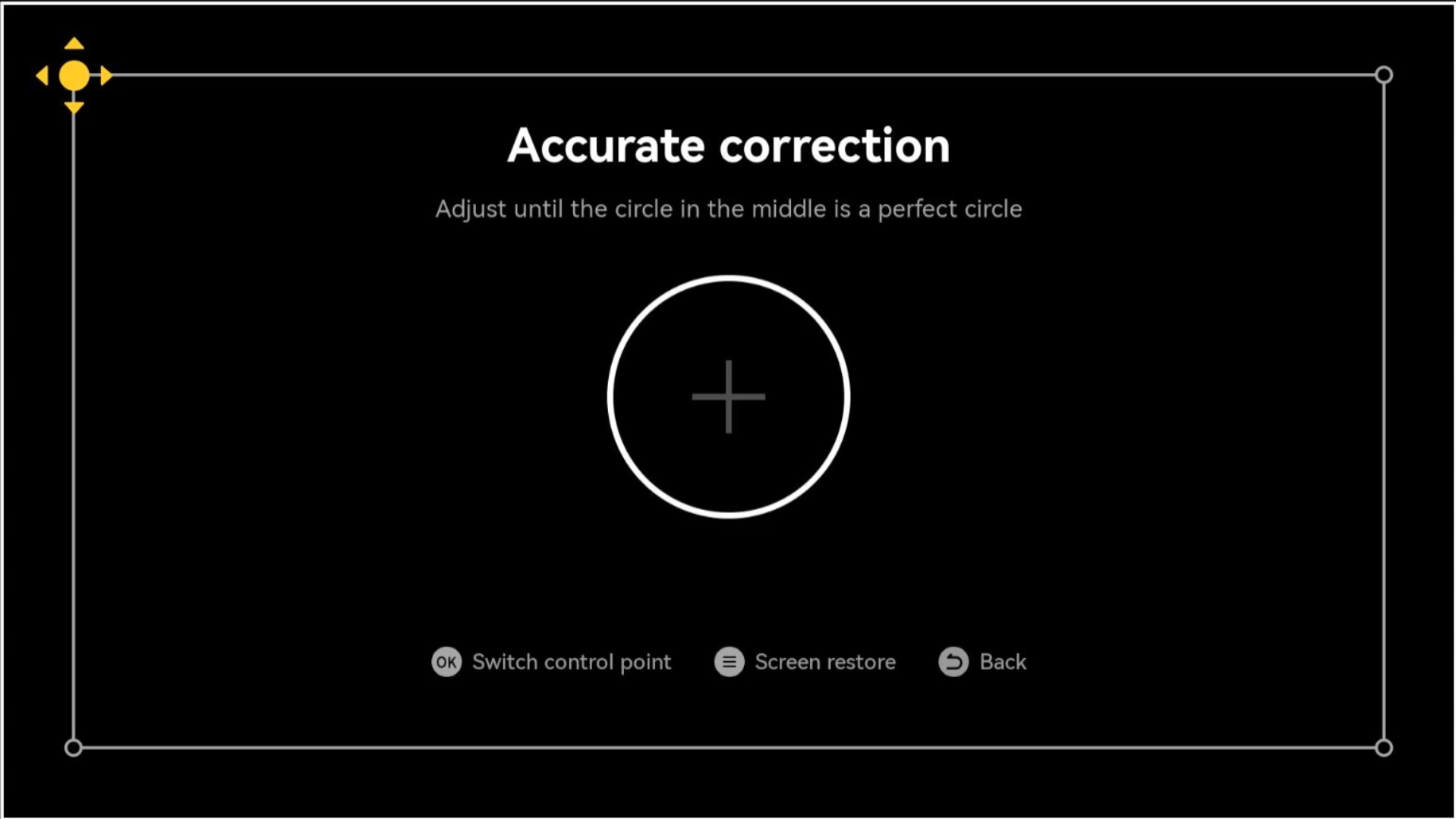

2. On the adjustment screen:
- Press OK to switch between the four control points.
- Use the directional buttons to move the selected corner.
Notes
- Corners can only be adjusted in the directions indicated by the on-screen arrows.
- If an arrow is grayed out or no longer appears, the adjustment limit has been reached.
If additional adjustment is required, reposition the projector physically.
Reference
- Keep the center reference circle as close to a perfect circle as possible.
- The projector uses a native 16:9 aspect ratio.
